| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | Asrock |
| Product Code | : | A320M-HDV |
| General Information | ||

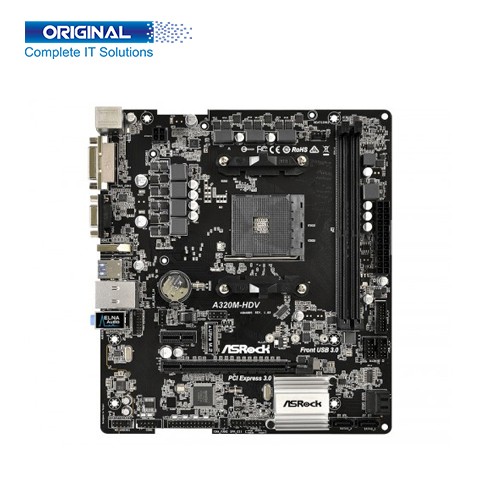

| Model | ASRock A320M-HDV |
|
| Brand | ASRock | |
| Supported Processor | AMD A-Series and Ryzen Series | |
| Chipset | AMD Promontory A320 | |
| Socket | AMD AM4 Socket | |
| Bios | - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment |
|
| Form Factor | - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm - Solid Capacitor design |
|
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 2 x DDR4 DIMM Slots | |
| Supported Bus Speed | AMD Ryzen DDR4 3200 / 2933 / 2667 / 2400 / 2133 | |
| Maximum Memory | 32GB | |
| Graphics Information | ||
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - Integrated AMD Radeon™ R-Series Graphics in A-series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) 1 x PCI Express 2.0 x1 Slot |
|
| Storage Information | ||
| M.2 | 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU) |
|
| SATA | 4 x SATA3 6.0 Gb/s Connectors | |
| RAID | Support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug | |
| Connector Information | ||
| Internal Connectors | - 1 x Print Port Header - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
|

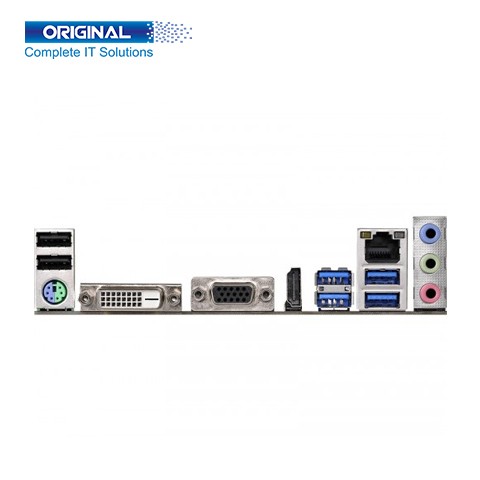

| Port Information | ||
| PS/2 Port | 1 x PS/2 Mouse/Keyboard Port |
|
| USB Port | - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD |
|
| HDMI Port | 1 x HDMI Port | |
| DVI-D Port | 1 x DVI-D Port | |
| D-SUB Port | 1 x D-Sub Port | |
| LAN Port | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
|
| Audio Port | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps |
|
| Operating System | ||
| Supported OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
The ASRock A320M-HDV DDR4 3rd Gen AM4 Socket Motherboard. ASRock Motherboard Model A320M-HDV, Motherboard Brand ASRock, This Motherboard Supported Processor AMD A-Series and Ryzen Series, ASRock Motherboard Chipset AMD Promontory A320, ASRock A320M-HDV Socket AMD AM4 Socket, ASRock Motherboard Micro ATX Form Factor, Motherboard Memory Types DDR4 and Dual Channel, Motherboard Memory 2 x DDR4 DIMM Slots, ASRock Motherboard Supported Bus Speed AMD Ryzen DDR4 3200 / 2933 / 2667 / 2400 / 2133, ASRock A320M-HDV Motherboard Maximum Memory 32 GB, ASRock Motherboard Expansion 1 x PCI Express 3.0 x16 Slot (PCIE2: x16,x8,x4 mode), 1 x PCI Express 2.0 x1 Slot, ASRock A320M-HDV Motherboard 1 x PS/2 Mouse/Keyboard Port, 2 x USB 2.0 Ports, 4 x USB 3.1 Gen1 Ports, 1 x HDMI Port, 1 x DVI-D Port, 1 x D-Sub Port, PCIE x1 Gigabit LAN 10/100/1000 Mb/s, 7.1 CH HD Audio, ASRock Motherboard Supported Windows 10 64-bit/11 64-bit, ASRock A320M-HDV Motherboard 03 Years Warranty.
