| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asrock |
| Product Code | : | B450 Steel Legend |
| General Information | ||
| Model | B450 Steel Legend | |
| Brand | ASRock | |
| Supported Processor | * Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
* Digi Power design
* 6 Power Phase design |
|
| Chipset | AMD Promontory B450 | |
| Socket | * AMD AM4 Socket
* Digi Power design
* 6 Power Phase design |
|
| Bios | * 128Mb AMI UEFI Legal BIOS with multilingual GUI support
* Supports "Plug and Play"
* ACPI 5.1 compliance wake up events
* Supports jumperfree
* SMBIOS 2.3 support
* DRAM Voltage multi-adjustment |
|
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM Slots | |
| Supported Bus Speed | * AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory.
* AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory.
* AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | -Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports |
|
| Expansion Slots | ||
| PCI | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode) AMD Ryzen series CPUs (Raven Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE1: x8 mode; PCIE4: x4 mode) (If you use Athlon 2xxGE series APU, PCIE1 slot will run at x4 mode.) AMD Athlon series CPUs - 2 x PCI Express 3.0 x16 Slots (PCIE1: x4 mode; PCIE4: x2 mode) - 4 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX |
|
| Storage Information | ||
| M.2 | 1 x Ultra M.2 Socket | |
| SATA | 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3) | |
| RAID | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* | |
| Connector Information | ||
| Internal Connectors | 1 x COM Port Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x AMD Fan LED Header*** - 1 x CPU Fan Connector (4-pin)**** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
|

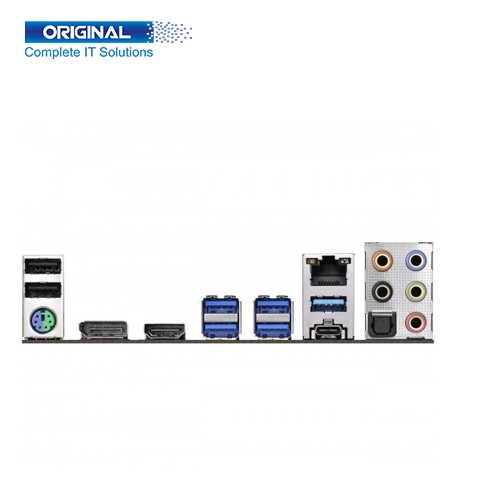

| Port Information | ||
| PS/2 Port | 1 x PS/2 Mouse/Keyboard Port | |
| USB Port | * 2 x USB 2.0 Ports (Supports ESD Protection)
* 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
* 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
* 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
| HDMI Port | 1 x HDMI Port | |
| Display Port | 1 x DisplayPort 1.2 | |
| LAN Port | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Audio Port | HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) | |
| Other Information | ||
| Special Features | ASRock USB 3.1 Gen2 - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
|
| Operating Systems | ||
| Supported OS | Microsoft® Windows® 10 64-bit / 11 64-bit | |
| Warranty | ||
| Warranty | 03 years Warranty | |

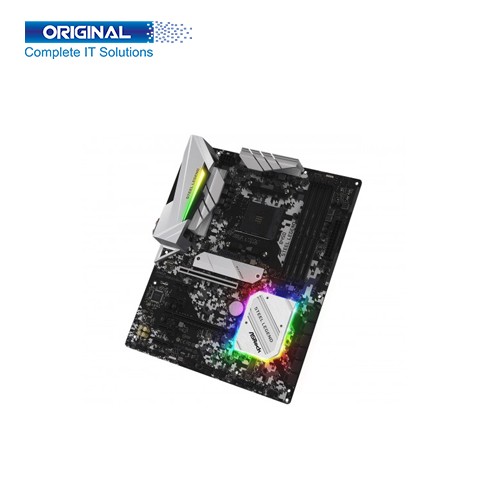

Asrock B450 Steel Legend DDR4 AMD AM4 Socket Motherboard. This series of motherboards are expertly engineered to unleash the full potential of Generation AMD processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, B450 Atx-videos daily users and firmware features.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asrock B450 Steel Legend DDR4 AMD AM4 Socket Motherboard Brand is ASRock, Supported Processor Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, Digi Power design,6 Power Phase design, Chipset AMD Promontory B450, Socket AMD AM4 Socket, Digi Power design,6 Power Phase design, Bios 128Mb AMI UEFI Legal BIOS with multilingual GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, DRAM Voltage multi-adjustment, Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, Memory Types DDR4, Channel Dual Channel, Slot 4 x DDR4 DIMM Slots Supported Bus Speed AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. You can get Asrock B450 Steel Legend DDR4 AMD AM4 Socket Motherboard at the best price in BD.AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. Asrock DDR4 AMD AM4 Socket Motherboard AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory, Maximum Memory 64GB,Graphics Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz,Supports DisplayPort 1.2 with max. Asrock B450 Steel Legend DDR4 Motherboard resolution up to 4K x 2K (4096x2160) @ 60Hz,Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required),Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports, Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports,M.2 1 x Ultra M.2 Socket, SATA 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3),RAID 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, PS/2 Port 1 x PS/2 Mouse/Keyboard Port USB Port 2 x USB 2.0 Ports (Supports ESD Protection),1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection),1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection),4 x USB 3.1 Gen1 Ports (Supports ESD Protection),HDMI Port 1 x HDMI Port, Display Port 1 x DisplayPort 1.2,LAN Port 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED),Audio Port HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks),Special Features ASRock USB 3.1 Gen2,ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s), ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s), ASRock Super Alloy XXL Aluminum Alloy Heatsink, Premium 60A Power Choke, Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors),I/O Armor, Sapphire Black PCB, High Density Glass Fabric PCB,2oz Copper PCB. The Supported OS Microsoft® Windows® 10 64-bit / 11 64-bit.Asrock B450 Steel Legend DDR4 AMD AM4 Socket Motherboard 03 years Warranty.
