| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asrock |
| Product Code | : | X299 Taichi |
| General Information | ||
| Model | ASRock X299 Taichi |
|
| Brand | Asrock | |
| Supported Processor | Supports Intel® Core™ X-Series Processor | |
| Chipset | Intel® X299 | |
| Socket | LGA 2066 | |
| Bios | - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 6.1 Compliant wake up events - SMBIOS 3.0 Support - CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB |
|
| Memory Information | ||
| Memory Types | DDR4 |
|
| Slot | 8 x DDR4 DIMM Slots | |
| Supported Bus Speed | Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory | |
| Maximum Memory | 256GB | |
| Expansion Slots | ||
| PCI | 4 x PCI Express 3.0 x16 Slots 1 x PCI Express 2.0 x1 Slot 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3) |
|
| Storage Information | ||
| M.2 | 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
|
| SATA | 8 x SATA3 6.0 Gb/s Connectors 2 x SATA3 6.0 Gb/s Connectors |
|
| RAID | Support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® | |
| Connector Information | ||
| Internal Connectors | - 1 x Virtual RAID On CPU Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin)***** - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 Hub) (Supports ESD Protection) - 1 x Dr. Debug with LED |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 Mouse/Keyboard Port |
|
| USB Port | - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) - 4 x USB 3.1 Gen1 Ports (Supports ESD |
|
| LAN Port | - Gigabit LAN 10/100/1000 Mb/s - 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Dual LAN with Teaming* - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
|
| Audio Port | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Supports Purity Sound™ 4 - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Supports DTS Connect |
|
| Antenna Port | 2 x Antenna Ports | |
| SPDIF Out Port | 1 x Optical SPDIF Out Port | |
| BIOS Flashback Switch | 1 x BIOS Flashback Switch | |
| Clear CMOS Switch | 1 x Clear CMOS Switch | |
| Operating Systems | ||
| Supported OS | Microsoft® Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 01 Year Warranty |
|

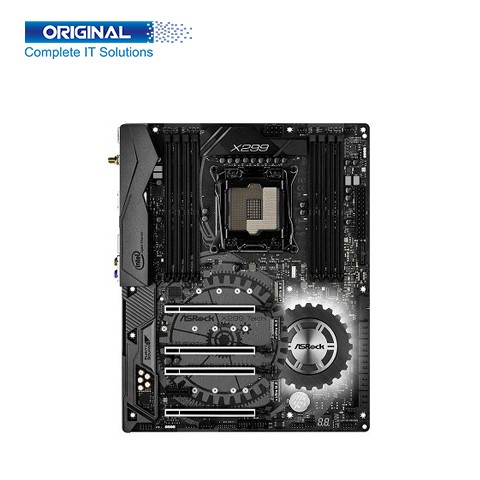

ASRock X299 Taichi Intel ATX Motherboard. It's delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its atx glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
ASRock X299 Taichi Intel ATX Motherboard. ASRock Motherboard Model X299 Taichi Motherboard Brand ASRock, This Motherboard Supported Processor Intel® Core™ X-Series, ASRock Motherboard Chipset Intel® X299 Taichi, ASRock X299 Taichi Socket LGA 2066, ASRock Motherboard ATX Form Factor, Motherboard Memory Types DDR4, Motherboard Memory 8 x DDR4 DIMM Slots, ASRock Motherboard Supported Bus Speed Supports DDR4 2666 / 2400 / 2133 MHz, ASRock X299 Taichi Motherboard Maximum Memory 256 GB. You can get ASRock X299 Taichi Intel ATX Motherboard at the best price in BD. ASRock Motherboard Expansion 4 x PCI Express 3.0 x16 Slots, 1 x PCI Express 2.0 x1 Slot, ASRock X299 Taichi Motherboard 1 x PS/2 Mouse/Keyboard Port, 2 x USB 2.0 Ports, 1 x USB 3.1 Gen2 Type-A Port, 1 x USB 3.1 Gen2 Type-C Port, 4 x USB 3.1 Gen1 Ports, Gigabit LAN 10/100/1000 Mb/s, 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), 2 x Antenna Ports, 1 x Optical SPDIF Out Port, 1 x BIOS Flashback Switch, 1 x Clear CMOS Switch, ASRock Motherboard Supported Windows 10 64-bit, ASRock X299 Taichi Motherboard 01 Years Warranty.
