| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asrock |
| Product Code | : | Z490 Extreme4 |
| General Information | ||
| Model | ASRock Z490 Extreme4 |
|
| Brand | ASRock | |
| Supported Processor | Supports 10th & 11 Gen Intel® Core™ Processors | |
| Chipset | Intel® Z490 | |
| Socket | LGA 1200 | |
| Bios | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
|
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM Slots | |
| Supported Bus Speed | Supports DDR4 4266+(OC)* / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports |
|
| Expansion Slots | ||
| PCI | - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)* - 3 x PCI Express 3.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| Storage Information | ||
| M.2 | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
|
| SATA | 6 x SATA3 6.0 Gb/s Connectors | |
| RAID | support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug | |
| Connector Information | ||
| Internal Connectors | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z490) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Intel® Z490) (Supports ESD Protection) |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 Mouse/Keyboard Port |
|
| USB Port | - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports (Intel® Z490) |
|
| HDMI Port | 1 x HDMI Port | |
| LAN Port | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
|
| Audio Port | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - 110dB SNR DAC with Differential Amplifier - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - Nahimic Audio |
|
| Antenna | 2 x Antenna Mounting Points | |
| Display Port | 1 x DisplayPort 1.4 | |
| Operating Systems | ||
| Supported OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

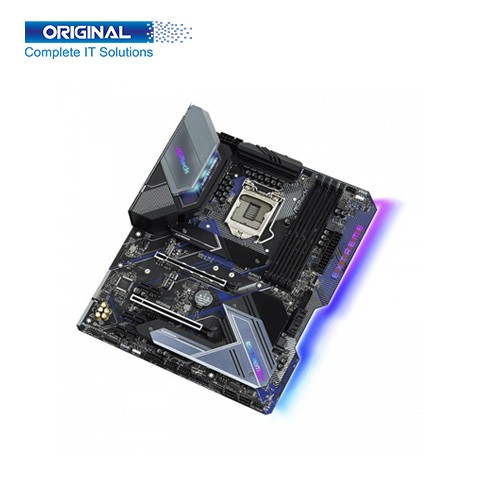

The ASRock Z490 Extreme4 10th Gen ATX Motherboard. ASRock Motherboard Model Z490 Extreme4, Motherboard Brand ASRock, This Motherboard Supported Processor 10th & 11 Gen Intel® Core™, ASRock Motherboard Chipset Intel® Z490, Z490 Extreme4 Motherboard Socket LGA 1200, ASRock Motherboard Form Factor ATX, The ASRock Z490 Extreme4 Memory DDR4 And Dual Channel, Motherboard Memory Slots 4 x DDR4 DIMM, Supported Bus Speed DDR4 2933/2800/2666/2400/2133 MHz, Supported Memory Up to 128 GB, ASRock Z490 Extreme4 Expansion Slots, This Motherboard Supported Storage M.2, SATA and Rapid Storage Technology, Z490 Extreme4 Supported 1 x PS/2 Mouse/Keyboard Port, 2 x USB 2.0 Ports, 1 x USB 3.2 Gen2 Type-A Port, 1 x USB 3.2 Gen2 Type-C Port, 2 x USB 3.2 Gen1 Ports, 1 x HDMI Port, 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), 2 x Antenna Mounting Points, 1 x DisplayPort 1.4 , ASRock Motherboard Supported Operating Systems Microsoft® Windows® 10 64-bit / 11 64-bit, ASRock Z490 Extreme4 Motherboard 03 Years Warranty.
