| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | Asrock |
| Product Code | : | Z590 |
| General Information | ||
| Model | Z590 | |
| Brand | ASRock | |
| Supported Processor | * Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) * Digi Power design * 14 Power Phase design * Supports Intel Turbo Boost Max 3.0 Technology * Supports Intel K-Series unlocked CPUs |
|
| Chipset | Intel Z590 | |
| Socket | LGA1200 | |
| Bios | * 128Mb AMI UEFI Legal BIOS with multilingual GUI support * ACPI 6.0 Compliant wake up events * SMBIOS 2.7 Support * CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment |
|
| Form Factor | * ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm * 2oz Copper PCB |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM Slots | |
| Supported Bus Speed | * 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC) * 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC) * Supports ECC UDIMM memory modules (operate in non-ECC mode) * Supports Intel Extreme Memory Profile (XMP) 2.0 * 15μ Gold Contact in DIMM Slots |
|
| Maximum Memory | Max. capacity of system memory: 128GB | |
| Graphics Information | ||
| Graphics | - 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1 | |
| Storage Information | ||
| M.2 | 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4) 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3) |
|
| SATA | 6 x SATA3 6.0 Gb/s Connectors | |
| RAID | * Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices * Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Connector Information | ||
| Internal Connectors | - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) - 1 x Power Button with LED - 1 x Reset Button with LED |
|
| Port Information | ||

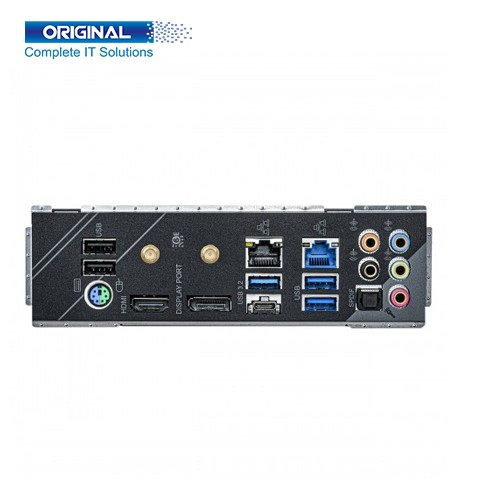

| USB Port | * 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) * 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) * 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) * 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| HDMI Port | 1 x HDMI Port | |
| Display Port | 1 x DisplayPort 1.4 | |
| LAN Port | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) * Supports Dragon 2.5G LAN Software * Smart Auto Adjust Bandwidth Control * Visual User Friendly UI * Visual Network Usage Statistics * Optimized Default Setting for Game, Browser, and Streaming Modes * User Customized Priority Control * Supports Wake-On-LAN * Supports Lightning/ESD Protection * Supports Energy Efficient Ethernet 802.3az * Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V) * Supports Wake-On-LAN * Supports Lightning/ESD Protection * Supports Energy Efficient Ethernet 802.3az * Supports PXE |
|
| Audio Port | * 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) * Premium Blu-ray Audio support * Supports Surge Protection * Pure Power-In * Direct Drive Technology * PCB Isolate Shielding * Impedance Sensing on Rear Out port * Individual PCB Layers for R/L Audio Channel * Gold Audio Jacks * 15μ Gold Audio Connector * Nahimic Audio |
|
| Other Information | ||
| Special Features | Wireless LAN: - Intel 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO |
|
| Operating Systems | ||
| Supported OS | Microsoft® Windows® 10 64-bit / 11 64-bit | |
| Warranty | ||
| Warranty | 03 years warranty | |

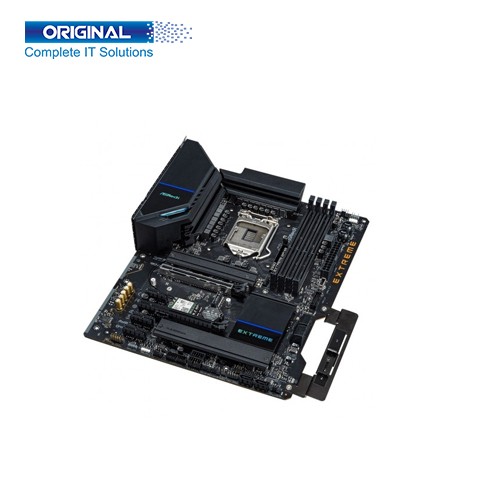

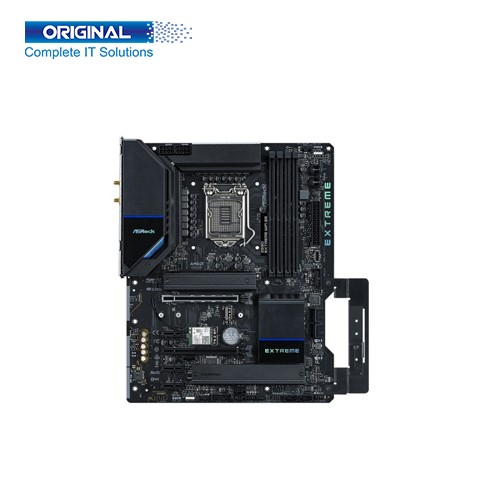

This ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard. This series of motherboards are expertly engineered to unleash the full potential of 10th Generation Intel microprocessors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, Z590 mAtx-videos daily users and firmware features.
ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard Brand ASRock, Supported Processor Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200),Digi Power design,14 Power Phase design, Supports Intel Turbo Boost Max 3.0 Technology, Supports Intel K-Series unlocked CPUs, Chipset Intel Z590,Socket LGA1200,Bios 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support, CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment, Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm,2oz Copper PCB, Memory Types DDR4,Channel Dual Channel, Slot 4 x DDR4 DIMM Slots, Supported Bus Speed 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC),10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC),Supports ECC UDIMM memory modules (operate in non-ECC mode),Supports Intel Extreme Memory Profile (XMP) 2.0,15μ Gold Contact in DIMM Slots, Maximum Memory Max. capacity of system memory: 128GB, Graphics 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics, Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1, Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc, Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers, Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz,Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz,Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required),Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports, PCI 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1,M.2 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4),2 x Ultra M.2 (PCIe Gen3 x4 & SATA3),SATA 6 x SATA3 6.0 Gb/s Connectors, RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices, USB Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection),1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection),2 x USB 3.2 Gen1 Ports (Supports ESD Protection),2 x USB 2.0 Ports (Supports ESD Protection),HDMI Port 1 x HDMI Port, Display Port 1 x DisplayPort 1.4,Special Features Wireless LAN: Intel 802.11ax Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ax, Supports Dual-Band 2x2 160MHz with extended 6GHz band support,2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.2 + High speed class II, Supports MU-MIMO, Supported OS Microsoft® Windows® 10 64-bit / 11 64-bit.ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard 03 years warranty.
