| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asrock |
| Product Code | : | Z690 Steel Legend |
| General Information | ||

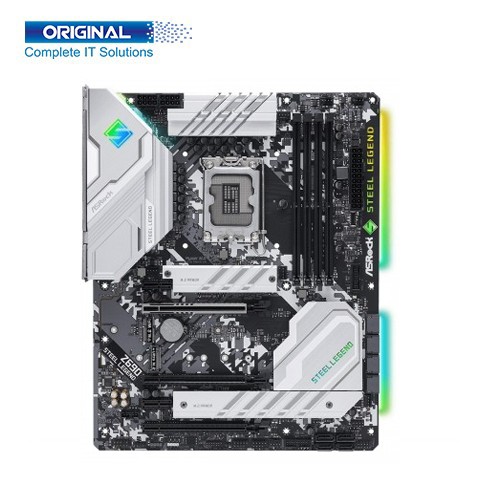

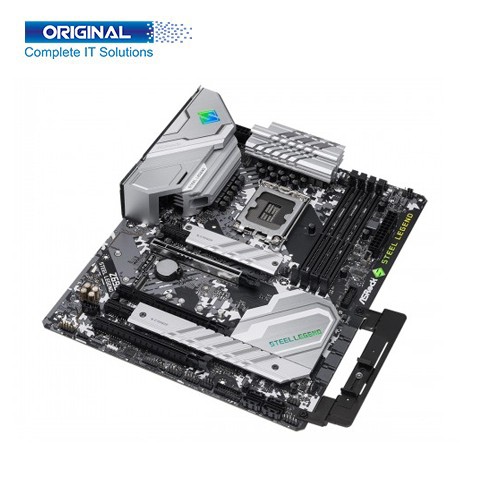

| Model | ASRock Z690 Steel Legend | |
| Brand | ASRock | |
| Supported Processor | Supports 13th and 12th Gen Intel Core Processors | |
| Chipset | - Intel Z690 | |
| Socket | LGA1700 | |
| BIOS | - 256Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | - 4 x DDR4 DIMM Slots | |
| Supported Bus Speed | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode) |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE5), supports x4 mode* - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE2) |
|
| Storage Information | ||
| M.2 | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode* |
|
| SATA | - 8 x SATA3 6.0 Gb/s Connectors** | |
| RAID | - Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices |
|
| Connector Information | ||
| Internal Connectors | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) |
|
| Port Information | ||
| PS/2 Port | - 1 x PS/2 Mouse/Keyboard Port | |
| HDMI Port | - 1 x HDMI Port | |
| USB Port | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
| Display Port | - 1 x DisplayPort 1.4 | |
| LAN Port | - 1 x RJ-45 LAN Port | |
| Audio Port | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
|
| Antenna | - 2 x Antenna Ports | |
| Flashback Button | - 1 x BIOS Flashback Button | |
| SPDIF Out Port | - 1 x Optical SPDIF Out Port | |
| Others Information | ||
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version) | |
| Operating Systems | ||
| Supported OS | - Microsoft Windows 10 64-bit / 11 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty | |
ASRock Z690 Steel Legend 12th Gen ATX Motherboard. Compares to a conventional DIP-style PCIe slot. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, and Motherboard is ready to unleash the full potential of future high-end graphic cards.
ASRock Z690 Steel Legend 12th Gen ATX Motherboard. The Model is ASRock Z690 Steel Legend, Brand ASRock,Supported Processor Supports 13th and 12th Gen Intel Core Processors, Chipset - Intel Z690, Socket LGA1700, BIOS - 256Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake up events, - SMBIOS 2.7 Support, - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment, Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, - 2oz Copper PCB, Memory Types DDR4, Channel Dual Channel, Slot - 4 x DDR4 DIMM Slots, Supported Bus Speed - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*, - Supports ECC UDIMM memory modules (operate in non-ECC mode), Maximum Memory 128GB,Graphics - Intel® Xe Graphics Architecture (Gen 12), - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers, - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz, - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports, PCI CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*, Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*, - 1 x PCIe 3.0 x16 Slot (PCIE5), supports x4 mode*, - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT), - Supports AMD CrossFire, - 15μ Gold Contact in VGA PCIe Slot (PCIE2), M.2 CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type , 242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode*, SATA - 8 x SATA3 6.0 Gb/s Connectors**, RAID - Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, - Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices. It is PS/2 Port- 1 x PS/2 Mouse/Keyboard Port, HDMI Port - 1 x HDMI Port, USB Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection), - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), Display Port - 1 x DisplayPort 1.4, LAN Port - 1 x RJ-45 LAN Port, Audio Port - 7.1 CH HD Audio (Realtek ALC897 Audio Codec), - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks), Antenna - 2 x Antenna Ports, Alashback Button - 1 x BIOS Flashback Button, SPDIF Out Port - 1 x Optical SPDIF Out Port. The ASRock Z690 Steel Legend 12th Gen ATX Motherboard has a 03 Years Warranty.
