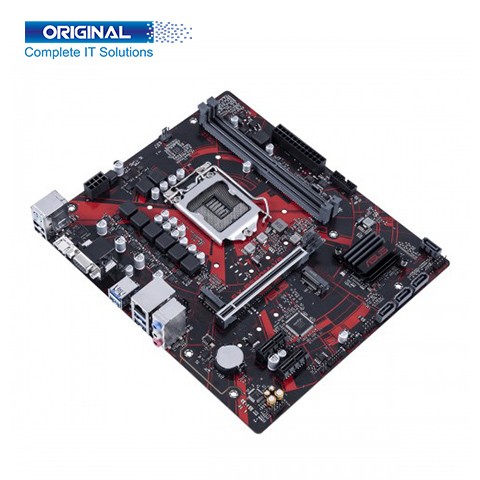

ASUS Expedition EX-B560M-V5 Intel Micro ATX Motherboard

Price :           To be announced
Status :           Up Comming
Brand :           Asus
Product Code :           EX-B560M-V5

Short Details:

  • • Model: EX-B560M-V5
  • • Socket: LGA1200
  • • Form Factor: microATX; 24.4cm x 21.1cm
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

EX-B560M-V5

Brand ASUS
Supported Processor Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors
Chipset Intel B560
Socket LGA1200
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX; 24.4cm x 21.1cm
Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 2 x DIMM
Supported Bus Speed

Support for DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/

4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/

3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory

Max Memory Size 64 GB
Graphics Information
Graphics

1 x D-Sub

1 x HDMI 1.4 / 2.

Expansion Slots
PCI

* Intel® 11th &10th   Gen Processors

1 x PCIe 4.0/3.0 x16 slot

- Intel® 11th Gen processors support PCIe 4.0 x16

- Intel® 10th Gen processors support PCIe 3.0 x16


* Intel® B560 Chipset

2 x PCIe 3.0 x1 slots

Storage Information
M.2

2 x M.2 slots

SATA 4 x SATA 6Gb/s ports
Connector Information
Internal Connectors

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header


Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector


Storage related

2x M.2 slot (Key M)

4 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Speaker header

1 x 10-1 pin System Panel header

Port Information
PS/2 Port

1 x PS/2 Keyboard/Mouse combo port

USB Port

Rear USB (Total 6 ports)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers supports additional 4 USB 2.0 ports

HDMI Port 1 x HDMITM port
D-Sub Port 1 x D-Sub port
LAN Port 1 x Realtek 1Gb Ethernet port
Audio Jack 3 x Audio jacks
Operating System
Supported OS

Windows® 10 - 64 bit

Warranty
Warranty

3 Years Warranty

Description:


ASUS Expedition EX-B560M-V5 Intel Micro ATX Motherboard


ASUS Expedition EX-B560M-V5 Intel Micro ATX Motherboard With more cores’ processors, thermal and power design is more critical to ensure the temperature keeps lower. Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus Expedition EX-B560M-V5 Motherboard.


ASUS Expedition EX-B560M-V5 Intel Micro ATX Motherboard. Support for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors. Intel® B560 Chipset. Socket LGA1200. Form Factor microATX; 24.4cm x 21.1cm. Asus EX-B560M-V5 Memory Types DDR4, Dual-Channel. Slot 2 x DIMM. Max Memory Size is 64 GB. Graphics is 1 x D-Sub, 1 x HDMI 1.4 / 2. PCI is Intel® 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot, - Intel® 11th Gen processors support PCIe 4.0 x16, - Intel® 10th Gen processors support PCIe 3.0 x16, Intel® B560 Chipset: 2 x PCIe 3.0 x1 slots. Storage is 2 x M.2 slots, 4 x SATA 6Gb/s ports. PS/2 Port is 1 x PS/2 Keyboard/Mouse combo port, USB Port is Rear USB (Total 6 ports): 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 6 ports): 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 port, 2 x USB 2.0 headers supports additional 4 USB 2.0 ports, D-Sub Port is 1 x D-Sub port, HDMI Port is 1 x HDMI™ port, LAN Port is 1 x Realtek 1Gb Ethernet port, Audio Port is 3 x Audio jacks. Supported Operating System Support for Windows® 10 - 64 bit. ASUS Expedition EX-B560M-V5 Intel Micro ATX Motherboard has Three years warranty.
