| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | H81M-CS |
| General Information | ||
| Model | H81M-CS |
|
| Brand | Asus | |
| Supported Processor | 4th Generation Intel Celeron/Pentium®/Core i3/i5/i7 Processors | |
| Chipset | Intel® H81 | |
| Socket | LGA1150 | |
| Bios | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information | |
| Form Factor | uATX Form Factor, 7.5 inch x 7.0 inch ( 19 cm x 17.7 cm ) | |
| Memory Information | ||
| Memory Types | DDR3 |
|
| Channel | Dual Channel | |
| Slot | 2 x DIMM | |
| Supported Bus Speed | 1600/1333/1066 MHz | |
| Maximum Memory | 16GB | |
| Graphics Information | ||
| Graphics | * Integrated Graphics Processor - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz * Maximum shared memory of 1024 MB (for iGPU exclusively) |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 2.0 x16 * 1 x PCIe 2.0 x1 |
|
| Storage Information | ||
| SATA | * 2 x SATA 6Gb/s port(s), yellow, * 2 x SATA 3Gb/s port(s), dark brown, * Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1 |
|
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) (1 x 4 -pin) * 1 x Chassis Fan connector(s) (1 x 4 -pin) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x TPM header * 1 x LPT header * 1 x COM port(s) connector(s) * 2 x SATA 6Gb/s connector(s) * 2 x SATA 3Gb/s connector(s) * 1 x 24-pin EATX Power connector(s) * 1 x 4-pin ATX 12V Power connector(s) * 1 x Front panel connector(s) * 1 x Front panel audio connector(s) (AAFP) * 1 x Internal speaker connector(s) * 1 x Chassis Intrusion connector(s) |
|
| Port Information | ||
| PS/2 Port | * 1 x PS/2 keyboard (purple) * 1 x PS/2 mouse (green) |
|
| USB Port | * 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) * 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
|
| D-Sub Port | 1 x D-Sub | |
| LAN Port | Realtek® 8111GR, 1 x Gigabit LAN Controller(s) | |
| Audio Port | * Realtek ALC887/897 8-Channel High Definition Audio CODEC *2 - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
|
| Operating System | ||
| Supported OS | Windows® 8.1, 8, 7 |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

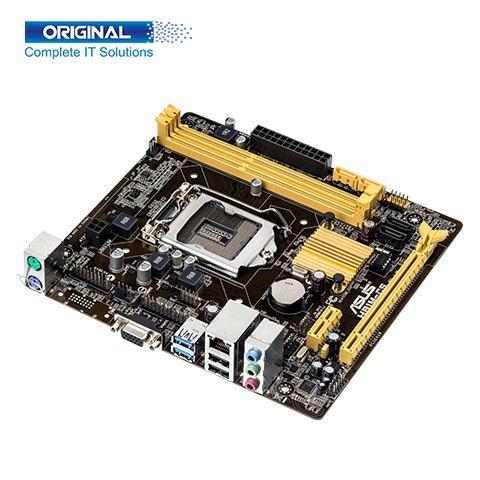

Asus H81M-CS motherboard gives you the strong foundation you expect in your first form, in addition to the versatility of developing with your aspirations. We've put together all the cool stuff with basic planning and design in the latest 4th Generation Intel Celeron/ Pentium/ Core i3/ i5/ i7 Processors support, so you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus H81M-CS motherboard comes with Socket LGA1150 for Chipset Intel H81 4th Generation Intel Celeron/Pentium®/Core i3/i5/i7 Processors 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI 2.0a, Multi-language BIOS, SM BIOS 2.7, Also in this H81H-CS motherboard ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information uATX Form Factor, 7.5 inch x 7.0 inch (19 cm x 17.7 cm). Dual Channel 2 x DIMM Maximum Memory 16GB, Supported Bus Speed 1600/ 1333/ 1066 MHz. In this Asus H81M-CS motherboard, Integrated Graphics Processor, Supports RGB with max. resolution 1920 x 1200 @ 60 Hz, Maximum shared memory of 1024 MB (for iGPU exclusively). Expansion Slots are 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1. For storage functions are 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1. Also in this motherboard, Internal Connectors are 1 x 24-pin EATX Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x COM port(s) connector(s), 1 x TPM header, 1 x LPT header, 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue), 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board), Asus H81M-CS motherboard has Realtek® 8111GR, 1 x Gigabit LAN Controller(s), Realtek ALC887/897 8-Channel High Definition Audio CODEC *2, Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback.
Asus H81M-CS motherboard OS Support for Windows® 8.1, 8, 7. You can enjoy a 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance at any side of Bangladesh.
