| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Prime A520M-A |
| General Information | ||

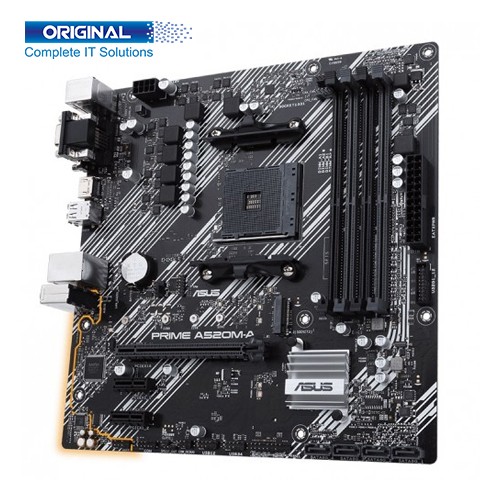

| Model | Asus Prime A520M-A |
|
| Brand | Asus | |
| Supported Processor | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | AMD A520 | |
| Socket | AM4 | |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 4800 /4600 /4466 /4400 /4266 /4133 /4000 /3866 /3733 /3600 /3466 /3333(O.C.) /3200 /3000 /2800 /2666 /2400 /2133 MHz | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * 1 x D-Sub * 1 x DVI-D * 1 x HDMI 2.1(4K@60HZ) |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0 x16 (x16 mode) * 2 x PCIe 3.0 x1 |
|
| Storage Information | ||
| M.2 | 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
|
| SATA | 4 x SATA 6Gb/s port(s), | |
| RAID | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) * 1 x SPI TPM header * 4 x SATA 6Gb/s connector(s) * 1 x S/PDIF out header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin EATX 12V Power connectors * 1 x Front panel audio connector(s) (AAFP) * 1 x Clear CMOS jumper(s) * 1 x System panel connector * 1 x COM port header |
|

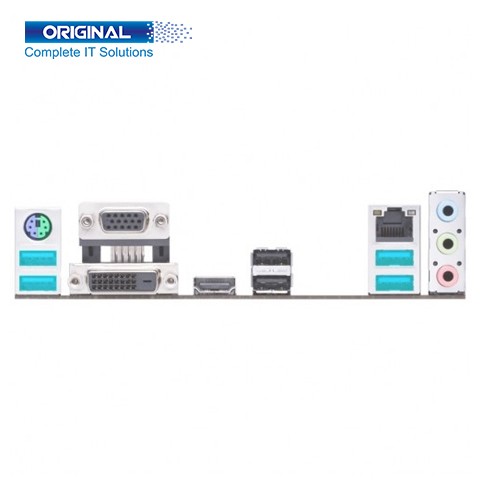

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse combo port(s) |
|
| USB Port | * 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) * 2 x USB 2.0 port(s)(2 x Type-A) * 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) * 4 x USB 2.0 port(s)(4 x Type-A) |
|
| HDMI Port | 1 x HDMI | |
| DVI-D Port | 1 x DVI-D | |
| D-SUB Port | 1 x D-Sub | |
| LAN Port | * Realtek RTL8111H 1Gb Ethernet * ASUS LANGuard |
|
| Audio Port | * Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
|
| Operating System | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
Asus Prime A520M-A motherboard gives you the strong foundation you expect in your first form, in addition to the versatility of developing with your aspirations. We've put together all the cool stuff with basic planning and design in the latest Build-in AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors support, so you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus Prime A520M-A Motherboard comes with AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors, AM4 Socket, Build in AMD A520 Chipset with 256 Mb Flash ROM, UEFI AMI BIOS, 24.4 cm x 24.4 cm ATX Form Factor. In this A520M-A Motherboard Maximum 128GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 4800 /4600 /4466 /4400 /4266 /4133 /4000 /3866 /3733 /3600 /3466 /3333(O.C.) /3200 /3000 /2800 /2666 /2400 /2133 MHz. Asus Prime A520M-A AMD Motherboard with standard Graphics such as 1 x D-Sub, 1 x HDMI 2.1 (4K@60HZ). Here Asus A520M-A Motherboard Expansion PCI slot is 1 x PCIe 3.0/4.0 x 16 slots, 4 x SATA 6 GB/s,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCI-E 3.0 x4 and SATA modes) storage devices support, Supported Raid 0, 1, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, 1 x SPI TPM header, 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x 8-pin EATX 12V Power connectors, 1 x S/PDIF out header(s), etc. Asus Prime A520M-A Motherboard has Realtek RTL8111H 1Gb Ethernet Lan port with this motherboard ASUS LANGuard, Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC. This Asus Prime A520M-A Motherboard has some special features like ASUS Exclusive Software.
Asus Prime A520M-A Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance at any side of Bangladesh.
