| Special Price | : | ৳10,250 |
| Regular Price(EMI) | : | ৳10,950 |
| Status | : | In Stock |
| Brand | : | Asus |
| Product Code | : | H510M-K |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | Asus Prime H510M-K | |
| Brand | Asus | |
| Supported Processor | * Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
* Supports Intel 14 nm CPU
* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H510 | |
| Socket | LGA1200 | |
| Form Factor | microATX: 22.6cm x 20.3cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 2x DDR4 memory slots | |
| Supported Bus Speed | * 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. |
|
| Maximum Memory | Max. 64GB | |
| Graphics Information | ||
| Graphics | * 1 x D-Sub * 1 x HDMI 1.4 / 2.0 |
|
| Expansion Slots | ||
| PCI | * Intel® 11th & 10th Gen Processors * 1 x PCIe 4.0/3.0 x16 slot * Intel® 11th Gen processors support PCIe 4.0 x16 * Intel® 10th Gen processors support PCIe 3.0 x16 * Intel® H510 Chipset * 1 x PCIe 3.0 x1 slot | |
| Storage Information | ||
| M.2 | M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports | |
| SATA | The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used. | |
| Connector Information | ||
| Internal Connectors | * Fan and Cooling related * 1 x 4-pin CPU Fan header * 1 x 4-pin Chassis Fan header * Power related * 1 x 24-pin Main Power connector * 1 x 8-pin +12V Power connector * Storage related * 1 x M.2 slot (Key M) * 4 x SATA 6Gb/s ports * USB * 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports * 1 x USB 2.0 header supports additional 2 USB 2.0 ports * Miscellaneous * 1 x RGB header * 1 x Clear CMOS header * 1 x COM Port header * 1 x Front Panel Audio header (AAFP) * 1 x S/PDIF Out header * 1 x Speaker header * 1 x SPI TPM header (14-1pin) * 1 x 10-1 pin System Panel header |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 Keyboard/Mouse combo port | |
| USB Port | * 2 x USB 3.2 Gen 1 ports (2 x Type-A)
* 4 x USB 2.0 ports (4 x Type-A) |
|
| HDMI Port | 1 x HDMI™ port | |
| Display Port | 1 x D-Sub port | |
| LAN Port | 1 x Intel® I219-V 1Gb Ethernet port | |
| Audio Port | 3 x Audio jacks | |
| Others Information | ||
| Others | * ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O * ASUS Q-Design - Q-DIMM - Q-Slot * ASUS Thermal Solution - Aluminum heatsink design * ASUS Lighting Control - RGB header |
|
| Operating Systems | ||
| Supported OS | Windows 10 64bit | |
| Warranty | ||
| Warranty | 03 Years | |

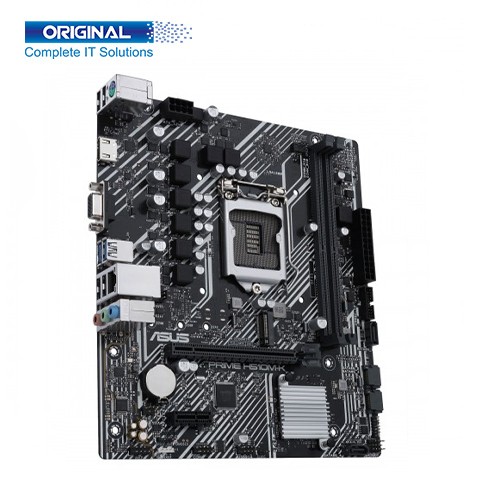

Asus Prime H510M-K Intel 10th & 11th Gen Micro-ATX Motherboard. Asus Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel microprocessors. They are boasting a robust power design, comprehensive cooling solutions, intelligent tuning options, PRIME H510M-K micro-videos daily users, and firmware features.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus Prime H510M-K Intel 10th & 11th Gen Micro-ATX Motherboard comes with standard Brand Asus for Supported Processor * Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors, * Supports Intel 14 nm CPU, * Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. It is Chipset Intel H510, Socket LGA1200, Form Factor microATX: 22.6cm x 20.3cm, Memory Types DDR4 Channel Dual-Channel, Slot 2x DDR4 memory slots, Supported Bus Speed, * 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*, * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz, * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively, Maximum Memory Max. 64GB, Graphics, * 1 x D-Sub, * 1 x HDMI 1.4 / 2.0,PCI * Intel® 11th & 10th Gen Processors * 1 x PCIe 4.0/3.0 x16 slot * Intel® 11th Gen processors support PCIe 4.0 x16 * Intel® 10th Gen processors support PCIe 3.0 x16 * Intel® H510 Chipset * 1 x PCIe 3.0 x1 slot, M.2 M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports, SATA The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used. This is PS/2 Port 1 x PS/2 Keyboard/Mouse combo port, USB Port, * 2 x USB 3.2 Gen 1 ports (2 x Type-A), * 4 x USB 2.0 ports (4 x Type-A), HDMI Port 1 x HDMI™ port, Display Port 1 x D-Sub port, LAN Port 1 x Intel® I219-V 1Gb Ethernet port, Audio Port 3 x Audio jacks. This Asus Asus Prime H510M-K Motherboard Support for Windows 10 64-bit. Asus Prime H510M-K Intel 10th & 11th Gen Micro-ATX Motherboard has a 03 Years Warranty.
