| Special Price | : | ৳11,850 |
| Regular Price(EMI) | : | ৳12,900 |
| Status | : | In Stock |
| Brand | : | Asus |
| Product Code | : | PRIME H610M-K D4 |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | PRIME H610M-K D4 |
|
| Brand | ASUS | |
| Supported Processor | Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel® H610 Chipset | |
| Socket | LGA1700 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 2 x DIMM | |
| Supported Bus Speed | Support for DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory | |
| Maximum Memory | 64 GB | |
| Graphics Information | ||
| Graphics | 1 x D-Sub port (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Expansion Slots | ||
| PCI | * Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot * Intel® H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| Storage Information | ||
| M.2 | 1 x M.2 slot |
|
| SATA | 4 x SATA 6Gb/s ports | |
| Connector Information | ||
| Internal Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 Keyboard/Mouse combo port |
|

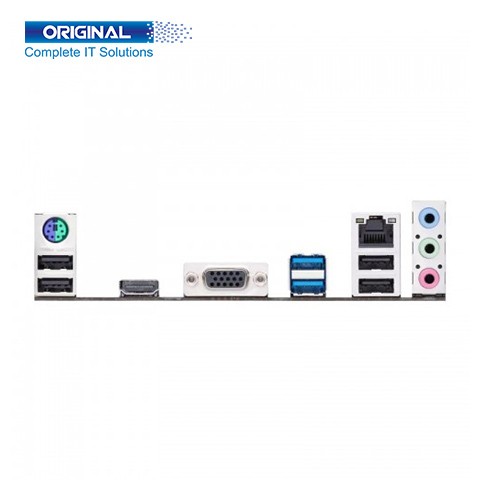

| USB Port | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports an additional 2 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI® port | |
| D-Sub Port | 1 x D-Sub port | |
| LAN Port | 1 x Realtek 1Gb Ethernet | |
| Audio Jack | 3 x Audio jacks | |
| Operating System | ||
| Supported OS | Windows® 11 64-bit, Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

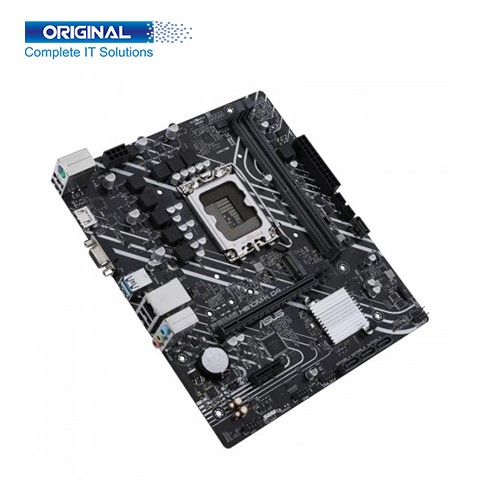

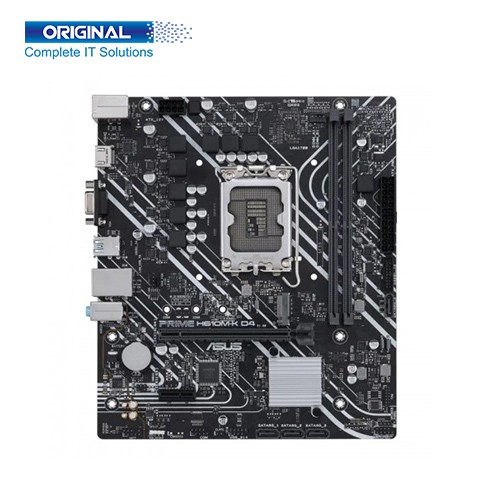

ASUS PRIME H610M-K D4 12th Gen mATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus PRIME H610M-K D4 Motherboard.
ASUS PRIME H610M-K D4 12th Gen mATX Motherboard. Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Intel® H610 Chipset. Socket LGA1700. Form Factor mATX 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ). Asus PRIME H610M-K D4 Memory Types DDR4, Dual-Channel. Slot 2 x DIMM. Support for DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory, Maximum Memory 64 GB. Graphics is 1 x D-Sub port (Supports max. 4K@60Hz as specified in DisplayPort 1.4), and 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1). PCI is Intel® 13th & 12th Gen Processors: 1 x PCIe 4.0 x16 slot, Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot. Storage is 2 x M.2 slots, 4 x SATA 6Gb/s ports. PS/2 Port is 1 x PS/2 Keyboard/Mouse combo port, USB Port is Rear USB (Total 6 ports): 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 4 ports): 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports an additional 2 USB 2.0 ports, D-Sub Port is 1 x D-Sub port, HDMI Port is 1 x HDMI port, LAN Port is 1 x Realtek 1Gb Ethernet, Audio Port is 3 x Audio jacks. Supported Operating System Support for Windows® 11, and Windows® 10 64-bit. ASUS PRIME H610M-K D4 12th Gen mATX Motherboard has Three years warranty.
