| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Z490M-Plus |
| General Information | ||
| Model | Asus Prime Z490M-Plus | |
| Supported Processor | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel® Z490 | |
| Socket | 1200 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.6-inch x 9.6 inch | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3400/ 3333/ 3300/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/2133 MHz | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * 1 x DisplayPort 1.4 ** * 1 x HDMI 1.4b * 1 x DVI-D * Graphics specifications may vary between CPU types. * Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0 x16 (x16 mode) *1 * 1 x PCIe 3.0 x16 (x4 mode) * 2 x PCIe 3.0 x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support
* 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support |
|
| SATA | 5 x SATA 6Gb/s port(s) | |
| RAID | Support Raid 0, 1, 5, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) * 3 x Chassis Fan connector(s) * 1 x AIO_PUMP connector * 1 x Lighting Control RGB Strip Header(s) * 2 x USB 3.2 Gen 1(up to 5Gbps) * 2 x USB 2.0 connector(s) * 1 x M.2 Socket 3 with M key * 1 x M.2 Socket 3 with M key * 1 x SPI TPM header * 5 x SATA 6Gb/s connector(s) * 1 x S/PDIF out header(s) * 1 x 4-pin EATX 12 V Power connector * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin EATX 12V Power connectors * 1 x Front panel audio connector(s) (AAFP) * 1 x Clear CMOS jumper(s) * 1 x System panel connector * 1 x COM port header |
|
| Port Information | ||
| PS/2 Por | 1 x PS/2 keyboard/mouse combo port(s) | |
| USB Port | * 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
* 2 x USB 3.2 Gen 1 Type-A
* 2 x USB 2.0 |
|
| HDMI Port | 1 x HDMI | |
| DVI-D Port | 1 x DVI-D | |
| LAN Port | * Intel® I219-V 1Gb Ethernet
* 1 x LAN (RJ45) port(s) |
|
| Audio Port | 3 x Audio jack(s) | |
| Display Port | 1 x DisplayPort | |
| Operating System | ||
| Supported OS | Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

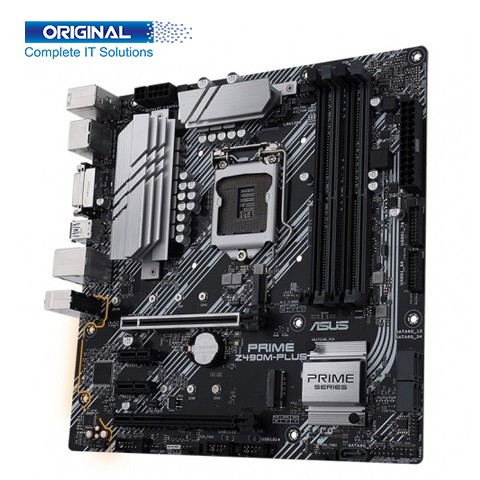

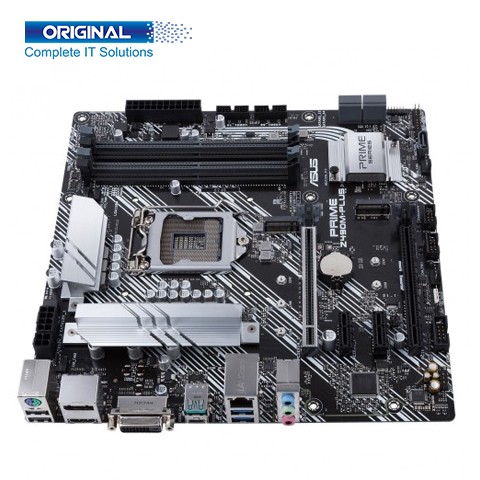

Asus Prime Z490M-Plus motherboards provide the solid foundation needed for your first build, plus elasticity to grow with your ambitions. We have melded all the good stuff that is packed into the latest Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors with necessary ASUS design and engineering, so you advantage from industry-leading technologies, including automated system tuning, extensive cooling controls, and immersive onboard audio. When you build with an Asus Prime Z490M-Plus motherboard, you build smart, simple, and affordably.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus Prime Z490M-Plus Motherboard comes with 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Intel Z490 Chipset with 128 Mb Flash ROM, UEFI AMI BIOS, 24.4 cm x 24.4 cm ATX Form Factor and Intel LGA1200 socket. Asus Prime Z490M-Plus Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3400/ 3333/ 3300/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/2133 MHz. Asus Prime Z490M-Plus Motherboard comes with standard Graphics such as Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. This Asus Prime Z490M-Plus Motherboard Expansion PCI Slots is 1 x PCIe 3.0 x 16 slots, 5 x SATA 6 GB/s, 2 M.2 Socket 3, 1 x M.2_1 socket 3 and 1 x M.2_2 socket 3, Supports RAID 0, 1, 5, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. Prime Z490M-Plus Asus Motherboard has BLUETOOTH 5.1 function will be ready in Windows 10 build 19041 or later. and 1 x ASUS Wi-Fi Module, 4 USB 3.2 Gen 1, 4 USB 2.0 ports, 1x Display Port, 3 x Audio jack(s), Intel I219-V 1Gb Ethernet LAN port(s), etc many others.
Asus Prime Z490M-Plus Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh
