| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | Asus |
| Product Code | : | PROART B550-CREATOR |
| General Information | ||
| Model | PROART B550-CREATOR |
|
| Brand | Asus | |
| Supported Processor | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | B550 | |
| Socket | AM4 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4866(O.C)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory AMD Ryzen 4000 G-Series Processors 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory |
|
| Max Memory Size | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x HDMI 2.1 (4K@60Hz) 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/ 1.4 and Thunderbolt video outputs |
|
| Expansion Slots | ||
| PCI | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8) AMD RyzenTM 4000 G-Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8) AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | 2 x M.2 slots |
|
| SATA | 4 x SATA 6Gb/s ports | |
| RAID | Supports RAID 0, 1, 10 | |
| Connector Information | ||
| Connector Information | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header |
|

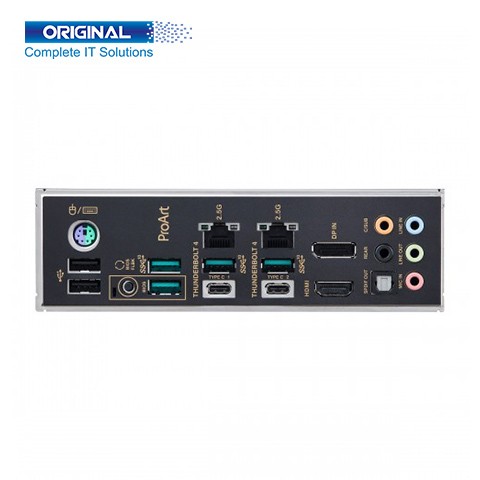

| Port Information | ||
| PS/2 Port | 1 x PS/2 Keyboard/Mouse combo port |
|
| USB Port | Rear USB (Total 8 ports) 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI™ port | |
| Display Port | 1 x DisplayPort (Input only) | |
| LAN Port | 2 x Intel® I225-V 2.5Gb Ethernet ports | |
| Audio Jack | 5 x Audio jacks 1 x Optical S/PDIF out port |
|
| BIOS button | 1 x BIOS FlashBack™ button | |
| Operating System | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

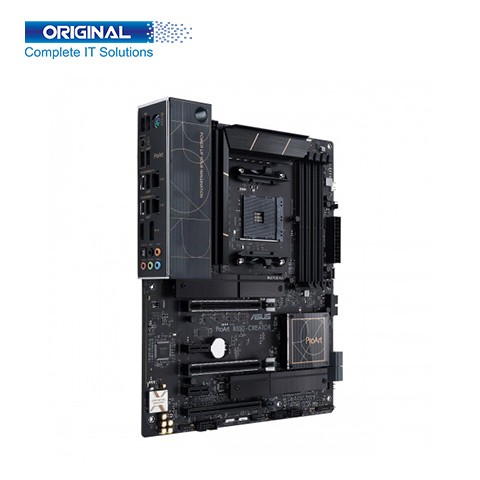

Asus PROART B550-CREATOR motherboard gives you the strong foundation you expect in your first form and the versatility of developing with your aspirations. We've put together all the cool stuff with essential planning and design in the latest AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series support so that you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
Asus PROART B550-CREATOR AM4 AMD ATX Motherboard comes with AMD AM4 Socket for AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series, 256 Mb Flash ROM, UEFI AMI BIOS, ATX; 30.5cm x 24.4cm, Chipset AMD B550, Dual Channel 4 x DIMM DDR4 Maximum Memory 128GB, Supported Bus Speed 5100(O.C)/ 4800(O.C.)/ 4866(O.C)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory, Maximum Memory is 128 GB. Graphics is 1 x HDMI 2.1 (4K@60Hz), 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/ 1.4, and Thunderbolt video outputs. PCI is AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: 2 x PCIe 4.0 x16 (x16 or dual x8), AMD RyzenTM 4000 G-Series Processor: 2 x PCIe 3.0 x16 (x16 or dual x8), AMD B550 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots. Storage is 2 x M.2 slots, 4 x SATA 6Gb/s ports. PS/2 Port is 1 x PS/2 Keyboard/Mouse combo port, USB Port is Rear USB (Total 8 ports): 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support, 4 x USB 3.2 Gen 2 port(s) (4 x Type-A), 2 x USB 2.0 port(s) (2 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 port, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Display Port is 1 x DisplayPort (Input only), HDMI Port is 1 x HDMI™ port, LAN Port is 2 x Intel® I225-V 2.5Gb Ethernet ports, Audio Port is 5 x Audio jacks, 1 x Optical S/PDIF out port. Supported Operating System Support for Windows® 10 - 64 bit. Asus PROART B550-CREATOR AM4 AMD ATX Motherboard has Three years warranty.
