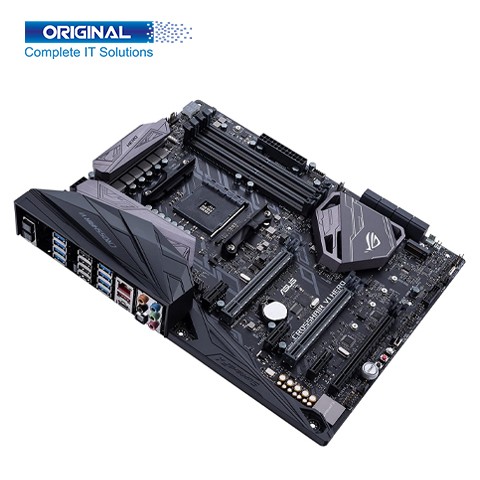

ASUS ROG CROSSHAIR VI HERO AMD AM4 Motherboard

Price :           To be announced
Status :           Up Comming
Brand :           Asus
Product Code :           ROG CROSSHAIR VI HERO

Short Details:

  • • Model: ROG CROSSHAIR VI
  • • Chipset: AMD X370
  • • Form Factor: ATX Form Factor 12 inch x 9.6 inch ( cm x cm )
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model ROG CROSSHAIR VI
Brand ASUS
Supported Processor AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/Ryzen™ with Radeon™ Vega Graphics/7th Generation A-series/Athlon X4 Processors
Chipset AMD X370
Socket AM4
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor ATX Form Factor 12 inch x 9.6 inch ( cm x cm )
Memory Information
Memory Types DDR4
Channel Dual-Channel
Slot 4 x DIMM
Supported Bus Speed 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz
Maximum Memory 128GB
Graphics Information
Graphics

* Supports NVIDIA® 2-Way SLI™ Technology *3

* Supports AMD CrossFireX™ Technology

Expansion Slots
PCI

* 1 x PCIe 2.0 x16 (max at x4 mode) *1

* 3 x PCIe 2.0 x1

* 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)

* 1 x PCIe 3.0/2.0 x16 (x8 mode)

Storage Information
M.2

* 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support

* 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support

SATA 8 x SATA 6Gb/s port(s),
RAID Support Raid 0, 1, 10
Connector Information
Internal Connectors

* 1 x 4-pin EATX 12V_1 Power connector(s)

* 1 x ROG extension (ROG_EXT) header(s)

* 2 x 3D Mount screw port(s)

* 1 x 8-pin EATX 12V Power connector

* 1 x USB 3.1 Gen 2 front panel connector

* 2 x Aura RGB Strip Header(s)

* 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s)

* 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

* 1 x M.2 Socket 3 with M key

* 8 x SATA 6Gb/s connector(s)

* 1 x CPU Fan connector(s)

* 1 x CPU OPT Fan connector(s)

* 3 x Chassis Fan connector(s)

* 1 x W_PUMP+ connector

* 1 x AIO_PUMP connector

* 1 x 24-pin EATX Power connector(s)

* 1 x Front panel audio connector(s) (AAFP)

* 1 x Slow Mode switch(es)

* 1 x Thermal sensor connector(s)

* 1 x Reset button(s)

* 1 x LN2 Mode jumper(s)

* 1 x Safe Boot button

* 1 x ReTry button

* 1 x System panel connector

* 1 x W_IN header

* 1 x W_OUT header

* 1 x W_FLOW header

* 1 x Start button

Port Information
USB Port

* 1 x USB 3.2 Gen 2 (black)USB Type-CTM,

* 1 x USB 3.2 Gen 2 (red)Type-A

* 4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)

* 1 x USB BIOS FlashBack™ Button(s)

* 8 x USB 3.2 Gen 1 (blue)

LAN Port

* ROG GameFirst IV

* 1 x LAN (RJ45) port(s)

Audio Port 5 x Gold-plated audio jacks
Wi-Fi Slot 1 x M.2 Wi-Fi Slot
Clear CMOS Button 1 x Clear CMOS button(s)
Other Information
Special Features

BIOS FlashBack™

Loadline Calibration

- One-click Overclocking

- DirectKey

KeyBot II

- ClrCMOS

- Power On

- NexFET™ Power Block MOSFET

ROG RAMDisk

ROG RAMCache II

- O.C. Profile

Clear CMOS button

ROG CloneDrive

Slow Mode

ReTry Button

Safe Boot Button

LN2 Mode

GameFirst IV

Mem TweakIt

ROG CPU-Z

Overwolf

Start Button

Reset Button

ROG Aura

Extreme Engine Digi+ :

- MicroFine Alloy Chokes

- 10K Black Metallic Capacitors

UEFI BIOS features :

- Tweakers´ Paradise

- ROG SSD Secure Erase

- Graphic Card Information Preview

Extreme Tweaker



ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :

- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

TPU

Gamer´s Guardian:

- SafeSlot

ASUS Exclusive Features :

- AI Suite 3

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS Q-Design :

- ASUS Q-Shield

- ASUS Q-Code

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-DIMM

- ASUS Q-Connector

Operating System
Supported OS Windows® 10 64-bit
Warranty
Warranty 03 Years

Description:


ASUS ROG CROSSHAIR VI HERO AMD AM4 ATX Motherboard



ASUS ROG CROSSHAIR VI HERO motherboards provide the solid foundation needed for your first build, plus elasticity to grow with your ambitions. We have melded all the good stuff that is packed into the latest Build in AMD AM4 Socket for AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/Ryzen™ with Radeon™ Vega Graphics/7th Generation A-series/Athlon X4 Processors with the necessary design and engineering, so you advantage from industry-leading technologies, extensive cooling controls, including automated system tuning, and immersive onboard audio.


This ASUS ROG CROSSHAIR VI Motherboard comes with 3rd/2nd/1st Gen AMD Ryzen/Ryzen with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors AM4 Socket, Build in AMD X370 Chipset with 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3,  F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, 12-inch x 9.6-inch ATX Form Factor. ASUS ROG CROSSHAIR VI HERO Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz. ASUS ROG CROSSHAIR VI Motherboard comes with standard Graphics such as Supports NVIDIA® 2-Way SLI™ Technology, Supports AMD CrossFireX™ Technology,  Expansion PCI Slots is 1 x PCIe 3.0/4.0 x 16 slots, 2 x SATA 6 GB/s, 8 x SATA 6 GB/s, 1 x M.2_2 socket 3, Supported Raid 0, 1, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support, etc. ROG CROSSHAIR VI ASUS Motherboard has ROG GameFirst IV, 1 x LAN (RJ45) port(s), 2 USB 3.2 Gen 1, 2 USB 2.0 ports, 5 x Gold-plated audio jacks. ASUS ROG CROSSHAIR VI Motherboard has some special features like ASUS Exclusive Software.

This ASUS ROG CROSSHAIR VI Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty and buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
