| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | Rog Crosshair X570 VIII Formula |
| General Information | ||
| Model | Rog Crosshair X570 VIII Formula | |
| Brand | Asus | |
| Supported Processor | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors | |
| Chipset | AMD X570 | |
| Socket | AM4 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 | |
| Form Factor | ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 3rd Gen AMD Ryzen Processors 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory 2nd Gen AMD Ryzen Processors 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory ECC Memory (ECC mode) support varies by CPU |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Supports AMD 2-Way CrossFireX Technology |
|
| Expansion Slots | ||
| PCI | 2 x PCIe 4.0 x16 (x16 or dual x8) AMD X570 chipset 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x8 mode) |
|
| Storage Information | ||
| M.2 | 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCI-E 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support |
|
| SATA | 8 x SATA 6Gb/s port(s) | |
| Raid | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connector | 1 x PCH_FAN2 x Addressable Gen 2 header(s)1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCI-E mode)1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCI-E mode)1 x USB 3.2 Gen 2 (up to 10Gbps) connector2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports1 x Node Connector(s)1 x Thermal sensor connector2 x Aura RGB Strip Header(s)1 x W_PUMP+ connector1 x Speaker connector1 x Optional Fan connector(s)1 x LN2 Mode header(s)8 x SATA 6Gb/s connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Power-on button(s)1 x Reset button(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x H_AMP fan connector1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x Slow Mode switch(es)1 x Safe Boot button1 x ReTry button1 x System panel connector1 x W_IN header1 x W_OUT header1 x W_FLOW header |
|

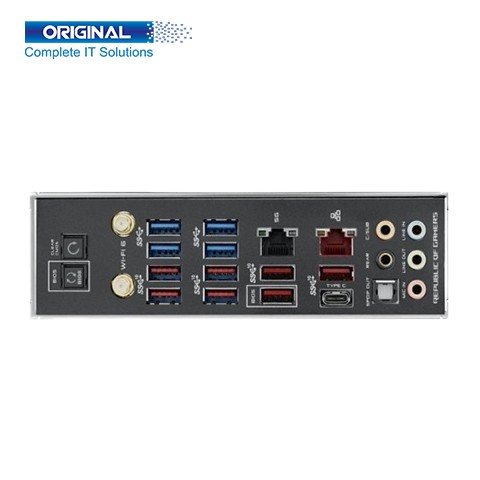

| Port Information | ||
| USB Port | 3rd Gen AMD RyzenTM Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A) 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C) 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board) 4 x USB 2.0 port(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports |
|
| LAN Port | 1 x AQC-111C 5G LAN port Anti-surge LAN (RJ45) port |
|
| Audio Jack | 1 x Gold-plated audio jacks | |
| Flash Back Button | 1 x USB BIOS FlashBack™ Button(s) |
|
| S/PDIF | 1 x Optical S/PDIF out | |
| CMOS Button | 1 x Clear CMOS button(s) | |
| Operating System | ||
| Supported OS | Windows 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |

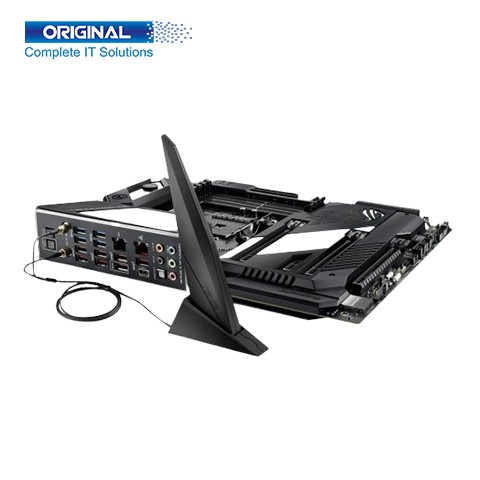

Asus Rog Crosshair X570 VIII Formula Gaming Motherboard. ROG Crosshair VIII Dark Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want. ROG Crosshair VIII Dark Hero features the most comprehensive cooling options ever.
Asus Rog Crosshair X570 VIII Formula Gaming Motherboard. The Motherboard Model is Rog Crosshair X570 VIII Formula. The Brand Asus. Supported Processor AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. Chipset AMD X570. Socket AM4. BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. Form Factor ATX Form Factor: 12 inches x 9.6 inches (30.5 cm x 24.4 cm). Memory Types DDR4, Dual Channel, 4 x DIMM. Supported Bus Speed 3rd Gen AMD Ryzen Processors: 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory. 2nd Gen AMD Ryzen Processors: 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory. 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory. ECC Memory (ECC mode) support varies by CPU. Maximum Memory 128GB. Graphics 3rd and 2nd Gen AMD Ryzen™ Processors. Supports NVIDIA 2-Way SLI Technology. Supports AMD 3-Way CrossFireX Technology. 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. Supports AMD 2-Way CrossFireX Technology. PCI 2 x PCIe 4.0 x16 (x16 or dual x8). AMD X570 chipset, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors, 2 x PCIe 3.0 x16 (x16 or dual x8), 1 x PCIe 3.0 x16 (x8 mode). M.2 3rd Gen AMD Ryzen™ Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCI-E 4.0 x4 and SATA modes) storage devices support. 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode). AMD X570 chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support. SATA 8 x SATA 6Gb/s port(s). Raid Support Raid 0, 1, 10. USB Port 3rd Gen AMD RyzenTM Processors: 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A). 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A). AMD X570 chipset: 1 x USB 3.2 Gen 2 front panel connector port(s), 4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C), 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board), 4 x USB 2.0 port(s), 4 x USB 3.2 Gen 1 (up to 5Gbps) ports, 8 x USB 3.2 Gen 2 (up to 10Gbps) ports. LAN Port 1 x AQC-111C 5G LAN port & Anti-surge LAN (RJ45) port. Audio Jack 1 x Gold-plated audio jacks. Flash Back Button 1 x USB BIOS FlashBack™ Button(s). S/PDIF 1 x Optical S/PDIF out. CMOS Button 1 x Clear CMOS button(s). Supported Operating System Windows 10 64-bit. Asus Rog Crosshair X570 VIII Formula Gaming Motherboard comes with 03 years warranty.
