| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | ROG STRIX X670E-F GAMING WIFI |
| General Information | ||
| Model | ROG STRIX X670E-F GAMING WIFI | |
| Brand | Asus | |
| Supported Processor | AMD Ryzen 7000 Series Desktop Processors | |
| Chipset | AMD X670 | |
| Socket | AM5 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory* Supports AMD EXTended Profiles for Overclocking (EXPO)OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort* 1 x HDMI port** |
|
| Expansion Slots | ||
| PCI | AMD Ryzen™ 7000 Series Desktop Processors* |
|
| Storage Information | ||
| M.2 | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors |
|
| SATA | 4 x SATA 6Gb/s ports | |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Connector Information | ||
| Internal Connector | Fan and Cooling related |
|
| Port Information | ||
| USB Port | Rear USB (Total 12 ports) |
|
| HDMI Port | 1 x HDMI® port | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 1 x Intel® 2.5Gb Ethernet port | |
| Audio Jack | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 5 x Gold-plated audio jacks |
|
| Optical S/PDIF | 1 x Optical S/PDIF out port | |
| BIOS FlashBack button | 1 x BIOS FlashBack™ button | |
| Clear CMOS button | 1 x Clear CMOS button | |
| Wi-Fi Module | 1 x Wi-Fi Module | |
| Others Information | ||
| Wireless & Bluetooth | Wi-Fi 6E |
|
| Special Features | Extreme Engine Digi+ |
|
| Software Features | ROG Exclusive Software |
|
| Operating System | ||
| Supported OS | Windows 10 64-bit, Windows 11 64-bit | |
| Warranty | ||
| Warranty | 3 Years Warranty | |

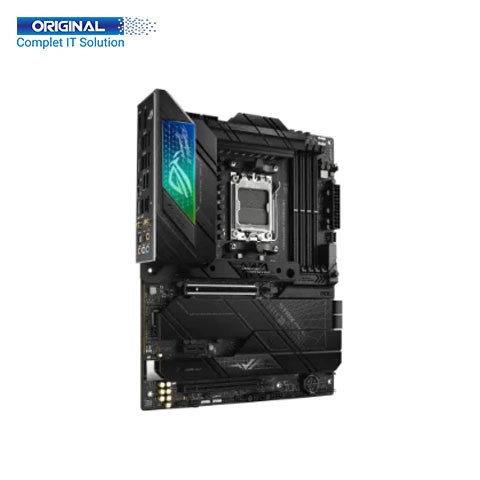

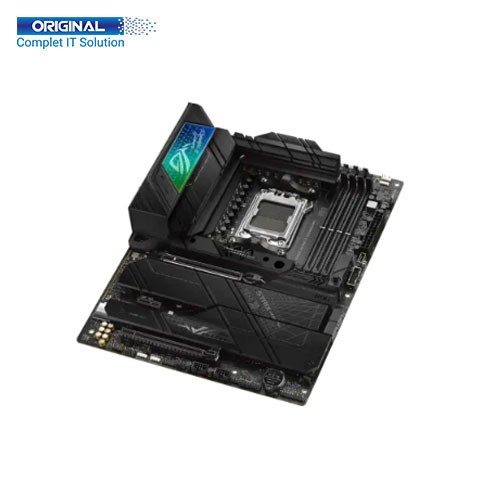

Asus ROG STRIX X670E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard comes equipped with potent performance and thermal prowess in a fresh-looking package.
Asus ROG STRIX X670E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard. It is Motherboard Supported Processor AMD Ryzen 7000 Series Desktop Processors, Chipset AMD X670, Socket AM5, BIOS 256 Mb Flash ROM, UEFI AMI BIOS, Form Factor ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Memory Types DDR5, Channel Dual Channel, Slot 4 x DIMM, Supported Bus Speed 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory, Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II, Maximum Memory 128GB, Graphics 1 x DisplayPort, 1 x HDMI port, Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports max. 4K@60Hz as specified in HDMI 2.1. This Motherboard PCI AMD Ryzen™ 7000 Series Desktop Processors, 1 x PCIe 5.0 x16 slots (supports x16 mode), AMD X670 Chipset, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot, * Please check PCIe bifurcation table in support site, M.2 Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports, AMD Ryzen™ 7000 Series Desktop Processors, M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280, (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), USB Port Rear USB (Total 12 ports), 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®), x USB 2.0 ports, Front USB (Total 7 ports), 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports. The Asus ROG STRIX X670E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard has a 03 years warranty.
