| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | B460 |
| General Information | ||
| Model | Asus TUF B460M-Plus Wi-Fi | |
| Brand | Asus | |
| Supported Processor | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel® B460 | |
| Socket | Intel® Socket 1200 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | * 1 x DisplayPort 1.4 ** * 1 x HDMI 1.4b * 1 x DVI-D * Support DisplayPort 1.4 with max. resolution of 4096 x 2304 |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0 x16 (x16 mode) * 1 x PCIe 3.0 x16 (x4 mode) * 1 x PCIe 3.0 x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 * 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
|
| SATA | 6 x SATA 6Gb/s port(s) | |
| RAID | Support Raid 0, 1, 5, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) * 1 x CPU OPT Fan connector(s) * 2 x Chassis Fan connector(s) * 2 x Aura RGB Strip Headers * 1 x Addressable Gen 2 header(s) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) * 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) * 6 x SATA 6Gb/s connector(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin EATX 12V Power connectors * 1 x Front panel audio connector(s) (AAFP) * 1 x System panel(s) (Chassis intrusion header is inbuilt) * 1 x Clear CMOS jumper(s) * 1 x COM port header |
|

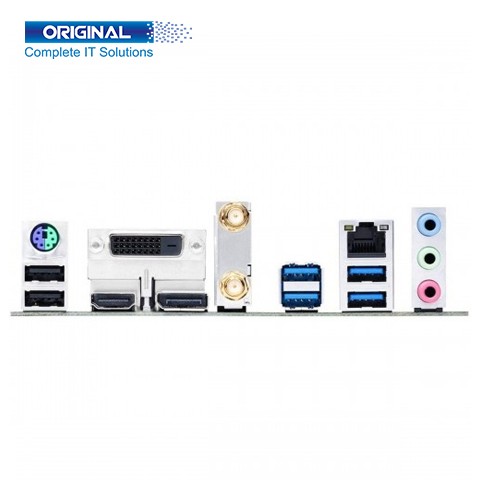

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse combo port(s) | |
| USB Port | * 4 x USB 3.2 Gen 1 Type-A * 2 x USB 2.0 |
|
| HDMI Port | 1 x HDMI | |
| DisplayPort | 1 x DisplayPort | |
| DVI-D Port | 1 x DVI | |
| LAN Port | * 1 x LAN (RJ45) port(s) * Intel® I219-V 1Gb Ethernet |
|
| Audio Port | 3 x Audio jack(s) | |
| Wi-Fi Module | 1 x ASUS Wi-Fi Module | |
| Operating System | ||
| Supported OS | Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |
Asus TUF B460M-Plus Wi-Fi motherboard gives you the strong foundation you expect in your first form, in addition to the versatility of developing with your aspirations. We've put together all the cool stuff with basic planning and design in the latest Intel® Socket 1200 for 10th Gen Intel Core™, Pentium Gold and Celeron® Processors support, so you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus TUF B460M-Plus Wi-Fi motherboard comes with Intel Socket 1200 for 10th Gen Intel Core™, Pentium Gold and Celeron Processors, 128 Mb Flash ROM, UEFI AMI BIOS, mATX Form Factor (24.4 cm x 24.4 cm), Chipset Intel B460, Dual Channel 4 x DIMM DDR4 Maximum Memory 128GB, Supported Bus Speed DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, It is Un-buffered Memory. In this Asus TUF B460M-Plus Wi-Fi motherboard, Support DisplayPort 1.4 with max. resolution of 4096 x 2304, 1 x DVI-D, 1 x HDMI 1.4b, Expansion Slots are 1 x PCIe 3.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1. Also in this motherboard, Internal Connectors are 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode)*1, 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCI-E 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10. 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Clear CMOS jumper(s), 1 x COM port header, 1 x LAN (RJ45) port(s), Intel® I219-V 1Gb Ethernet, 1 x ASUS Wi-Fi Module, 3 x Audio jack(s).
Asus TUF B460M-Plus Wi-Fi motherboard OS Support Windows® 10 64-bit. You can enjoy a 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance at any side of Bangladesh.
