| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | B550-Plus |
| General Information | ||

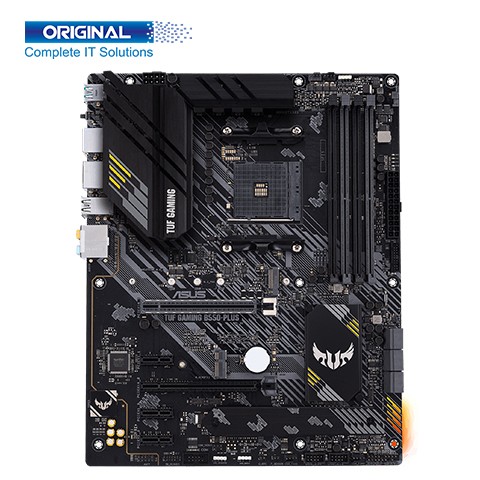

| Model | Asus TUF B550-Plus | |
| Brand | Asus | |
| Supported Processor | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series | |
| Chipset | AMD B550 | |
| Socket | AM4 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | 4600/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * 1 x DisplayPort 1.2 * 1 x HDMI 2.1(4K@60HZ) |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 4.0 x16 (x16 mode) * 1 x PCIe 3.0 x16 (x16 mode) * 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110(SATA & PCIe 4.0 x4 mode) * 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) * 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) |
|
| SATA | 6 x SATA 6Gb/s port(s), | |
| RAID | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) * 1 x CPU OPT Fan connector(s) * 3 x Chassis Fan connector(s) * 1 x AIO_PUMP connector * 2 x Aura RGB Strip Headers * 1 x Addressable Gen 2 header(s) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) * 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) * 1 x M.2 with E key for Wi-Fi module * 1 x SPI TPM header * 6 x SATA 6Gb/s connector(s) * 1 x Thunderbolt header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin EATX 12V Power connectors * 1 x Front panel audio connector(s) (AAFP) * 1 x Thermal sensor connector(s) * 1 x Clear CMOS jumper(s) * 1 x System panel connector * 1 x COM port header |
|
| Port Information | ||
| USB Port | * 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) * 4 x USB 3.2 Gen 1 (blue) Type-A * 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™) |
|
| HDMI Port | 1 x HDMI | |
| DisplayPort | 1 x DisplayPort | |
| LAN Port | * 1 x LAN (2.5G) port(s) * Realtek RTL8125B 2.5Gb Ethernet |
|
| Audio Port | 5 x Audio jack(s) | |
| Optical S/PDIF | 1 x Optical S/PDIF out | |
| FlashBack™ Button | 1 x BIOS FlashBack™ Button(s) | |
| Operating System | ||
| Supported OS | Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |
Asus TUF B550-Plus motherboard gives you the strong foundation you expect in your first form, in addition to the versatility of developing with your aspirations. We've put together all the cool stuff with basic planning and design in the latest AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series support, so you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus TUF B550-Plus motherboard comes with AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series, Chipset AMD B550, 256 Mb Flash ROM, UEFI AMI BIOS, ATX Form Factor (30.5 cm x 24.4 cm), Dual Channel 4 x DIMM DDR4 Maximum Memory 128GB, Supported Bus Speed DDR4 4600/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory. In this Asus TUF B550-Plus motherboard, 1 x DisplayPort 1.2, 1 x HDMI 2.1(4K@60HZ). Also in this Asus TUF B550-Plus motherboard, Expansion Slots are 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x16 (x16 mode), 3 x PCIe 3.0 x1. Moreover, Storage ports are 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110(SATA & PCIe 4.0 x4 mode), 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110(PCIE 3.0 x4 and SATA modes), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10. Also in this motherboard, Internal Connectors are 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 1 x AIO_PUMP connector, 1 x M.2 with E key for Wi-Fi module, 1 x SPI TPM header, 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x COM port header. Moreover, Others ports are 4 x USB 3.2 Gen 1 (blue) Type-A, 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C), 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack), 1 x LAN (2.5G) port(s), Realtek RTL8125B 2.5Gb Ethernet, 5 x Audio jack(s), 1 x Optical S/PDIF out, 1 x BIOS FlashBack™ Button(s).
Asus TUF B550-Plus motherboard OS Supports Windows 10 64-bit. You can enjoy a 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance at any side of Bangladesh.
