| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | TUF Gaming B660M-E D4 |
| General Information | ||
| Model | TUF Gaming B660M-E D4 |
|
| Brand | ASUS | |
| Supported Processor | Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel® B660 Chipset | |
| Socket | LGA1700 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR4 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/2133 Non-ECC, Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort 1 x HDMI®port Graphics specifications may vary between CPU types. Please refer to www.intel. Support 4K@60Hz as specified in DisplayPort 1.4. Support 4K@60Hz as specified in HDMI 2.1. |
|
| Expansion Slots | ||
| PCI | * Intel®13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot * Intel® B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot |
|
| Storage Information | ||
| M.2 | 2 x M.2 slots |
|
| SATA | 4 x SATA 6Gb/s ports | |
| RAID | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 | |
| Connector Information | ||
| Internal Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x S/PDIF Out header |
|

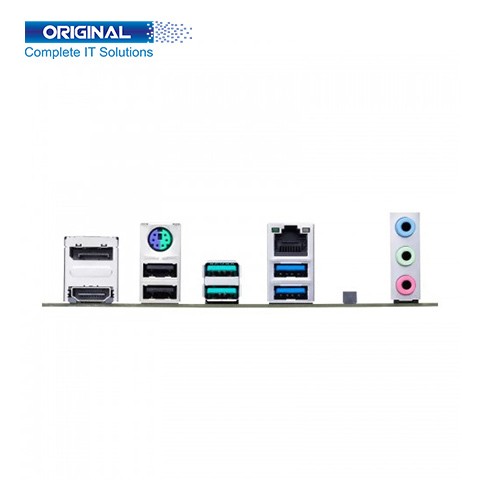

| Port Information | ||
| PS/2 Port | 1 x PS/2 Keyboard/Mouse combo port |
|
| USB Port | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (Type-A) 2 x USB 3.2 Gen1 ports (Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| HDMI Port | 1 x HDMI® port | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 1 x Realtek2.5Gb Ethernet | |
| Audio Jack | 3 x Audio jacks | |
| Other Information | ||
| WIFI & BLUETOOTH | V-M.2 slot only (Key E, CNVi & PCIe) |
|
| Operating System | ||
| Supported OS | Windows® 11 64-bit, Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

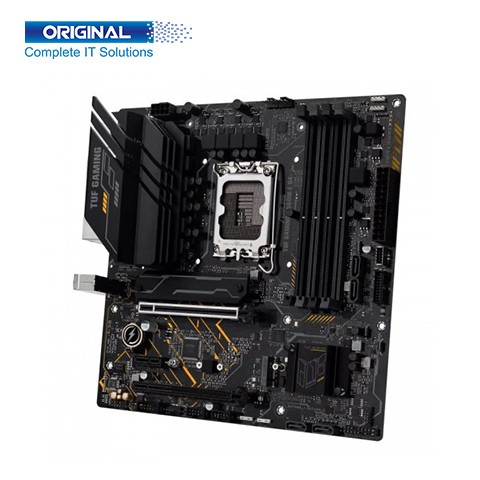

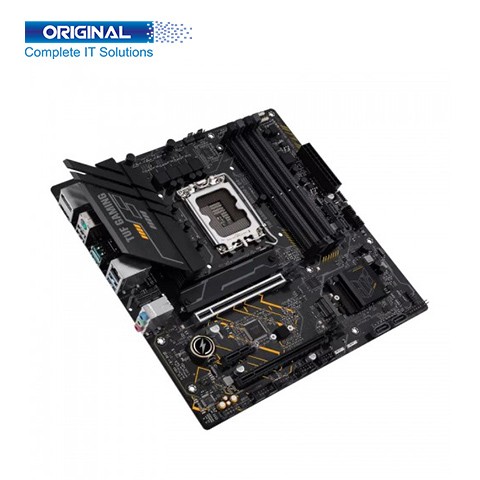

ASUS TUF Gaming B660M-E D4 12th Gen mATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus TUF Gaming B660M-E D4 Motherboard.
ASUS TUF Gaming B660M-E D4 12th Gen mATX Motherboard. Support for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Intel® B660 Chipset. Socket LGA1700. Form Factor mATX; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ). Asus TUF Gaming B660M-E D4 Memory Types DDR4, Dual-Channel. Slot 4 x DIMM. Supported Bus Speed Support for DDR4 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/2133 Non-ECC, Un-buffered Memory, Maximum Memory 128 GB. Graphics is 1 x DisplayPort, and 1 x HDMI®port. PCI is Intel®13th & 12th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot, Intel® B660 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot. Storage is 2 x M.2 slots, 4 x SATA 6Gb/s ports. PS/2 Port is 1 x PS/2 Keyboard/Mouse combo port, USB Port is Rear USB (Total 6 ports): 2 x USB 3.2 Gen 2 ports (Type-A), 2 x USB 3.2 Gen1 ports (Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 7 ports): 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Display Port is 1 x DisplayPort, HDMI Port is 1 x HDMI port, LAN Port is 1 x Intel® 2.5Gb Ethernet, Audio Port is 3 x Audio jacks. Supported Operating System Support for Windows® 11, and Windows® 10 64-bit. ASUS TUF Gaming B660M-E D4 12th Gen mATX Motherboard has Three years warranty.
