| Special Price | : | ৳38,350 |
| Regular Price(EMI) | : | ৳42,600 |
| Status | : | In Stock |
| Brand | : | Asus |
| Product Code | : | TUF GAMING Z790-PLUS WIFI D4 |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | TUF GAMING Z790-PLUS WIFI D4 |
|
| Brand | ASUS | |
| Supported Processor | 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors* | |
| Chipset | Intel Z790 Chipset | |
| Socket | LGA1700 | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC) /3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort |
|
| Expansion Slots | ||
| PCI | Intel® 13th & 12th Gen Processors* |
|
| Storage Information | ||
| M.2 | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
|
| SATA | 4 x SATA 6Gb/s ports | |
| RAID | * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
| Connector Information | ||
| Internal Connector | Fan and Cooling related |
|
| Port Information | ||
| USB Port | Rear USB (Total 8 ports) |
|
| HDMI Port | 1 x HDMI® port | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 1 x Intel® 2.5Gb Ethernet port | |
| Audio Jack | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
5 x Audio jacks |
|
| Wi-Fi Module | 1 x Wi-Fi Module | |
| Optical S/PDIF | 1 x Optical S/PDIF out port | |
| Others Information | ||
| Wireless & Bluetooth | Wi-Fi 6 |
|
| Special Features | ASUS TUF PROTECTION |
|
| Software Features | ASUS Exclusive Software |
|
| Operating System | ||
| Supported OS | Windows 11, |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |

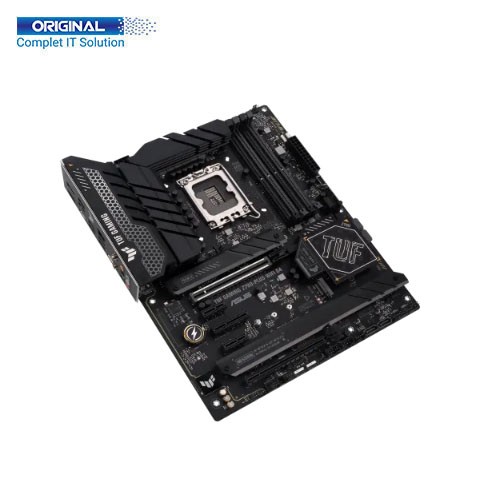

Asus TUF GAMING Z790-PLUS WIFI D4 13th & 12th Gen ATX Motherboard. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.
Asus TUF GAMING Z790-PLUS WIFI D4 13th & 12th Gen ATX Motherboard. It is Motherboard Supported Processor 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors*, Chipset Intel Z790 Chipset, Socket LGA1700, BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, Form Factor ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Memory Types DDR4, Channel Dual Channel, Slot 4 x DIMM, Supported Bus Speed 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC) /3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory, Graphics 1 x DisplayPort, 1 x HDMI port, ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. This * Supports 4K@60Hz as specified in HDMI 2.1, * VGA resolution support depends on the processors' or graphic cards' resolution, PCI Intel® 13th & 12th Gen Processors, 1 x PCIe 5.0 x16 slot, Intel Z790 Chipset, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slot, 2 x PCIe 3.0 x1 slots,* Please check the PCIe bifurcation table at the support site, M.2 Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280/22110, - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode, Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), USB Port Rear USB (Total 8 ports), 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®), 4 x USB 3.2 Gen 1 ports (4 x Type-A), Front USB (Total 7 ports), 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports. The Asus TUF GAMING Z790-PLUS WIFI D4 13th & 12th Gen ATX Motherboard has a 3 Years Warranty.
