| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | X570 |
| General Information | ||
| Model | Asus TUF X570-Plus | |
| Brand | Asus | |
| Supported Processor | AMD AM4 Socket AMD RyzenTM 5000/ 4000G/ 3000/ 2000/ 3000G/ 2000 G-Series Processors | |
| Chipset | AMD X570 | |
| Socket | AM4 | |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information | |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | 5100/ 4800/ 4600/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3400/ 3200/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | * Integrated Graphics in AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors * Multi-VGA output support : HDMI/DisplayPort ports * Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz * Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 4.0 x16 (x16 mode) * 1 x PCIe 3.0 x16 (x16 mode) * 1 x PCIe 3.0/2.0 x16 (x8 mode) * 1 x PCIe 4.0 x16 (max at x4 mode) * 3 x PCIe 4.0 x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIe 4.0 x4 and SATA modes) storage devices support * 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIe 3.0 x4 and SATA modes) storage devices support * 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIe 4.0 x4 and SATA modes) storage devices support |
|
| SATA | 8 x SATA 6Gb/s port(s) | |
| RAID | Support Raid 0, 1, 10 | |
| Connector Information | ||
| Internal Connectors | * 2 x Aura RGB Strip Header(s) * 1 x Addressable Gen 2 header(s) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) * 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) * 1 x SPI TPM header * 8 x SATA 6Gb/s connector(s) * 1 x CPU Fan connector(s) * 1 x CPU OPT Fan connector(s) * 3 x Chassis Fan connector(s) * 1 x AIO_PUMP connector * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin ATX 12V Power connector(s) * 1 x 4-pin ATX 12V Power connector(s) * 1 x Front panel audio connector(s) (AAFP) * 1 x System panel(s) * 1 x Clear CMOS jumper(s) * 1 x COM port header * 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse combo port(s) | |
| USB Port | * 4 x USB 3.2 Gen 1 (up to 5Gbps) ports * 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) |
|
| HDMI Port | 1 x HDMI | |
| DisplayPort | 1 x DisplayPort | |
| LAN Port | * 1 x LAN (RJ45) port(s) Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard |
|
| Audio Port | 5 x Audio jack(s) | |
| Optical S/PDIF | 1 x Optical S/PDIF out | |
| Operating System | ||
| Supported OS | Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |

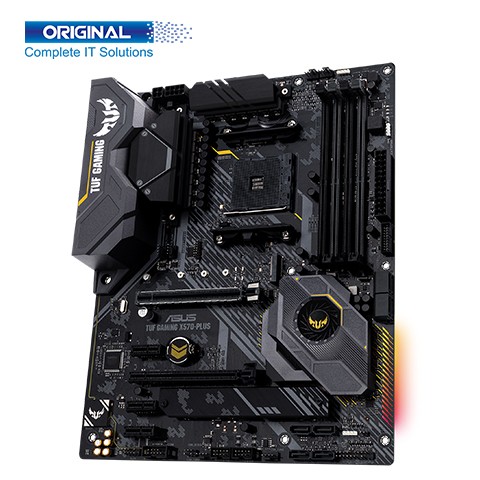

Asus TUF Gaming X570-Plus motherboards provide the solid foundation needed for your first build, plus elasticity to grow with your ambitions. We have melded all the good stuff that is packed into the latest AMD Ryzen AM4 Socket 5000/ 4000G/ 3000/ 2000/ 3000G/ 2000 G-Series Processors with necessary ASUS design and engineering, so you advantage from industry-leading technologies, including automated system tuning, extensive cooling controls, and immersive onboard audio. When you build with an Asus TUF Gaming X570-Plus motherboard, you build smart, simple, and affordably.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus TUF X570-Plus Motherboard comes with AMD AM4 Socket AMD RyzenTM 5000/ 4000G/ 3000/ 2000/ 3000G/ 2000 G-Series Processors, AMD X570 Chipset with 256 Mb Flash ROM, UEFI AMI BIOS, 12-inch x 9.6-inch ATX Form Factor. Asus TUF X570-Plus AMD Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 5100/ 4800/ 4600/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3400/ 3200/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, It is Un-buffered Memory. Asus TUF X570-Plus Gaming Motherboard comes with standard Graphics such as Integrated Graphics in AMD Ryzen™ AM4 Socket AMD RyzenTM 5000/ 4000G/ 3000/ 2000/ 3000G/ 2000 G-Series Processors Desktop Processors. TUF X570-Plus Asus Motherboard Expansion PCI Slots is 1 x PCIe 4.0 x 16 slots, 8 x SATA 6 GB/s, 2 M.2 Socket 3, 1 x M.2_1 socket 3 and 1 x M.2_2 socket 3, Supports RAID 0, 1, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. Asus X570-Plus Motherboard has HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz, DisplayPort with max. resolution 4096 x 2160 @ 60 Hz, Multi-VGA output support: HDMI/DisplayPort ports, 1 x LAN (RJ45) port(s) Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard, BLUETOOTH 5.1 function, Also it will be ready in Windows 10 build 19041 or later. and 1 x ASUS Wi-Fi Module, 4 USB 3.2 Gen 1, 4 USB 2.0 ports, 1x Display Port, 5 x Audio jacks, and so on.
Asus TUF X570-Plus Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty and buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
