| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | Asus |
| Product Code | : | Z490 |
| General Information | ||
| Model | Asus TUF Z490-Plus Wi-Fi | |
| Brand | Asus | |
| Supported Processor | Build-in Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Build in Intel® Z490 | |
| Socket | Intel® Socket 1200 | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | 4600/ 4500/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3400/ 3333/ 3200/ 3000/ 2933/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | * 1 x DisplayPort 1.4 * 1 x HDMI 1.4b * Graphics specifications may vary between CPU types. * Support DisplayPort 1.4 with max. resolution of 4096 x 2304 |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0 x16 (x16 mode) * 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 * 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 |
|
| SATA | 6 x SATA 6Gb/s port(s) | |
| RAID | Support Raid 0, 1, 5, 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) * 1 x CPU OPT Fan connector(s) * 3 x Chassis Fan connector(s) * 1 x AIO_PUMP connector * 2 x Aura RGB Strip Headers * 1 x Addressable Gen 2 header(s) * 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) * 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s) * 2 x M.2 Socket 3 * 6 x SATA 6Gb/s connector(s) * 1 x Thunderbolt header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin ATX 12V Power connector(s) * 1 x 4-pin ATX 12V Power connector(s) * 1 x Front panel audio connector(s) (AAFP) * 1 x System panel(s) (Chassis intrusion header is inbuilt) * 1 x Clear CMOS jumper(s) * 1 x COM port header * 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse combo port(s) | |

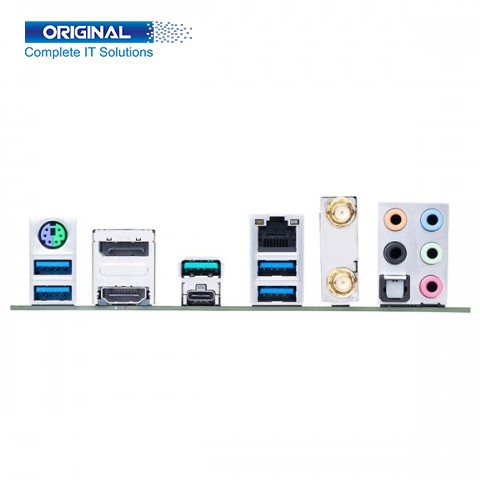

| USB Port | * 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) * 4 x USB 3.2 Gen 1 (blue) Type-A |
|
| HDMI Port | 1 x HDMI | |
| DisplayPort | 1 x DisplayPort | |
| LAN Port | * 1 x LAN (RJ45) port(s) Intel® I219-V 1Gb Ethernet TUF LANGuard |
|
| Audio Port | 5 x Audio jack(s) | |
| Optical S/PDIF | 1 x Optical S/PDIF out | |
| Wi-Fi Module | 1 x ASUS Wi-Fi Module | |
| Other Information | ||
| Special Features | Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. ASUS Exclusive Software Armoury Crate - Aura Sync AI Suite 3: - Performance And Power Saving Utility Turbo V Evo EPU Digi+ VRM Fan Xpert 4 System information - EZ update AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 90 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS TUF PROTECTION - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Stylish heatsink ASUS EZ DIY - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header |
|
| Operating System | ||
| Supported OS | Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |

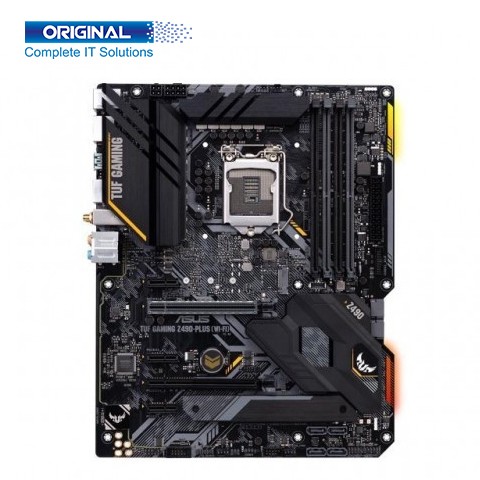

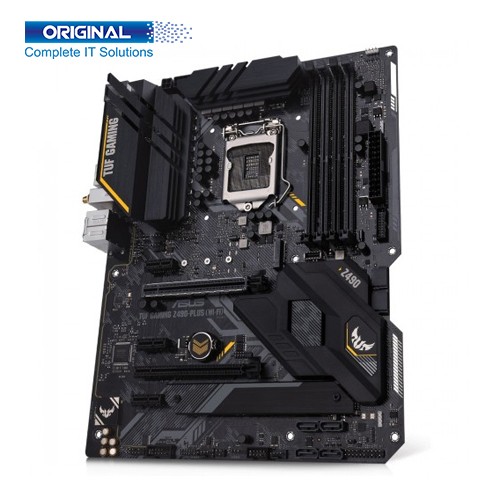

Asus TUF Z490-Plus Wi-Fi motherboard gives you the strong foundation you expect in your first form, in addition to the versatility of developing with your aspirations. We've put together all the cool stuff with basic planning and design in the latest Build-in Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors support, so you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
This Asus TUF Z490-Plus Wi-Fi Motherboard comes with 10th Gen Intel Core, Pentium Gold and Celeron Processors, Intel Socket 1200, Build in Intel Z490 Chipset with 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, 30.5 cm x 24.4 cm ATX Form Factor. Asus TUF Z490-Plus Wi-Fi Motherboard Maximum 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, 4 x DDR4 DIMM sockets, Supported Bus Speed 4600/ 4500/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3400/ 3333/ 3200/ 3000/ 2933/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, It is Un-buffered Memory. TUF Z490-Plus Wi-Fi Asus Motherboard comes with standard Graphics such as 1 x Display Port 1.4, 1 x HDMI 2.1, Support DisplayPort 1.4 with max. resolution of 4096 x 2304 Hz, Graphics specifications may vary between CPU types. Asus TUF Z490-Plus Wi-Fi Motherboard Expansion PCI slot is 1 x PCIe 3.0/4.0 x 16 slots, 6 x SATA 6 GB/s, 1 x M.2_2 socket 3, Supported Raid 0, 1, 5, 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x M.2_FAN connector, etc. Asus TUF Z490-Plus Wi-Fi Motherboard has 1 x LAN (RJ45) port(s), Intel® I219-V 1Gb Ethernet Lan port, 4 USB 3.2 Gen 1, 2 USB 2.0 ports, 5 x Audio jack(s). Asus TUF Z490-Plus Wi-Fi Motherboard has some special features like Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO, Bluetooth v5.1, ASUS Exclusive Software.
This Asus TUF Z490-Plus Wi-Fi Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance at any side of Bangladesh.
