| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | GA520 |
| General Information | ||

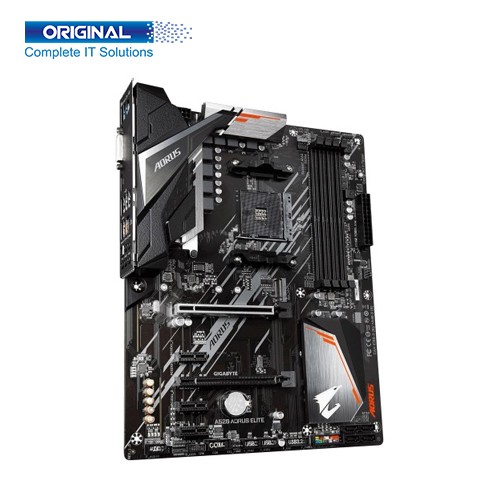

| Model | Gigabyte A520 Aorus Elite | |
| Supported Processor | AMD Socket AM4, support for AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors | |
| Chipset | AMD A520 | |
| Socket | AM4 | |
| BIOS | * 1 x 128 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 / 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | * 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR * Maximum shared memory of 16 GB |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) 3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3) * The PCIEX1_2 and PCIEX1_3 slots share bandwidth with the PCIEX2 slot. The PCIEX2 slot becomes unavailable when a device is installed in the PCIEX1_2 or PCIEX1_3 slot. |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) | |
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x CPU fan header * 1 x water cooling CPU fan header * 3 x system fan headers * 2 x addressable LED strip headers * 2 x RGB LED strip headers * 1 x M.2 Socket 3 connector * 4 x SATA 6Gb/s connectors * 1 x front panel header * 1 x front panel audio header * 1 x USB 3.2 Gen 1 header * 2 x USB 2.0/1.1 headers * 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) * 1 x serial port header * 1 x Clear CMOS jumper * 1 x Q-Flash Plus button |
|

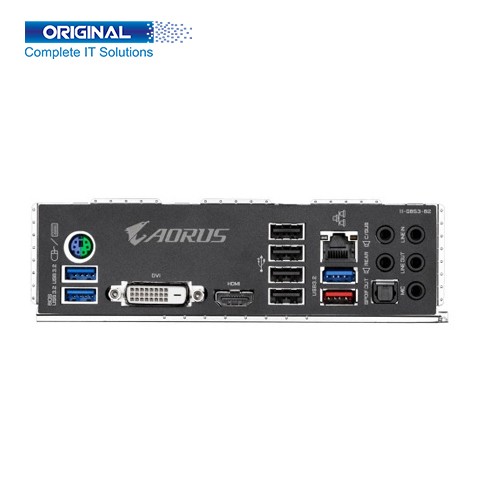

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port | |
| USB Port | * 1 x USB 3.2 Gen 2 Type-A port (red) * 3 x USB 3.2 Gen 1 ports * 4 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI port | |
| DVI-D Port | 1 x DVI-D port | |
| LAN Port | * Realtek® GbE LAN chip (1000 Mbit/100 Mbit) * 1 x RJ-45 port |
|
| Audio Port | 5 x audio jacks | |
| optical S/PDIF | 1 x optical S/PDIF Out connector | |
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit | |
| Warranty | ||
| Warranty | 3 Years | |
This Gigabyte A520 Aorus Elite Motherboard comes with AMD Socket AM4, AMD Socket AM4, support for AMD Ryzen 5000 Series / 3rd Generation AMD Ryzen processors / 3rd Generation AMD Ryzen with Radeon Graphics processors. AM4 Socket, Chipset AMD A520, Bios is 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, DMI 2.7, WfM 2.0, PnP 1.0a, SM BIOS 2.7, ACPI 5.0 and 30.5cm x 24.4cm ATX Form Factor. A520 Aorus Elite Gigabyte Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed DDR4 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133/ 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules.
Gigabyte A520 Aorus Elite Gaming Motherboard comes with standard Graphics such as 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Actual support may vary by CPU, Support for HDMI 2.1 version and HDCP 2.3 and HDR. Maximum shared memory of 16 GB. This A520 Aorus Elite Gigabyte Motherboard Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 4 x SATA 6 GB/s connectors, and 1. 1 x M.2 connector, Support for RAID 0, RAID 1, and RAID 10 also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. Gigabyte A520 Aorus Elite Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (10/100/1000 Mbit), and High Definition Audio with 5 x audio jacks.
This Gigabyte A520 Aorus Elite Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
