| Special Price | : | ৳9,050 |
| Regular Price(EMI) | : | ৳10,400 |
| Status | : | In Stock |
| Brand | : | Gigabyte |
| Product Code | : | B450M K |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | B450M K | |
| Brand | Gigabyte | |
| Supported Processor | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 1st Generation AMD Ryzen™ processors/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics processors/ 1st Generation Ryzen™ with Radeon™ Vega Graphics processors/ Athlon™ with Radeon™ Vega Graphics Processors | |
| Chipset | AMD B450 | |
| Socket | AM4 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 19.5cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 2 x DIMM | |
| Supported Bus Speed | Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules |
|
| Maximum Memory | Up to 64 GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. * Maximum shared memory of 16 GB |
|
| Expansion Slots | ||
| PCI | * CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16* * Actual support may vary by CPU. * Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1 |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4/x2(Note) SSD support) * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 connector. |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Connector Information | ||
| Internal Connector | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x CPU fan header * 1 x system fan header * 1 x M.2 Socket 3 connector * 4 x SATA 6Gb/s connectors * 1 x front panel header * 1 x front panel audio header * 1 x USB 3.2 Gen 1 header * 2 x USB 2.0/1.1 headers * 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) * 1 x speaker header * 1 x Clear CMOS jumper * 1 x chassis intrusion header |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard port 1 x PS/2 mouse port |
|
| USB Port | 4 x USB 3.2 Gen 1 port 2 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI 2.0 port | |
| LAN Port | 1 x RJ-45 port Realtek GbE LAN chip (1 Gbps/ 100 Mbps) |
|
| Audio Jack | 3 x audio jacks | |
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit Support for Windows 7 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

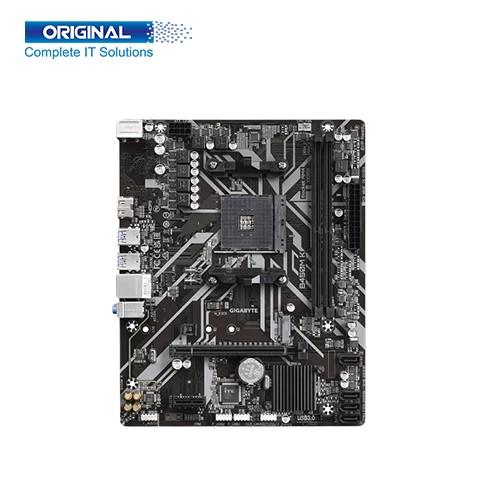

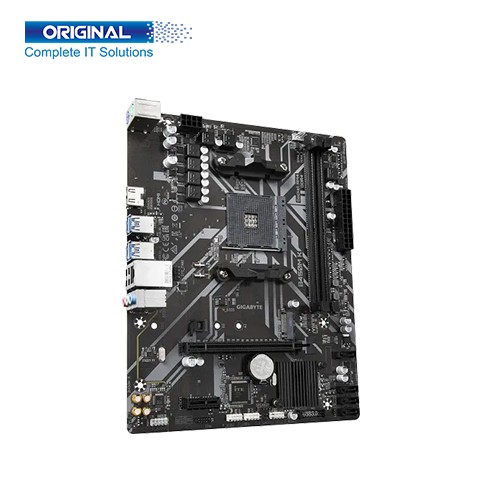

Gigabyte B450M K AMD AM4 Micro ATX Motherboard. The Gigabyte B450M provides customers with advanced features and the latest technologies. Gigabyte motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.
Gigabyte B450M K AMD AM4 Micro ATX Motherboard. The model is B450M K. The brand is Gigabyte. The Motherboard Supports AMD Socket AM4, support for AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 1st Generation AMD Ryzen™ processors/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics processors/ 1st Generation Ryzen™ with Radeon™ Vega Graphics processors/ Athlon™ with Radeon™ Vega Graphics Processors. Chipset AMD B450. Socket AM4. 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 24.4cm x 19.5cm. Dual Channel DDR4 2 x DIMM. Supported Bus Speed for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules. Maximum Memory Up to 64 GB (32 GB single DIMM capacity). PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support. GbE LAN with Bandwidth Management. 4 x USB 3.2 Gen 1 port on the back panel. 2 x USB 3.2 Gen 1 ports are available through the internal USB header. 1 x PS/2 keyboard port & 1 x PS/2 mouse port. 4 x USB 3.2 Gen 1 port, 2 x USB 2.0/1.1 ports. 1 x HDMI 2.0 port. 1 x RJ-45 port, Realtek GbE LAN chip (1 Gbps/ 100 Mbps). 3 x audio jacks. Supported Operating System Support for Windows 11 64-bit, Support for Windows 10 64-bit & Support for Windows 7 64-bit. The Gigabyte B450M K AMD AM4 Micro ATX Motherboard has come with 03 years warranty.
