| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | Gigabyte |
| Product Code | : | B460 |
| General Information | ||
| Model | B460 AORUS PRO AC | |
| Supported Processor | 10th Generation Intel Pentium Core i3, i5, i7, i9 processor | |
| Chipset | Intel B460 Express Chipset | |
| Socket | LGA1200 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Type | DDR4 | |
| Channel | Dual channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | DDR4 2933/2666/2400/2133 MHz | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Maximum shared memory of 512 MB |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector. 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Supports up to ASPM L1.2 power management protocols. |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB) | |
| SATA | 6 x SATA 6Gb/s connectors | |
| RAID | Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt™ add-in card connectors 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port | |
| USB Port | 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| HDMI Port | 1 x HDMI port | |
| D-Sub port | 1 x DisplayPort | |
| LAN Port | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) | |
| Audio Port | Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |

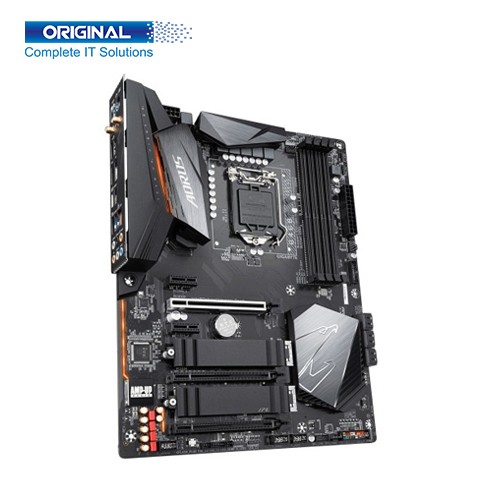

This Gigabyte B460 Aorus Pro AC Motherboard comes with Intel Core i5, i7, i9 Processors with 10th Generation, Has Intel B460 Express Chipset, LGA1200 Socket, Bios is 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 30.5cm x 24.4cm Micro ATX Form Factor. B460 Aorus Pro AC Gigabyte Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed DDR4 2933/ 2666/ 2400/ 2133 MHz
Gigabyte B460 Aorus Pro AC Motherboard with standard Graphics such as 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, supporting a maximum resolution of 4096x2160@30 Hz, Support for DisplayPort 1.4 version, HDCP 2.3, and HDR, Maximum shared memory of 512 MB. Gigabyte Aorus B460 Pro AC Motherboard Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 6 x SATA 6 GB/s connectors, and 1. x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. Aorus Pro AC Gigabyte B460 Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit), and High Definition Audio 2/4/5.1/7.1-channel.
This Gigabyte B460 Aorus Pro AC DDR4 10th Gen Micro-ATX Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh
