| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B550 AORUS MASTER Wi-Fi |
| General Information | ||
| Model | B550 AORUS MASTER Wi-Fi |
|
| Supported Processor | AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 3rd Gen AMD Ryzen with Radeon Graphics processors | |
| Chipset | AMD B550 | |
| Socket | AM4 | |
| Bios | * 2 x 256 Mbit flash * Use of licensed AMI UEFI BIOS * Support for DualBIOS™ * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual channel | |
| Slot | 4 x DDR4 memory slots | |
| Supported Bus Speed | AMD Ryzen 5000 (5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133MHz), 3rd Gen (5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133MHz) | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. * Maximum shared memory of 16 GB |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: * 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode * New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. * 2 x PCI Express x16 slots (PCIEX4_1/PCIEX4_2), integrated in the Chipset: Supporting PCIe 3.0 x4 mode * The PCIEX4_2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX4_2 slot operates at up to x2 mode when a device is installed in the SATA3 4 or SATA3 5 connector. |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs * New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs * 2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: * 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x4/x2 SSDs * New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x4/x2 SSDs |
|
| SATA | 6 x SATA 6Gb/s connectors, integrated in the Chipset | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x 4-pin ATX 12V power connector * 1 x CPU fan header * 1 x water cooling CPU fan header * 4 x system fan headers * 2 x system fan/water cooling pump headers * 2 x addressable LED strip headers * 2 x RGB LED strip headers * 1 x CPU cooler LED strip/RGB LED strip header * 3 x M.2 Socket 3 connectors * 6 x SATA 6Gb/s connectors * 1 x front panel header * 1 x front panel audio header * 1 x USB 3.2 Gen 1 header * 2 x USB 2.0/1.1 headers * 1 x noise detection header * 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) * 1 x Thunderbolt™ add-in card connector * 1 x Clear CMOS jumper * 2 x temperature sensor headers * 1 x Thunderbolt header |
|
| Port Information | ||

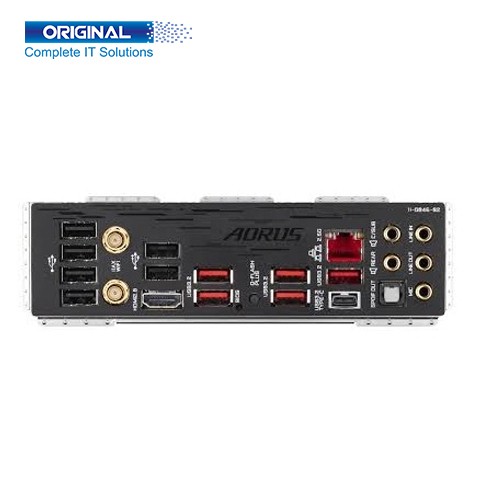

| USB Port | * 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel * 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support * 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel * 2 x USB 3.2 Gen 1 ports available through the internal USB header * 2 x USB 2.0/1.1 ports on the back panel * 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| HDMI Port | 1 x HDMI port | |
| LAN Port | Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) | |
| Audio Port | * Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. * Support for DTS:X® Ultra * High Definition Audio * 2/4/5.1/7.1-channel * Support for S/PDIF Out |
|
| Q-Flash Plus Button | 1 x Q-Flash Plus button | |
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
This Gigabyte B550 AORUS MASTER Wi-Fi Motherboard comes with AMD Socket AM4, AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 3rd Gen AMD Ryzen with Radeon Graphics processors, Chipset AMD B550, AM4 Socket, Bios is 2 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 30.5cm x 24.4cm ATX Form Factor. B550 AORUS MASTER Wi-Fi Gigabyte Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed AMD Ryzen 5000 (5100(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 2933/ 2667/ 2400/ 2133MHz, 3rd Gen (5400(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz).
Gigabyte B550 AORUS MASTER Wi-Fi Motherboard comes with standard Graphics such as a 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, The DVI-D port does not support D-Sub connection by the adapter, And support for HDMI 1.4 version and HDCP 2.3 with Maximum shared memory of 16 GB. B550 AORUS MASTER Wi-Fi Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 6 x SATA 6 GB/s connectors, and 1. 1 x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit), and High Definition Audio 2/4/5.1/7.1-channel.
This B550 AORUS MASTER Wi-Fi Motherboard Support for Windows 10,7 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh
