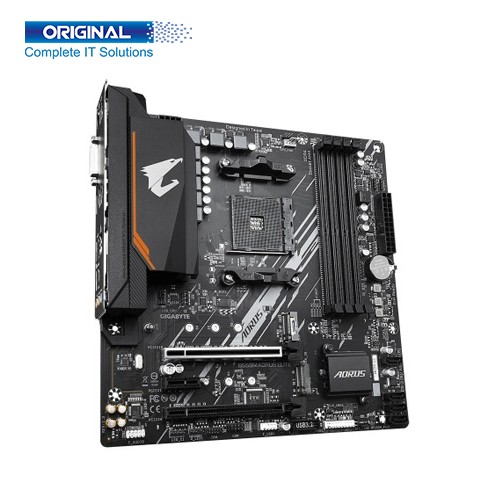

Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard

Special Price :           ৳17,750
Regular Price(EMI) :           ৳19,300
Status :           In Stock
Brand :           Gigabyte
Product Code :           GB550MAE

Short Details:

  • • Model: Gigabyte Aorus B550M Elite
  • • Chipset: AMD B550
  • • Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
  • • Memory Types: DDR4

See More Details

৳17,750

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Gigabyte Aorus B550M Elite
Supported Processor AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Chipset AMD B550
Socket AM4
BIOS

* 1 x 256 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Memory Information
Memory Types DDR4
Channel Dual channel
Slot 4 x DDR4 DIMM
Supported Bus Speed 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules
Maximum Memory 128 GB
Graphics Information
Graphics

* 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

* Maximum shared memory of 16 GB

Expansion Slots
PCI

* 1‎ x PCI Express x16 slot (PCIEX16), integrated in the

* 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode

* 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* 1 x PCI Express x16 slot (PCIEX4), integrated in the

* Supporting PCIe 3.0 x4 mode

* 1 x PCI Express x1 slot (PCIEX1), integrated in the

* Supporting PCIe 3.0 x1 mode

Storage Information
M.2

* 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs

* 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs

SATA

* 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs

* 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

* Supporting SATA and PCIe 3.0 x2 SSDs

* 4 x SATA 6Gb/s connectors, integrated in the Chipset

RAID Support for RAID 0, RAID 1, and RAID 10
Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector

* 1 x 8-pin ATX 12V power connector

* 1 x CPU fan header

* 2 x system fan headers

* 2 x addressable LED strip headers

* 2 x RGB LED strip headers

* 1 x CPU cooler LED strip/RGB LED strip header

* 2 x M.2 Socket 3 connectors

* 4 x SATA 6Gb/s connectors

* 1 x front panel header

* 1 x front panel audio header

* 1 x USB 3.2 Gen 1 header

* 1 x USB 2.0/1.1 header

* 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

* 1 x serial port header

* 1 x Clear CMOS jumper

* 1 x Q-Flash Plus button

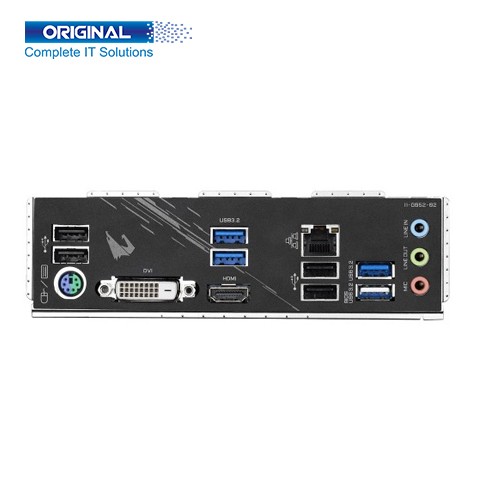

Port Information
PS/2 Port 1 x PS/2 keyboard/mouse port
USB Port

* 4 x USB 3.2 Gen 1 ports

* 4 x USB 2.0/1.1 ports

HDMI Port 1 x HDMI port
DVI-D Port 1 x DVI-D port
LAN Port

* Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

* Realtek® 8118 Gaming LAN Bandwidth Control Utility

* 1 x RJ-45 port

Audio Port 3 x audio jacks
Operating System
Supported OS Support for Windows 10 64-bit
Warranty
Warranty 3 Years

Description:


Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard


Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard comes with AMD Socket AM4, support for 5000 Series, 3rd Generation AMD Ryzen processors with Radeon Graphics processors, Chipset AMD B550, AM4 Socket, Bios is 1 x 256 Mbit flash,  DMI 2.7, WfM 2.0, SM BIOS 2.7, Use of licensed AMI UEFI BIOS, PnP 1.0a, ACPI 5.0 and 24.4cm x 24.4cm ATX Form Factor. B550M Aorus Elite Gigabyte Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 3rd Gen AMD Ryzen Processors: This motherboard support for DDR4 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules and New Generation AMD Ryzen with Radeon Graphics processors: Supported for DDR4 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/3200 /2933 /2667 /2400 /2133 MHz memory modules. Buy Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard with standard Graphics such as 1 x HDMI port and supports a maximum resolution of 4096x2160@30 Hz, Support for HDMI 1.4 version and HDCP 2.3, and Maximum shared memory of 16 GB. Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 6 x SATA 6 GB/s connectors, and 1. 1 x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. The Gigabyte B550M Aorus Elite Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (1000 Mbit/100 Mbit), and High Definition Audio 3 x audio jacks. This Gigabyte B550M Aorus Elite Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
