| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B650M DS3H |
| General Information | ||
| Model | B450M DS3H | |
| Brand | Gigabyte | |
| Supported Processor | support for: AMD Ryzen™ 7000 Series Processors |
|
| Chipset | AMD B650 | |
| Socket | AM5 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules |
|
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor: * 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. * Support native HDMI 2.1 TMDS compatible ports. |
|
| Expansion Slots | ||
| PCI | CPU: * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: * 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
|
| Storage Information | ||
| M.2 | 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|

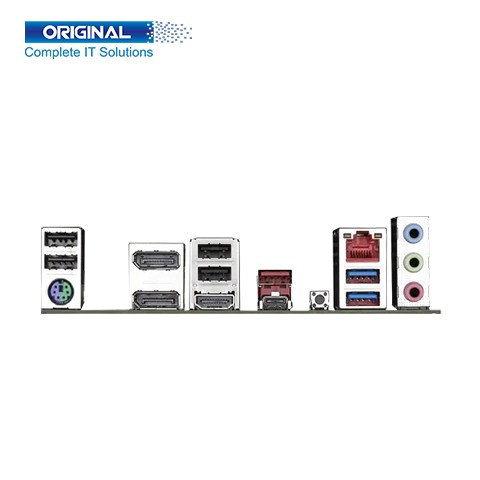

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port | |
| USB Port | 4 x USB 2.0/1.1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 port |
|
| HDMI Port | 1 x HDMI port | |
| Display Port | 2 x DisplayPorts | |
| Q-Flash Plus Button | 1 x Q-Flash Plus button | |
| LAN Port | 1 x RJ-45 port
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Audio Jack | 3 x audio jacks | |
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

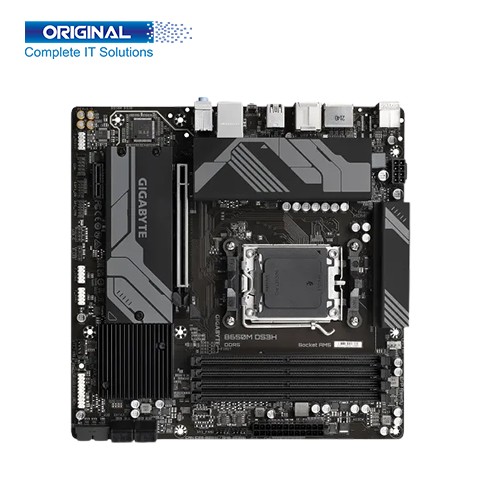

Gigabyte B650M DS3H AMD Micro ATX Motherboard. The Gigabyte B650M provides customers with advanced features and the latest technologies. Gigabyte motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.
Gigabyte B650M DS3H AMD Micro ATX Motherboard. The model is B650M DS3H. The brand is Gigabyte. The Motherboard Supports AMD Ryzen™ 7000 Series Processors. Chipset AMD B650. Socket AM5. 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 24.4cm x 24.4cm. Unparalleled Performance： Direct 6+2+1 Phases Digital VRM Solution. Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support. SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors. Advanced Thermal Design & M.2 Thermal Guard： To Ensure VRM Power Stability & 25110 M.2 SSD Performance. PCIe x16 EZ-Latch with Quick Release & Screwless Design. Fast Networks：2.5GbE LAN. Extended Connectivity：2*DP, HDMI, 2*USB-C® 10Gb/s. Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus： Update BIOS Without Installing the CPU, Memory, and Graphics Card. Supported Operating System Support for Windows 11 64-bit & Support for Windows 10 64-bit. The Gigabyte B650M DS3H AMD Micro ATX Motherboard comes with 03 years warranty.
