| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B660 GAMING X AX |
| General Information | ||
| Model | B660 GAMING X AX |
|
| Brand | GIGABYTE | |
| Supported Processor | Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel® B660 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Type | DDR4 |
|
| Channel | Dual-channel | |
| Slot | 4 x DDR DIMM | |
| Supported Bus Speed | Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MT/s memory modules | |
| Maximum Memory | up to 128 GB | |
| Graphics Information | ||
| Graphics | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2) |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Port Information | ||

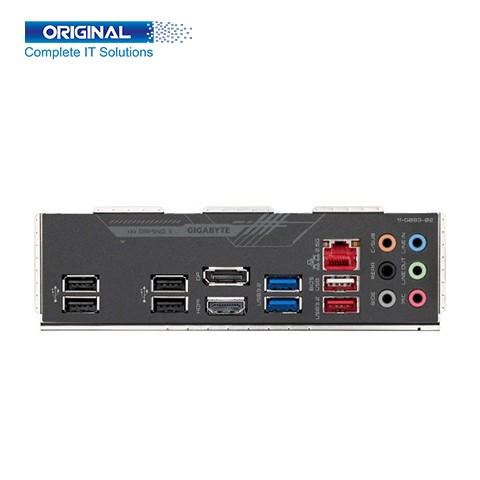

| USB Port | * Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel * Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| HDMI Port | 1 x HDMI 2.0 port | |
| Display Port | 1 x DisplayPort | |
| LAN Port | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Audio Jack | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Other Information | ||
| WIFI & BLUETOOTH | AMD Wi-Fi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate |
|
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

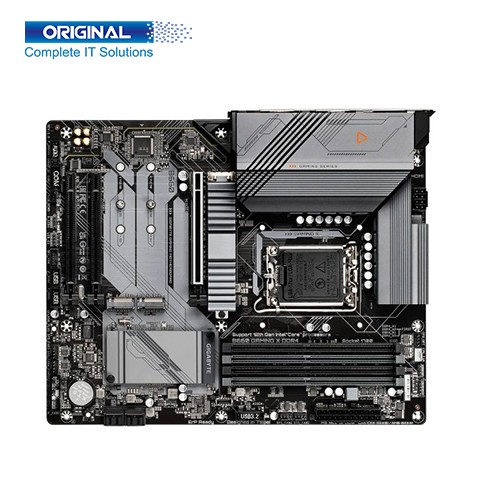

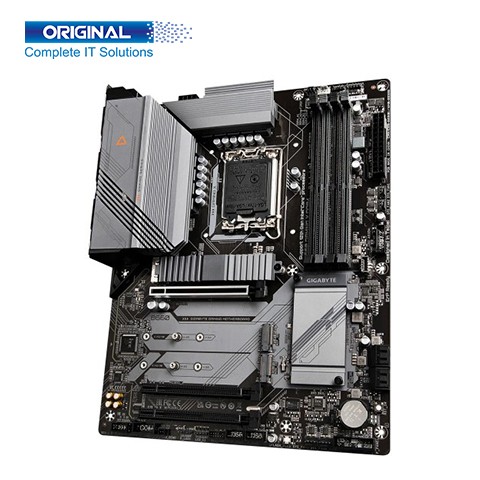

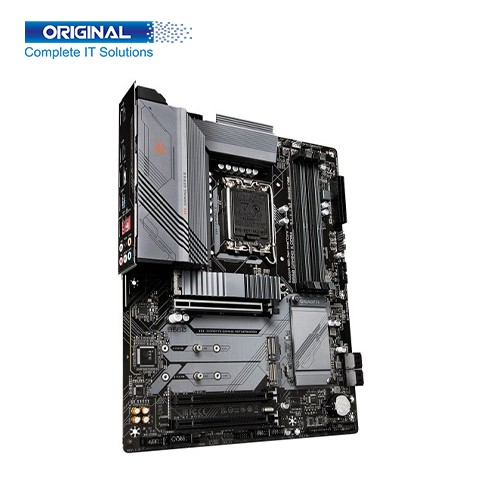

GIGABYTE B660 GAMING X AX DDR4 12th Gen ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. GIGABYTE extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with GIGABYTE B660 GAMING X AX DDR4 Motherboard.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different types of IT Product information please Click here.
GIGABYTE B660 GAMING X AX DDR4 12th Gen ATX Motherboard. Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. Intel® B660 Express Chipset. Socket LGA1700. Form Factor ATX Form Factor; 30.5cm x 24.4cm. GIGABYTE B660 GAMING X AX Memory Types DDR4 Dual-Channel. Slot 4 x DIMM. Supported Bus Speed is Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MT/s memory modules. Maximum Memory 128 GB. Graphics is 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, and 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB), 4 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10. USB Port is 1 x USB 3.2 Gen 2 Type-A port (red), 2 x USB 3.2 Gen 1 ports, 5 x USB 2.0/1.1 ports, HDMI Port is 1 x HDMI 2.0 port, Display Port is 1 x DisplayPort, LAN Port is Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps), Audio Port is 7.1-Channel High Definition Audio, Supports S/PDIF output. Supported Operating System Support for Windows® 11 64-bit, and Windows® 10 64-bit. GIGABYTE B660 GAMING X AX DDR4 12th Gen ATX Motherboard has Three years warranty.
