| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B660M Gaming |
| General Information | ||
| Model | Gigabyte B660M Gaming | |
| Brand | Gigabyte | |
| Supported Processor | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors | |
| Chipset | Intel B660 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | * 1 x 256 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5. |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual channel | |
| Slot | 2 x DDR4 DIMM | |
| Supported Bus Speed | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | * Integrated Graphics Processor-Intel® HD Graphics support: * 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. * Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * (Graphics specifications may vary depending on CPU support.) * Support for up to 3 displays at the same time |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, running at x16 * (The PCIEX16 slot conforms to PCI Express 4.0 standard.) * 1 x PCI Express x1 slot * (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
* Chipset:
* 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x CPU fan header * 3 x system fan headers * 1 x addressable LED strip header * 1 x RGB LED strip header * 2 x M.2 Socket 3 connectors * 4 x SATA 6Gb/s connectors * 1 x front panel header * 1 x front panel audio header * 1 x USB 3.2 Gen 1 header * 2 x USB 2.0/1.1 headers * 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) * 1 x serial port header * 1 x S/PDIF Out header * 1 x Q-Flash Plus button * 1 x reset button * 1 x reset jumper * 1 x Clear CMOS jumper |
|

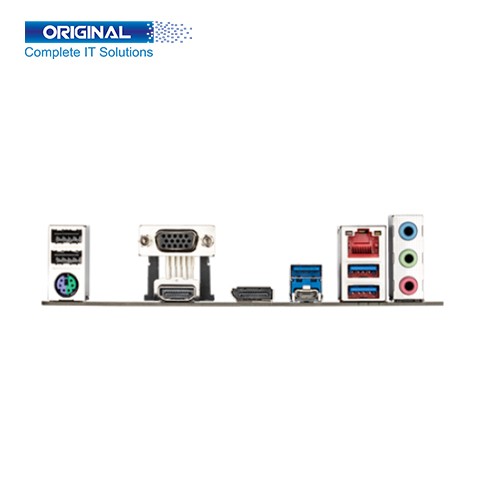

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port |
|
| USB Port | * 2 x USB 2.0/1.1 ports
* 3 x USB 3.2 Gen 1 ports
* 1 x USB Type-C® port, with USB 3.2 Gen 1 support |
|
| HDMI Port | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |
| D-Sub Port | 1 x D-Sub port | |
| LAN Port | * Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
* 1 x RJ-45 port |
|
| Audio Port | * Realtek® Audio CODEC
* 3 x audio jacks |
|
| Unique Information | ||
| Unique Features | * Support for APP Center * Available applications in APP Center may vary by motherboard * model. Supported functions of each application may also vary * depending on motherboard specifications. * @BIOS * EasyTune * Fast Boot * Game Boost * ON/OFF Charge * RGB Fusion * Smart Backup * System Information Viewer * Support for Q-Flash Plus * Support for Q-Flash * Support for Xpress Install |
|
| Operating System | ||
| Supported OS | * Support for Windows 11 64-bit
* Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty | |

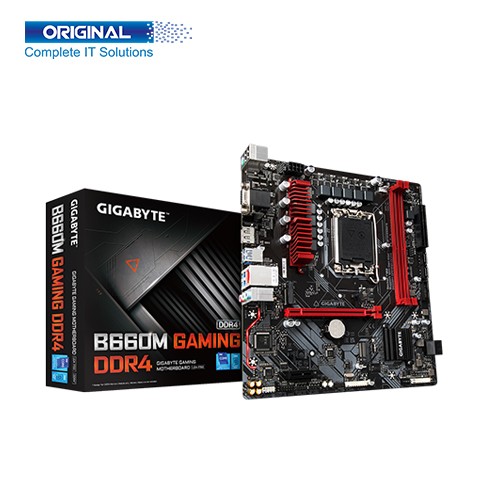

Gigabyte B660M Gaming DDR4 12th Gen Micro ATX Motherboard. The new king of gaming platforms continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design. GIGABYTE still keeps up with the latest trends and provides our customers with advanced features and the latest technology. Gigabyte B660M Series Motherboards come with an upgraded power solution, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming. Buy Gigabyte B660M Gaming DDR4 12th Gen Micro ATX Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte B660M Gaming DDR4 12th Gen Micro ATX Motherboard. It is Supported Processor LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors, Chipset Intel B660 Express Chipset, Socket LGA1700, BIOS * 1 x 256 Mbit flash, * Use of licensed AMI UEFI BIOS, * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5, Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm, Memory Types DDR4, Channel Dual Channel, Slot 2 x DDR4 DIMM, Supported Bus Speed Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules, Maximum Memory 128 GB. This is Graphics * Integrated Graphics Processor-Intel® HD Graphics support, * 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3, * Support native HDMI 2.1 TMDS compatible ports, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, * Support for DisplayPort 1.2 version and HDCP 2.3, * (Graphics specifications may vary depending on CPU support.), Support for up to 3 displays at the same time. It PCI is * 1 x PCI Express x16 slot, running at x16, * (The PCIEX16 slot conforms to PCI Express 4.0 standard.), * 1 x PCI Express x1 slot, * (The PCIEX1 slot conforms to PCI Express 3.0 standard.). This is PS/2 Port 1 x PS/2 keyboard/mouse port, USB Port * 2 x USB 2.0/1.1 ports, * 3 x USB 3.2 Gen 1 ports, * 1 x USB Type-C® port, with USB 3.2 Gen 1 support, HDMI Port 1 x HDMI port, Display Port 1 x DisplayPort, D-Sub Port 1 x D-Sub port, LAN Port * Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps),* 1 x RJ-45 port, Audio Port * Realtek® Audio CODEC, * 3 x audio jacks. The Gigabyte B660M Gaming DDR4 12th Gen Micro ATX Motherboard has a 03 Years Warranty.
