| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B760 AORUS ELITE |
| General Information | ||
| Model | B760 AORUS ELITE DDR4 | |
| Brand | Gigabyte | |
| Supported Processor | * Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors * L3 cache varies with CPU |
|
| Chipset | Intel® B760 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules |
|
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. * 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Expansion Slots | ||
| PCI | CPU: * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: * 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
|
| Storage Information | ||
| M.2 | CPU: * 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: * 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Port Information | ||

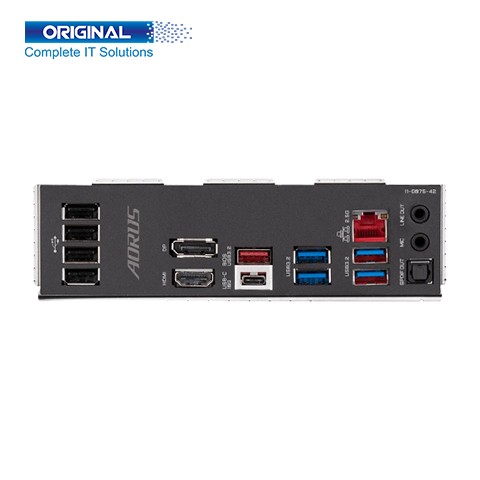

| USB Port | 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |
| Optical S/PDIF | 1 x optical S/PDIF Out connector | |
| LAN Port | 1 x RJ-45 port
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Audio Jack | 2 x audio jacks | |
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

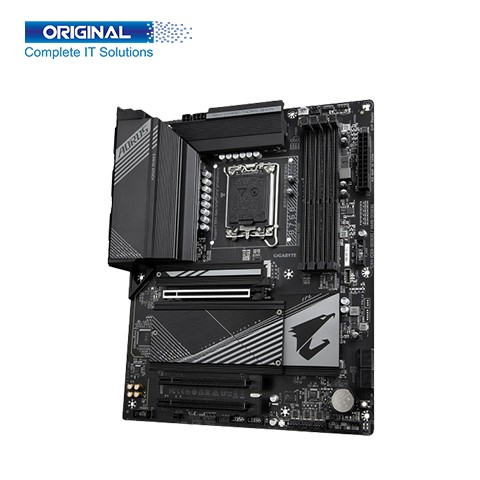

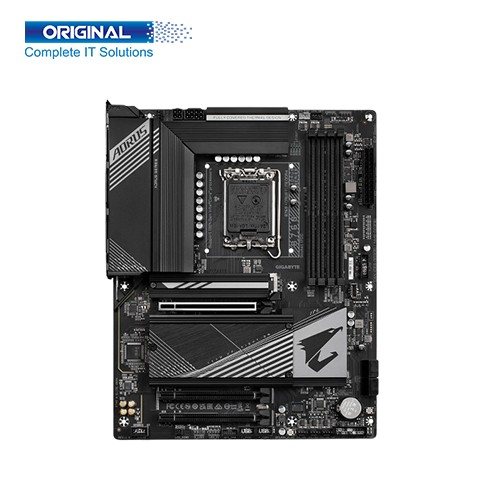

Gigabyte B760 AORUS ELITE DDR4 Motherboard. The Gigabyte B760 series provides customers with advanced features and the latest technologies. GIGABYTE motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.
Gigabyte B760 AORUS ELITE DDR4 Motherboard. The model is B760 AORUS ELITE DDR4. The brand is Gigabyte. The Motherboard Support 13th and 12th Gen Series Processors. Intel B760 Express Chipset. Socket LGA1700. Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card. Micro ATX Form Factor; 24.4cm x 24.4cm. Dual Channel DDR4：4*DIMMs with XMP Memory Module Support. Maximum Memory up to 128 GB (32 GB single DIMM capacity). Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors. Advanced Thermal Design & M.2 Thermal Guard： To Ensure VRM Power Stability & M.2 SSD Performance. 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support SATA storage devices. Fast Networks：2.5GbE LAN. 1 x USB Type-C® port, with USB 3.2 Gen 2 support. 1 x USB 3.2 Gen 2 Type-A port (red). 4 x USB 3.2 Gen 1 port. 4 x USB 2.0/1.1 ports. 1 x HDMI port. 1 x DisplayPort. 1 x optical S/PDIF Out connector. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). 1 x RJ-45 port. 2 x audio jacks. Supported Operating System Windows 11 64-bit & Windows 10 64-bit. The Gigabyte B760 AORUS ELITE DDR4 Motherboard has come with 03 years warranty.
