| Special Price | : | ৳22,400 |
| Regular Price(EMI) | : | ৳23,650 |
| Status | : | In Stock |
| Brand | : | Gigabyte |
| Product Code | : | B760M GAMING X AX |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | B760M GAMING X AX | |
| Brand | Gigabyte | |
| Supported Processor | * Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors * L3 cache varies with CPU |
|
| Chipset | Intel® B760 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | * 1 x 256 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR5 DIMM sockets | |
| Supported Bus Speed | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|
| Storage Information | ||
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|

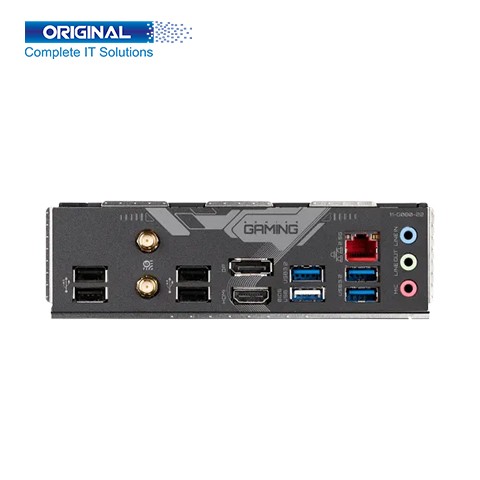

| Port Information | ||
| USB Port | 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI 2.0 port | |
| Display Port | 1 x DisplayPort | |
| SMA Antenna Connectors | 2 x SMA antenna connectors (2T2R) | |
| LAN Port | 1 x RJ-45 port
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Audio Jack | 3 x audio jacks | |
| Other Information | ||
| Wireless & Bluetooth | Intel® Wi-Fi 6E AX210 (PCB rev. 1.0) * WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands * BLUETOOTH 5.3 * Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (PCB rev. 1.1) * WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands * BLUETOOTH 5.3 * Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.2) * WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands * BLUETOOTH 5.3 * Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Operating System | ||
| Supported OS | Windows 11 64-bit Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |
Gigabyte B760M GAMING X AX DDR5 13th & 12th Gen Motherboard. The Gigabyte B760 series provides customers with advanced features and the latest technologies. GIGABYTE motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.
Gigabyte B760M GAMING X AX DDR5 13th & 12th Gen Motherboard. The model is B760M GAMING X AX. The brand is Gigabyte. The Motherboard Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with CPU. Intel® B760 Express Chipset. Socket LGA1700. 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. ATX Form Factor; 30.5cm x 24.4cm. Dual Channel 4 x DDR5 DIMM sockets. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules. Maximum Memory up to 192 GB (48 GB single DIMM capacity). 2*PCIe 4.0 x4 M.2 Connectors. PCIe 4.0x16 Slot with Quick Release Design. Fast Networks 2.5GbE LAN & Wi-Fi 6E 802.11ax. 1 x PS/2 keyboard/mouse port. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support. 3 x USB 3.2 Gen 1 ports. 5 x USB 2.0/1.1 ports. 1 x HDMI 2.0 port. 1 x DisplayPort. 2 x SMA antenna connectors (2T2R). Realtek® GbE LAN chip (1 Gbps/100 Mbps). 3 x audio jacks. Supported Operating System Windows 11 64-bit & Windows 10 64-bit. The Gigabyte B760M GAMING X AX DDR5 13th & 12th Gen Motherboard has come with 03 years warranty.
