| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | Z390 D |
| General Information | ||
| Model | Z390 D |
|
| Supported Processor | Support for 8th and 9th Generation Intel Pentium,Core i3, i5, i7, i9 processors | |
| Chipset | Intel® Z390 Express Chipset | |
| Socket | LGA1151 | |
| BIOS | * 1 x 128 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 23.0cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual channel | |
| Slot | 4 x DDR4 | |
| Supported Bus Speed | Support for 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: Support for HDMI 1.4 version and HDCP 2.2 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies Maximum shared memory of 1 GB |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) * 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) |
|
| SATA | 6 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x M.2 Socket 3 connector * 6 x SATA 6Gb/s connectors * 1 x CPU fan header * 3 x system fan headers * 1 x RGB LED strip header * 1 x front panel header * 1 x front panel audio header * 1 x USB 3.1 Gen 1 header * 2 x USB 2.0/1.1 headers * 1 x S/PDIF Out header * 1 x Thunderbolt™ add-in card connector * 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) * 1 x serial port header * 1 x Clear CMOS jumper |
|
| Port Information | ||
| PS/2 Port | 2 x PS/2 mouse & Keyboard port |
|
| USB Port | * 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header) * 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| HDMI Port | 1 x HDMI port | |
| LAN Port | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Audio Port | * Realtek® ALC887 codec * High Definition Audio * 2/4/5.1/7.1-channel |
|
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

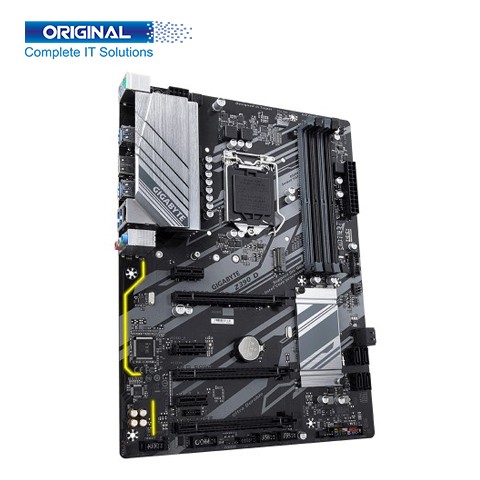

This Gigabyte Z390 D Motherboard comes with Intel Core i3, i5, i7, i9 Processors with 8th/9th Generation Intel Pentium. Has Intel Z390 Express Chipset, LGA1151 Socket, Bios is 2 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 30.5cm x 23.0cm Micro ATX Form Factor. This Gigabyte Z390 D Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz. Buy Gigabyte Z390 D with Advanced Thermal Design ATX Intel Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
This Gigabyte Z390 D Motherboard comes with standard Graphics such as Integrated Graphics AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies, Maximum shared memory of 1 GB, PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 6 x SATA 6Gb/s connectors also various Internal Connectors such as 1 x M.2 connector, 1 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Gigabyte Z390 D Motherboard has 4 x USB 3.1 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (1000 Mbit/100 Mbit), and High Definition Audio 2/4/5.1/7.1-channel. This Gigabyte Z390 D Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
