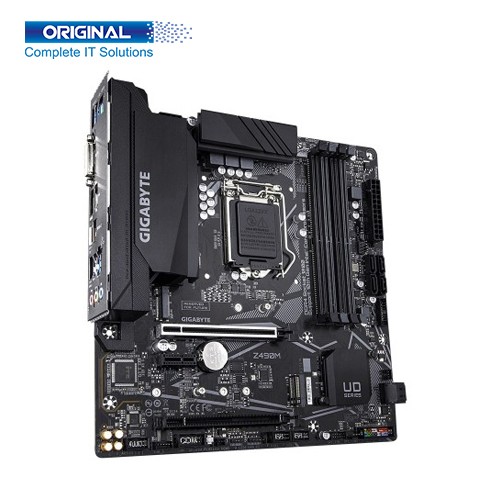

Gigabyte Z490M DDR4 10th Gen Intel LGA1200 Socket Micro ATX Motherboard

Price :           To be announced
Status :           Up Comming
Brand :           Gigabyte
Product Code :           Z490M

Short Details:

  • • Model: Z490M
  • • Chipset: Intel® Z490 Express Chipset
  • • Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

Z490M

Supported Processor Support for 10th Generation Intel Pentium,Core i3, i5, i7, i9 processors
Chipset Intel® Z490 Express Chipset
Socket LGA1200
BIOS

* 1 x 256 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Memory Information
Memory Types

DDR4

Channel Dual channel
Slot 4 x DDR4
Supported Bus Speed

Intel Core i9/i7 processors:

DDR4 4400(O.C.)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2666/ 2400/ 2133 MHz memory modules

Intel Core i5/i3/Pentium/ Celeron processors:

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory 128 GB
Graphics Information
Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Expansion Slots
PCI

* 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* 1 x PCI Express x16 slot, running at x4 (PCIEX4)

* 1 x PCI Express x1 slot

Storage Information
M.2

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)

SATA 6 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector

* 1 x 8-pin ATX 12V power connector

* 1 x CPU fan header

* 3 x system fan headers

* 1 x addressable LED strip header

* 1 x RGB LED strip header

* 6 x SATA 6Gb/s connectors

* 1 x M.2 Socket 3 connector

* 1 x front panel header

* 1 x front panel audio header

* 1 x USB 3.2 Gen 1 header

* 2 x USB 2.0/1.1 headers

* 2 x Thunderbolt™ add-in card connectors

* 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

* 1 x serial port header

* 1 x Clear CMOS jumper

* 1 x Q-Flash Plus button

Port Information

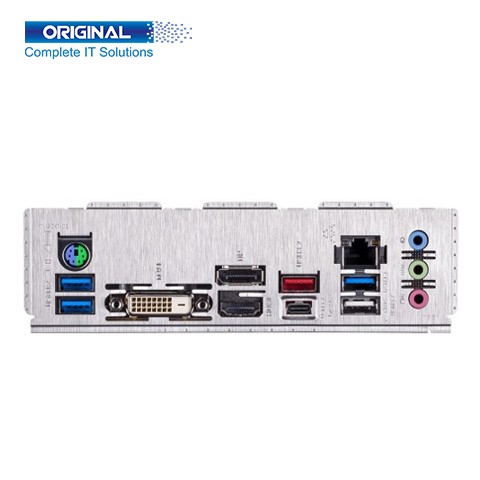

PS/2 Port

1 x PS/2 keyboard/mouse port

USB Port

* 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

* 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

* 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

* 4 x USB 2.0/1.1 ports available through the internal USB headers

HDMI Port 1 x HDMI port
DVI-D Port 1 x DVI-D port
Display Port 1 x Display Port
LAN Port Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Audio Port

* Realtek® ALC887 codec

* High Definition Audio

* 2/4/5.1/7.1-channel

Operating System
Supported OS

Support for Windows 10 64-bit

Warranty
Warranty

03 Years Warranty

Description:


Gigabyte Z490M 128 GB DDR4 Memory 10th Gen Micro ATX Motherboard


This Gigabyte Z490M Motherboard comes with Intel Core i3, i5, i7, i9 Processors with 10th Generation Intel Pentium. Has Intel Z490 Express Chipset, LGA1200 Socket, Bios is 2 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 24.4cm x 24.4cm Micro ATX Form Factor. This Gigabyte Z490M Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed Intel Core i9/i7 processors: DDR4 4400(O.C.)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2666/ 2400/ 2133 MHz memory modules, Intel Core i5/i3/Pentium/ Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules.


This Gigabyte Z490M Motherboard comes with standard Graphics such as Integrated Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz, AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies, Maximum shared memory of 1 GB, PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 6 x SATA 6Gb/s connectors also various Internal Connectors such as 1 x M.2 connector, 1 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header etc. This Gigabyte Z490M Motherboard has 4 x USB 3.1 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (1000 Mbit/100 Mbit) and High Definition Audio 2/4/5.1/7.1-channel.


This Gigabyte Z490M Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
