| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | GZ590UDM |
| General Information | ||
| Model | GIGABYTE Z590 UD | |
| Brand | GIGABYTE | |
| Supported Processor | * 11th Generation Intel® Core™ i9/ Core™ i7/ Core™ i5 processors
* 10th Generation Intel® Core™ i9/ Core™ i7/ Core™ i5/ Core™ i3/ Pentium® / Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
* L3 cache varies with CPU |
|
| Chipset | Intel® Z590 Express Chipset | |
| Socket | LGA1200 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| BIOS | * 1 x 256 Mbit flash
* Use of licensed AMI UEFI BIOS
* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | * 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5333/ 5133/ 5000/ 4933/ 4800/ 4700/ 4600/ 4500/ 4400/ 4300/ 4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
* 10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
* 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules |
|
| Maximum Memory | Up to 128 GB | |
| Graphics Information | ||
| Graphics | * Integrated Graphics Processor-Intel® HD Graphics support:
* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
* 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
* 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) |
|
| SATA | 5 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x 4-pin ATX 12V power connector * 1 x CPU fan header * 4 x system fan headers * 2 x addressable LED strip headers * 2 x RGB LED strip headers * 1 x Q-Flash Plus button * 5 x SATA 6Gb/s connectors * 3 x M.2 Socket 3 connectors * 1 x front panel header * 1 x front panel audio header * 1 x S/PDIF Out header * 1 x USB 3.2 Gen 1 header * 1 x USB Type-C® header, with USB 3.2 Gen 1 support * 2 x USB 2.0/1.1 headers * 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) * 2 x Thunderbolt™ add-in card connectors * 1 x serial port header * 1 x Clear CMOS jumper |
|

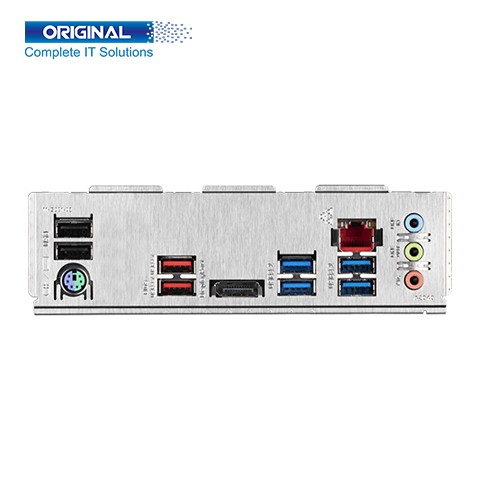

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port | |
| USB Port | * 2 x USB 3.2 Gen 2 Type-A ports (red)
* 4 x USB 3.2 Gen 1 ports
* 2 x USB 2.0/1.1 ports |
|
| Display Port | 1 x DisplayPort | |
| LAN Port | * 1 x RJ-45 port
* Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
|
| Audio Jack | 3 x audio jacks | |
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |
Gigabyte Z590 UD 10th and 11th Gen ATX Motherboard comes with Intel Core i5, i7, i9 Processors with 11th Generation also Intel Core i3, i5, i7, i9 Pentium/Celeron Processors with 10th Generation, Intel Celeron G5xx5 family, L3 cache varies with CPU. Has Intel H590 Express Chipset, LGA1200 Socket, Bios is 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 30.5cm x 24.4cm Micro ATX Form Factor. This GIGABYTE Z590 UD Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 10th Generation Intel® Core i9/i7 processors Support for DDR4 2933/2666/2400/2133 MHz memory modules, 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules. Buy Gigabyte Z590 UD 10th and 11th Gen ATX Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
This Gigabyte Z590 UD Motherboard comes with standard Graphics such as 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, Support for HDMI 4096x2160@30 Hz, Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 5 x SATA 6 GB/s connectors and 1. 1 x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This GIGABYTE Z590 UD Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit), and High Definition Audio 6 x audio jacks. This GIGABYTE Z590 UD Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
