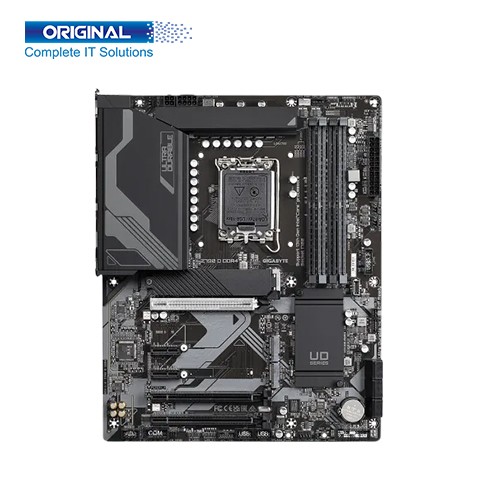

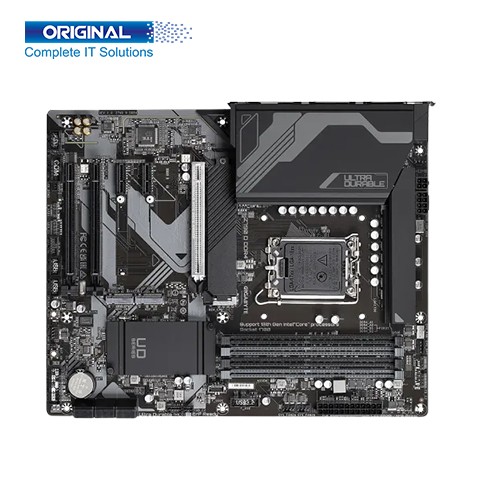

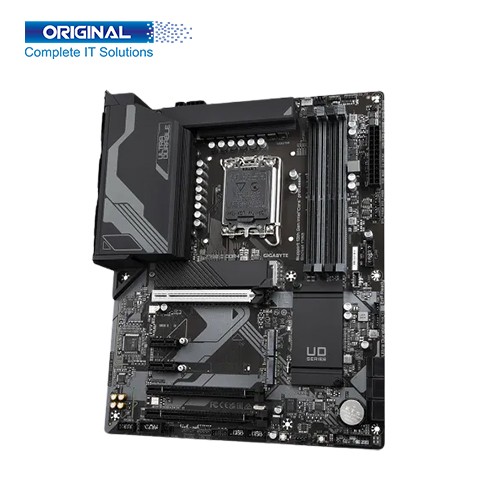

Gigabyte Z790 D DDR4 13th & 12th Gen ATX Motherboard

Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

Integrated Graphics Processor-Intel® HD Graphics support:

* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

CPU:

* 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

* 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

* 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)

* 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

* Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

CPU:

* 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

* 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)

* RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

* 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

* 1 x USB 3.2 Gen 2 Type-A port (red)

* 4 x USB 3.2 Gen 1 ports

* 2 x USB 2.0/1.1 ports

1 x RJ-45 port

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Support for Windows 11 64-bit

Support for Windows 10 64-bit
