| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | Z790 UD AX |
| General Information | ||
| Model | Z790 UD AX | |
| Brand | Gigabyte | |
| Supported Processor | * Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors * L3 cache varies with CPU |
|
| Chipset | Intel® Z790 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | * 1 x 256 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
|
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. * 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Expansion Slots | ||
| PCI | CPU: * 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) * 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) * Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
|
| Storage Information | ||
| M.2 | CPU: * 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: * 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) |
|
| SATA | 6 x SATA 6Gb/s connectors | |
| RAID | * RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Port Information | ||
| USB Port | * 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support * 1 x USB 3.2 Gen 2 Type-A port (red) * 4 x USB 3.2 Gen 1 ports * 4 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI 2.0 port | |
| Display Port | 1 x DisplayPort | |
| SMA Antenna Connectors | 2 x SMA antenna connectors (2T2R) | |
| LAN Port | 1 x RJ-45 port
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Audio Jack | 3 x audio jacks | |
| Other Information | ||
| Wireless & Bluetooth | Intel® Wi-Fi 6E AX210 * WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands * BLUETOOTH 5.3 * Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

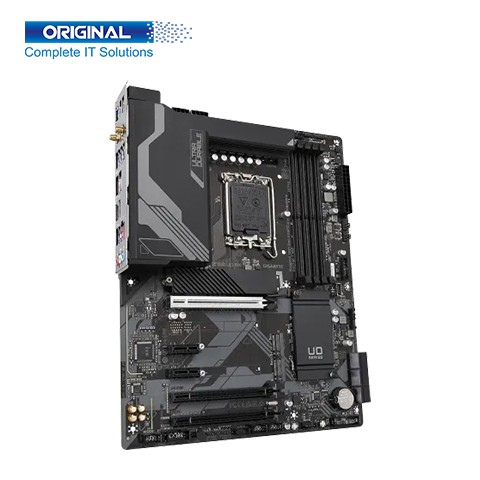

Gigabyte Z790 UD AX DDR5 13th & 12th Gen Motherboard. The Gigabyte Z790 provides customers with advanced features and the latest technologies. Gigabyte motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.
Gigabyte Z790 UD AX DDR5 13th & 12th Gen Motherboard. The model is Z790 UD AX DDR5. The brand is Gigabyte. The Motherboard Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. Intel® Z790 Express Chipset. Socket LGA1700. 1 x 256 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. ATX Form Factor; 30.5cm x 24.4cm. Dual Channel DDR5 4 x DIMM4 x DIMM. Supported Bus Speed DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules. Maximum Memory up to 128 GB (32 GB single DIMM capacity). 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU). 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB). 6 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices. RAID 0, RAID 1, RAID 5, and RAID 10 support SATA storage devices. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support. 1 x USB 3.2 Gen 2 Type-A port (red). 4 x USB 3.2 Gen 1 port. 4 x USB 2.0/1.1 ports. 1 x HDMI 2.0 port. 1 x DisplayPort. 2 x SMA antenna connectors (2T2R). 1 x RJ-45 port. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). 3 x audio jacks. Intel® Wi-Fi 6E AX210. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. BLUETOOTH 5.3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate. Supported Operating System Support for Windows 11 64-bit & Support for Windows 10 64-bit. The Gigabyte Z790 UD AX DDR5 13th & 12th Gen Motherboard comes with 03 years warranty.
