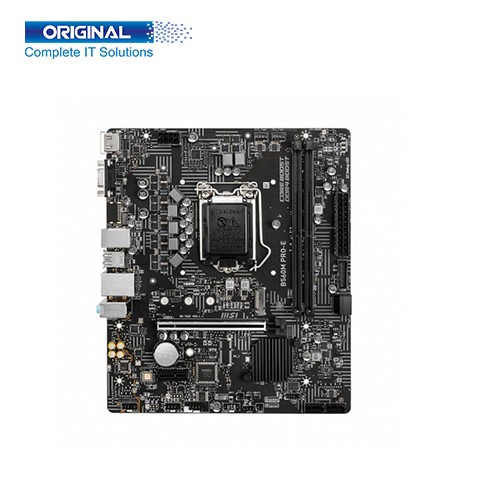

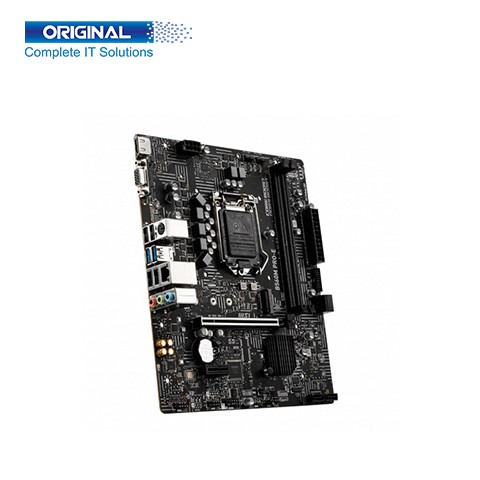

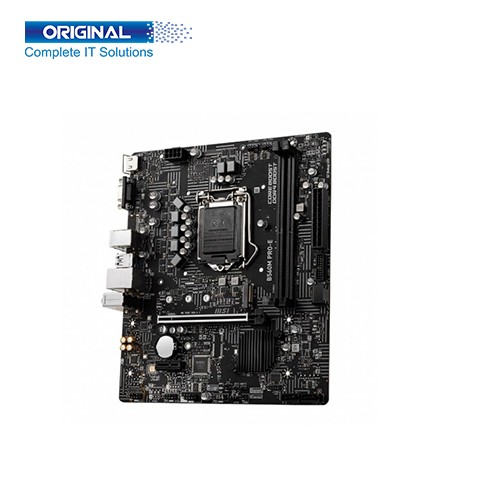

MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard

Description:

MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard

MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard support 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 4800 (OC) MHz. This MSI B560M PRO-E Motherboard features Core Boost With a decoration layout and digital power design to support more cores and give better performance. Then used Advanced technology to deliver pure data signals for stylish performance and stability. This motherboard has PCIe4.0, Lightning Gen3 x4M. 2 with M. 2 Shield Frozr that provides you Lightning Fast Experience. By2.5 G LAN, you can Upgrade network results for professional and multimedia use that delivers a secure, stable, and fast network connection.

For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.

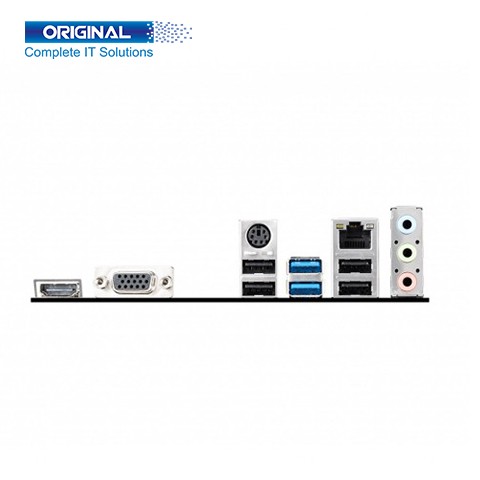

MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard Supported Processor Supports 10th Gen Intel Core Processors. The MSI B560M PRO-E Micro ATX Motherboard 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors, Chipset Intel® B560 Chipset, Socket 1200, BIOS 1x 256 Mb flash, UEFI AMI BIOS, ACPI 6.2, SMBIOS 3.0, Multi-language, Form Factor mATX Form Factor9.29 in. x 7.95 in. (23.6 cm x 20.2 cm). This motherboard Memory Types DDR4,Channel Dual-channel Slot 2x DDR4 memory slots, Supported Bus Speed 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz, Maximum Memory Up to 64GB,Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz,1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz,PCI 1x PCIe x16 slot (From CPU),Support up to PCIe 4.0 for 11th Gen Intel CPU, Support up to PCIe 3.0 for 10th Gen Intel CPU,1x PCIe 3.0 x1 slots (From B560 chipset),M.2 1, SATA 4. The Internal Connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector,4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports),1x USB 2.0 connector (supports additional 2 USB 2.0 ports),1x 4-pin CPU fan connector,1x 4-pin system fan connector,1x Front panel audio connector,2x System panel connectors,1x Serial port connector,1x Chassis Intrusion connector,1x Clear CMOS jumper, USB Port 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector),6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors),LAN Port 1x Intel® I219V Gigabit LAN controller, Audio Port 1x Front panel audio connector, Q-Flash Plus Button 1x 256 Mb flash, Clear CMOS Button 1x Clear CMOS jumper. The Supported OS Support for Windows® 10 64-bit.MSI B560M PRO-E DDR4 Intel 10th/11th Gen Micro ATX Motherboard 03 years warranty.
