| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | H310M PRO-VDH Plus |
| General Information | ||
| Model | H310M PRO-VDH PLUS | |
| Brand | MSI | |
| Supported Processor | Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron Processors | |
| Chipset | Intel H310 Chipset | |
| Socket | LGA 1151 | |
| Form Factor | m-ATX | |
| Memory Information | ||
| Memory Type | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 2 x DIMMs, up to 2666MHz | |
| Supported Bus Speed | 2666/ 2400/ 2133 MHz | |
| Maximum Memory | 32 GB | |
| Graphics Information | ||
| Graphics | 1 x PCI-E 3.0 x16 slot | |
| Expansion Slots | ||
| PCI | 2 x PCI-E x1 slots | |
| Storage Information | ||
| SATA | 4 x SATA 6Gb/s | |
| Connector Information | ||
| Internal Connectors | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x Clear CMOS jumper
2 x Front panel connectors
1 x Serial port connector
1 x Chassis Intrusion connector
1 x Front panel audio connector
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector |
|
| Port Information | ||
| USB Port | 4 x USB 3.1(Gen1) + 6 x USB 2.0 | |
| HDMI Port | 1 x HDMI Port | |
| VGA Port | 1 x VGA Port | |
| DVI-D Port | 1 x DVI-D port | |
| LAN Port | Realtek 8111H Gigabit LAN | |
| Audio Jack | 8-Channel(7.1) HD Audio with Audio Boost | |
| Operating System | ||
| Supported OS | Windows 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |

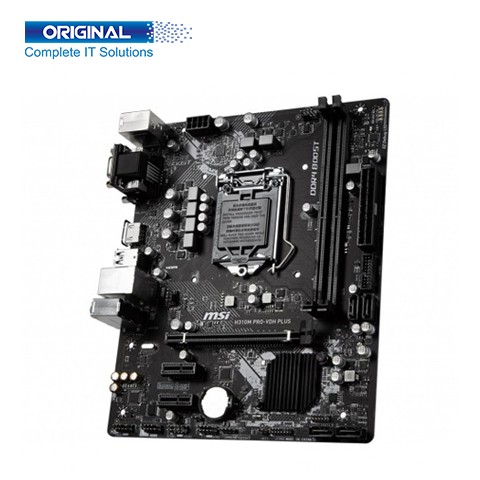

MSI H310M PRO-VDH PLUS 9th/8th Gen Micro ATX Motherboard is loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer or enthusiast. MSI MSI H310M PRO-VDH PLUS Motherboard features the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI H310M PRO-VDH PLUS 9th Gen Micro ATX Motherboard. Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron Processors. Intel H310 Chipset. Socket LGA 1151. Form Factor m-ATX. MSI H310M PRO-VDH PLUS 9th/8th Gen Motherboard Memory Types DDR4, Dual-channel, 2 x DIMMs Slot, up to 2666MHz. Supported Memory Bus Speed 2666/ 2400/ 2133 MHz. Maximum Memory 32 GB. Graphics 1 x PCI-E 3.0 x16 slot. Expansion Slots 2 x PCI-E x1 slots. Storage has 4 x SATA 6Gb/s. It has Internal Connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 2 10Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 2-pin system fan connectors, 1x Front panel audio connectors, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Tuning Controller connector, 1x TBT connector (supports RTD3). It has included USB Port 4 x USB 3.1(Gen1) + 6 x USB 2.0, 1 x HDMI, 1 x VGA Port, 1 x DVI-D port, LAN Port Realtek 8111H Gigabit LAN, Audio Jack 8-Channel(7.1) HD Audio with Audio Boost. Supported Operating System Windows 10 64-bit. The MSI H310M PRO-VDH PLUS 9th/8th Gen Micro ATX Motherboard has 03 years warranty.
