| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | H410M PRO-E |
| General Information | ||
| Model | MSI H410M PRO-E | |
| Brand | MSI | |
| Supported Processor | Supports Intel 10th Gen Pentium Gold / Celeron processors | |
| Chipset | Intel® H410 Chipset | |
| Socket | LGA 1200 | |
| Form Factor | * Micro-ATX Form Factor * 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 2x DDR4 memory slots | |
| Supported Bus Speed | * Supports up to DDR4 2933 MHz * Intel® Core™ i5 and below * Supports up to DDR4 2666 MHz |
|
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | * 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 * @60Hz, 1920x1200 @60Hz * 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz * 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz |
|
| Expansion Slots | ||
| PCI | * 1x PCIe 3.0 x16 slot (From CPU) * 1x PCIe 3.0 x1 slot (From PCH) |
|
| Storage Information | ||
| SATA | 4x SATA 6Gb/s ports | |
| Connector Information | ||
| Internal Connectors | * 1x 24-pin ATX main power connector * 1x 8-pin ATX 12V power connector * 4x SATA 6Gb/s connectors * 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) * 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) * 1x 4-pin CPU fan connector * 1x 4-pin system fan connector * 1x Front panel audio connector * 2x System panel connectors * 1x Serial port connector * 1x TPM module connector * 1x Chassis Intrusion connector * 1x Clear CMOS jumper * 4x EZ Debug LED |
|
| Port Information | ||
| VGA Port | 1x VGA Port | |
| USB Port | * 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) * 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
|
| HDMI Port | 1x HDMI 1.4 port (Resolution of 4096x2160 @30Hz) | |
| LAN Port | 1x Realtek R1111H Gigabit LAN controller | |
| Audio Port | * Realtek® ALC897 Codec * 7.1-Channel High Definition Audio |
|
| DVI-D Port | 1x DVI-D port (Resolution of 1920x1200 @60Hz) | |
| Operating Systems | ||
| Supported OS | Support for Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years | |

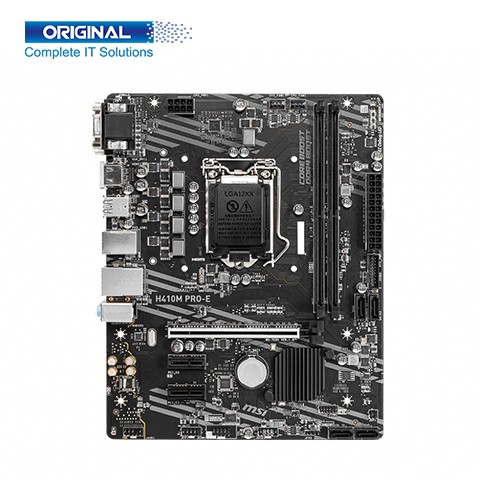

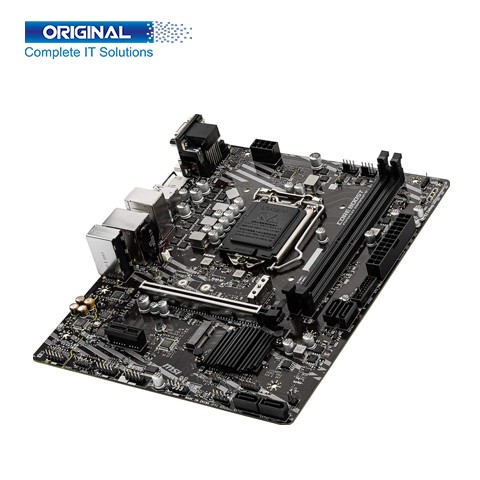

MSI H410M PRO-E DDR4 10th Gen Micro-ATX Motherboard helps users work smarter by delivering an efficient and productive experience. It is MSI PRO-E Motherboard that let you manage speeds and temperatures for all your system and CPU fans.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI H410M PRO-E DDR4 10th Gen Micro-ATX Motherboard comes with Supports 10th Gen Intel Core and Pentium Gold/ Celeron processors, Intel H410 Chipset with ATX Form Factor, and LGA 1200 socket. MSI H410M PRO-E Intel Motherboard Maximum 64 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed Intel Core i7/ i9: Supports up to DDR4 2933 MHz, Intel Core i5 and below: Supports up to DDR4 2666 MHz, Supports Intel Extreme Memory Profile (XMP). MSI H410M PRO-E Motherboard comes with standard Graphics such as 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz, 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz. H410M PRO-E MSI Motherboard Expansion PCI slot is 1 x PCIe 3.0 x16 slots, 4 x SATA 6 GB/s connectors, also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x front panel audio connector, etc. The MSI H410M PRO-E Motherboard has 4 x USB 3.2 Gen 2 10Gbps, 6x USB 2.0 ports, 1x DisplayPort, etc more. MSI H410M PRO-E 10th gen Motherboard has a 1x Realtek R1111H Gigabit LAN controller, 7.1-Channel High Definition Audio. This MSI H410M PRO-E Motherboard Support for Windows 10 64-bit. You can enjoy an H410M PRO-E Motherboard 03 Years Warranty.
