| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MAG B550M MORTAR |
| General Information | ||
| Model | MSI MAG B550M MORTAR | |
| Brand | MSI | |
| Supported Processor | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B550 Chipset | |
| Socket | AM4 | |
| Form Factor | Micro-ATX | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-channel | |
| Slot | 4x DDR4 memory slots | |
| Supported Bus Speed | * Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
* Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 Support HDCP 1.4 & 2.3
* 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
* Maximum shared memory of 16 GB |
|
| Expansion Slots | ||
| PCI | * 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1
* 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2
* 2x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | * 2x M.2 slots (Key M)
* M2_1 slot (from AMD processor)
* M2_2 slot (from AMD B550 chipset) |
|
| SATA | * 6x SATA 6Gb/s ports
* Supports SATA 6Gb/s |
|
| RAID | * AMD B550 Chipset
* Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Connector Information | ||
| Internal Connectors | * 1x 24-pin ATX main power connector * 1x 8-pin ATX 12V power connector * 6x SATA 6Gb/s connectors * 2x M.2 slots (M-Key) * 1x USB 3.2 Gen 1 5Gbps Type-C port * 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) * 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) * 1x 4-pin CPU fan connector * 1x 4-pin water-pump fan connector * 3x 4-pin system fan connectors * 1x Front panel audio connector * 2x System panel connectors * 1x Chassis Intrusion connector * 1x 4-pin RGB LED connector * 2x 3-pin RAINBOW LED connectors * 1xTPM module connector * 1x Clear CMOS jumper |
|

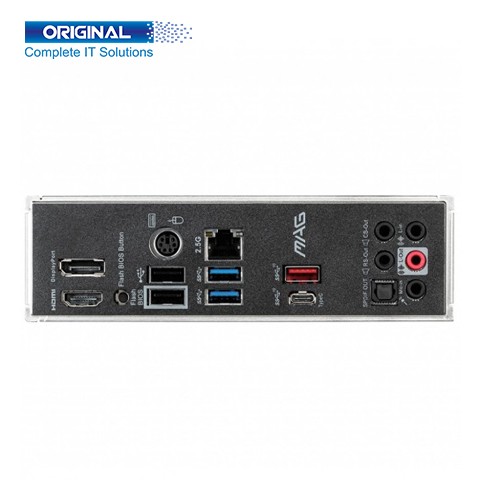

| Port Information | ||
| PS/2 Port | PS/2 Keyboard / Mouse Port | |
| USB Port | * AMD B550 Chipset
* 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
* 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
* AMD Processor
* 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
* 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| HDMI Port | 1x HDMI | |
| Display Port | 1x DisplayPort | |
| LAN Port | 1x Realtek® RTL8125B 2.5Gbps LAN controller | |
| Audio Port | * Realtek® ALC1200/ALC1220P Codec
* 7.1-Channel High Definition Audio
* Supports S/PDIF output |
|
| BIOS Button | Flash BIOS Button | |
| Optical Drive | Optical S/PDIF OUT | |
| Operating Systems | ||
| Supported OS | Support for Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
MSI MAG B550M MORTAR AMD Micro ATX Gaming Motherboard comes with AMD Socket AM4, AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors, Chipset AMD B550, AM4 Socket with ATX Form Factor. MSI MAG B550M MORTAR AMD Gaming Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI MAG B550M MORTAR AMD Micro ATX Gaming Motherboard comes with standard Graphics such as a 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 Support HDCP 1.4 & 2.3, 1x Display Port supports a maximum resolution of the motherboard 4096x2160 @60Hz 1 Maximum shared memory of 16 GB. MAG B550M MORTAR MSI Motherboard Expansion PCI Slots is 1 x PCI Express x16 slot, 2x PCIe 3.0 x1 slots, 6 x SATA 6 GB/s connectors, and 2 x M.2 connector, Support for RAID 0, RAID 1, and RAID 10, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x front panel audio connector, etc. The MSI MAG B550M MORTAR Motherboard has 2 x USB 3.2 Gen 2 10Gbps, 6x USB 2.0 ports, 1 x HDMI port maximum resolution of 4096x2160 @24Hz, 1 x Realtek 8125B 2.5Gbps LAN Controller, Moreover, this motherboard High Definition Audio with Supports Optical S/PDIF output. This MSI MAG B550M MORTAR Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
