| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MAG B660M BAZOOKA |
| General Information | ||
| Model | MSI MAG B660M BAZOOKA | |
| Brand | MSI | |
| Supported Processor | Supports 12th/ 13th Gen Intel Core Processors | |
| Chipset | Intel B660 Chipset | |
| Socket | LGA1700 | |
| Form Factor | * Micro-ATX Form Factor
* 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 4x DDR4 | |
| Supported Bus Speed | - Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1 |
|
| Expansion Slots | ||
| PCI | - 2x PCIe x16 slots - PCI_E1 slot (From CPU) - Supports PCIe 4.0 x16 - PCI_E3 slot (From B660 Chipset) - Supports PCIe 3.0 x4 - 1x PCIe 3.0 x1 slot (From B660 chipset) |
|
| Storage Information | ||
| M.2 | - 2x M.2 slots (Key M) - M2_1 slot (From CPU) - M2_2 slot (From B660 Chipset) |
|
| SATA | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)
Supports SATA 6Gb/s |
|
| RAID | Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | - 1x 24-pin ATX main power connector - 1x 8-pin ATX 12V power connector - 1x 4-pin ATX 12V power connector - 4x SATA 6Gb/s connectors - 2x M.2 slots (M-Key) - 1x USB 3.2 Gen 1 5Gbps Type-C port - 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) - 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 1x 4-pin CPU fan connector - 1x 4-pin water-pump fan connector - 2x 4-pin system fan connectors - 1x Front panel audio connector - 2x System panel connectors - 1x Chassis Intrusion connector - 1x TPM module connector - 1x Clear CMOS jumper - 1x TBT connector (supports RTD3) - 1x Serial port - 1x Tuning Controller connector |
|
| Port Information | ||
| PS/2 Port | PS/2 Keyboard / Mouse Port | |
| HDMI Port | 1x HDMI Port | |
| USB Port | - 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
- 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) |
|
| Display Port | 1x Display Port | |
| LAN Port | 1x Realtek® 8125BG 2.5Gbps LAN controller | |
| Audio Port | 7.1-Channel High Definition Audio | |
| Others Information | ||
| LED FEATURE | 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
|
| Operating Systems | ||
| Supported OS | Microsoft Windows 10 | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

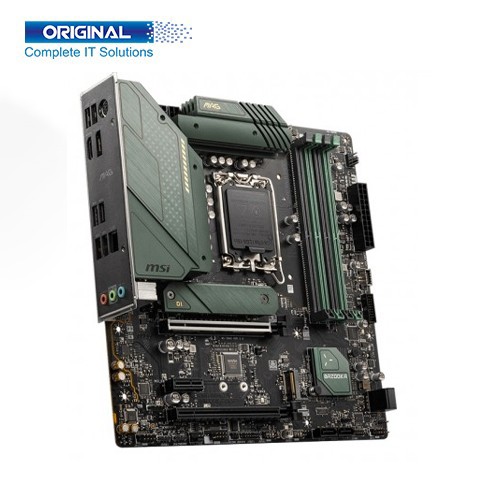

MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard. The MSI MAG Motherboard With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPUs run at full speed with MSI motherboards.
MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard. The Model is MSI MAG B660M BAZOOKA, and Brand MSI, Supported Processor Supports 12th/ 13th Gen Intel Core Processors, Chipset Intel B660 Chipset, Socket LGA1700, Form Factor * Micro-ATX Form Factor,* 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm), Memory Types DDR4, Channel Dual-Channel, Slot 4x DDR4, Supported Bus Speed - Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR), Max overclocking frequency 1DPC 1R Max speed up to 5333+ MHz, 1DPC 2R Max speed up to 4000+ MHz, 2DPC 1R Max speed up to 4000+ MHz, 2DPC 2R Max speed up to 3600+ MHz, Maximum Memory 128GB, Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1, 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1, PCI - 2x PCIe x16 slots, - PCI_E1 slot (From CPU), - Supports PCIe 4.0 x16,- PCI_E3 slot (From B660 Chipset), - Supports PCIe 3.0 x4, - 1x PCIe 3.0 x1 slot (From B660 chipset), M.2- 2x M.2 slots (Key M), - M2_1 slot (From CPU), - M2_2 slot (From B660 Chipset), SATA 4x SATA 6Gb/s ports (SATA5~8, from 660 Chipset), Supports SATA 6Gb/s, RAID Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for SATA storage devices, Internal Connectors - 1x 24-pin ATX main power connector,- 1x 8-pin ATX 12V power connector, - 1x 4-pin ATX 12V power connector, - 4x SATA 6Gb/s connectors,- 2x M.2 slots (M-Key),- 1x USB 3.2 Gen 1 5Gbps Type-C port, - 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), - 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), - 1x 4-pin CPU fan connector, - 1x 4-pin water-pump fan connector, - 2x 4-pin system fan connectors, - 1x Front panel audio connector, - 2x System panel connectors,- 1x Chassis Intrusion connector, - 1x TPM module connector, - 1x Clear CMOS jumper, - 1x TBT connector (supports RTD3), - 1x Serial port, - 1x Tuning Controller connector, PS/2 Port PS/2 Keyboard / Mouse Port, HDMI Port 1x HDMI Port, USB Port- 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel, - 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector), - 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors), Display Port 1x Display Port, LAN Port 1x Realtek® 8125BG 2.5Gbps LAN controller, Audio Port 7.1-Channel High Definition Audio, LED FEATURE 1x 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors, 4x EZ Debug LED. The MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard has a 03 Years Warranty.
