| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MAG B760 TOMAHAWK WIFI |
| General Information | ||
| Model | MAG B760 TOMAHAWK WIFI | |
| Brand | MSI | |
| Supported Processor | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors | |
| Chipset | INTEL B760 | |
| Socket | LGA1700 | |
| Form Factor | ATX, 243.84mmx304.8mm | |
| Memory Information | ||
| Memory Type | DDR5 |
|
| Channel | Dual-Channel | |
| Slot | 4x DDR5 | |
| Supported Bus Speed | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: •1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz |
|
| Maximum Memory | Capacity 192GB | |
| Graphics Information | ||
| Graphics | * 1x HDMI™ * Support HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz* * 1x DisplayPort * Support DP 1.4, full resolution of 8K 60Hz* |
|
| Expansion Slots | ||
| PCI | * 2x PCI-E x16 slot * Supports x16/x4 * 1x PCI-E x1 slot * PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) * PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) * PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
| Storage Information | ||
| M.2 | * 3x M.2 * M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices * M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices * M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
| SATA | 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connector | * 1x Power Connector(ATX_PWR) * 2x Power Connector(CPU_PWR) * 1x CPU Fan * 1x Pump Fan * 5x System Fan * 2x Front Panel (JFP) * 1x Chassis Intrusion (JCI) * 1x Front Audio (JAUD) * 1x TBT connector (JTBT, supports RTD3) * 1x Tuning Controller connector(JDASH) * 2x Addressable V2 RGB LED connector (JARGB_V2) * 2x RGB LED connector(JRGB) * 1x TPM pin header(Support TPM 2.0) * 4x USB 2.0 ports * 2x USB 3.2 Gen1 Type A ports * 1x USB 3.2 Gen2 Type C ports |
|

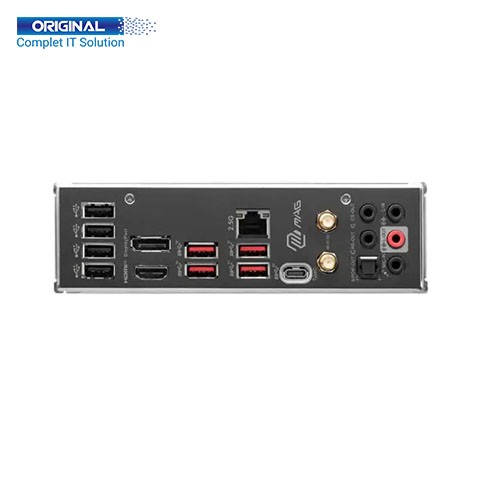

| Port Information | ||
| USB Port | USB 2.0 USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C |
|
| HDMI Port | HDMI™ 2.1 Port | |
| Display Port | DisplayPort 1.4 | |
| LAN Port | 2.5G LAN PortWi-Fi / Bluetooth Antenna | |
| Audio Port | HD Audio Connectors | |
| Optical S/PDIF | Optical S/PDIF OUT | |
| Others Information | ||
| Wireless & Bluetooth | Intel® Wi-Fi 6E * The Wireless module is pre-installed in the M.2 (Key-E) slot * Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps * Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. * Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
|
| Operating System | ||
| Supported OS | * Support for Windows® 11 64-bit, * Support for Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

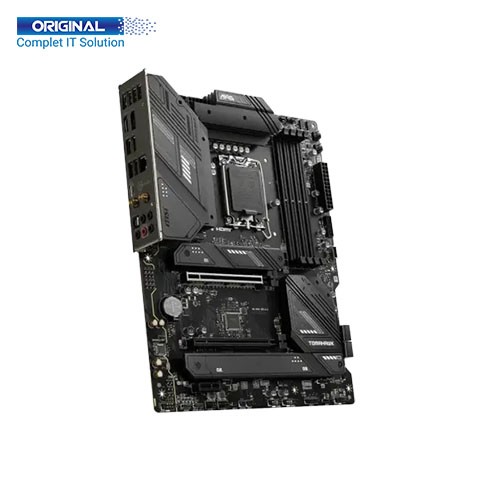

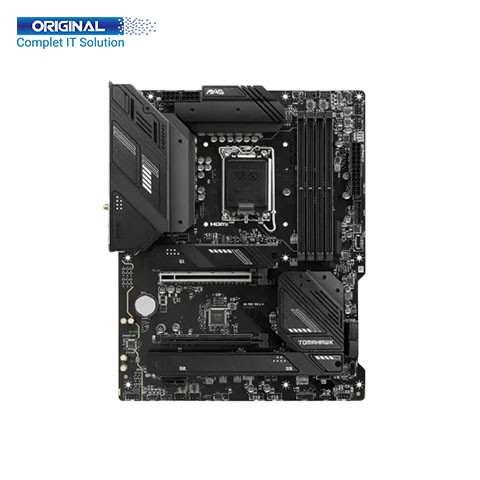

MSI MAG B760 TOMAHAWK WIFI DDR5 13th & 12th Gen ATX Motherboard. The Motherboard MAG series fights alongside gamers in pursuit of honor. MSI MAG B760 Motherboard added military-inspired elements to these gaming products.
MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard. It is a model MAG B760 TOMAHAWK WIFI and the Brand is MSI. B760 TOMHAWK WIFI Motherboard supports 13th Gen & 12th Gen Pentium Gold, and Celeron Processors. CHIPSET INTEL B760, Socket LGA 1700. Memory Type DDR5, and Maximum Memory Capacity 192GB. Supportted Bus Sepeed Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz. Overclocking frequency: 1DPC 1R Max speeds up to 7000+ MHz, 1DPC 2R Max speed up to 6600+ MHz, 2DPC 1R Max speed up to 6400+ MHz, 2DPC 2R Max speed up to 5600+ MHz. GRAPHICS 1x HDMI, Support HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz, 1x DisplayPort, Support DP 1.4, the maximum resolution of 8K 60Hz. EXPANSION SLOT 2x PCI-E x16, Supports x16/x4, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16, PCI_E2 Gen PCIe 3.0 supports up to x4, PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset), The MSI MAG B760 TOMAHAWK WIFI STORAGE 3x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4. supports 2280/2260/2242 devices 4x SATA 6G. Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. USB 4x USB 2.0, 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Front), 4x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front), 1x USB 3.2 Gen2x2 Type C (Rear), LAN Realtek 2.5Gbps LAN. BLUETOOTH Intel Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, and Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax. Supports Bluetooth 5.3, FIPS, and FISMA. Wi-Fi 6E 6GHz and Bluetooth 5.3 mey depending on every country’s regulations will be ready for Windows 11 and Windows 10 build 21H1. AUDIO Realtek ALC897 Codec, 7.1-Channel USB High-Performance Audio Supports S/PDIF output. LED FEATURE 4x EZ Debug LED. BACK PANEL PORTS USB 2.0, and DisplayPort 1.4, USB 3.2 Gen 2 10Gbps Type-A. 2.5G LAN Port, Wi-Fi Antenna HD. This Motherboard Audio Connectors HDMI 2.1 Port, USB 3.2 Gen 2x2 20Gbps Type-C, Optical S/PDIF OUT. The Motherboard PCB DIMENSION ATX 243.84mmx304.8mm. MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard has 3 years warranty.
