| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MAG X570 TOMAHAWK |
| General Information | ||
| Model | MSI MAG X570 TOMAHAWK WIFI | |
| Brand | MSI | |
| Supported Processor | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation, Processors | |
| Chipset | AMD X570 Chipset | |
| Socket | AMD Socket AM4 | |
| Form Factor | ATX | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-channel | |
| Slot | 4x DDR4 memory slots | |
| Supported Bus Speed | * 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE * 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz 1 2 Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3 |
|
| Expansion Slots | ||
| PCI | * 1x PCIe 4.0/3.0 x16 slot (PCI_E1) * 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode * 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode * Ryzen™ 4000 G-Series support PCIe 3.0 x16 mode * Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ * Graphics support PCIe 3.0 x8 mode * 1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode * 2x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | * 2x M.2 slots (Key M) 1 * * M2_1 slot (from AMD® Processor)M2_2 slot (from AMD® X570 Chipset) |
|
| SATA | * 6x SATA 6Gb/s ports (from AMD® X570 Chipset) * Supports SATA 6Gb/s |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1x 24-pin ATX main power connector * 1x 8-pin ATX 12V power connector * 1x 4-pin ATX 12V power connector * 6x SATA 6Gb/s connectors * 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) * 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) * 1x USB 3.2 Gen 2 10Gbps Type-C Port * 1x 4-pin CPU fan connector * 1x 4-pin water-pump connector * 4x 4-pin system fan connectors * 1x Front panel audio connector * 2x System panel connectors * 1x TPM module connector * 1x Serial port connector * 1x Clear CMOS jumper * 1x Chassis Intrusion connector * 2x 4-pin RGB LED connectors * 2x 3-pin RAINBOW LED connectors * 4x EZ Debug LEDs |
|

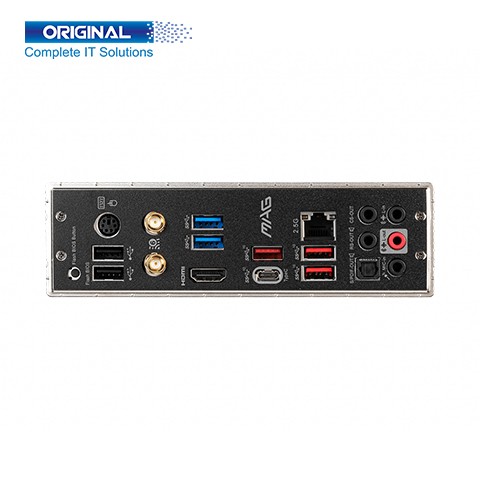

| Port Information | ||
| PS/2 Port | PS/2 Keyboard / Mouse Port | |
| USB Port | * AMD® X570 Chipset * 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) * 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors * 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) * AMD® Processor * 2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel * 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| HDMI Port | 1 x HDMI | |
| LAN Port | 1 x Realtek 8125B 2.5Gbps LAN Controller | |
| Audio Port | * Realtek® ALC1200 Codec * 7.1-Channel High Definition Audio * Supports Optical S/PDIF output |
|
| BIOS Button | Flash BIOS button | |
| Optical Drive | 1x Optical S/PDIF out | |
| Special Features | ||
| Warless Lan & Bluetooth | * Intel® Wi-Fi 6 AX200 * Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps * Supports Bluetooth® 5.1 * The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot |
|
| Operating Systems | ||
| Supported OS | Support for Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
MSI MAG X570 TOMAHAWK WiFi AMD ATX Motherboard helps users work smarter by delivering an efficient and productive experience. It is MSI MAG X570 TOMAHAWK Motherboard that let you manage speeds and temperatures for all your system and CPU fans.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI MAG X570 TOMAHAWK WiFi AMD ATX Motherboard comes with AMD Socket AM4, AMD Socket AM4, support for AMD Ryzen 5000 Series 2nd/ 3rd Generation AMD Ryzen processors, Chipset AMD X570, AM4 Socket with ATX Form Factor. MAG X570 TOMAHAWK WIFI MSI Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by this motherboard A-XMP OC MODE, 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE. The MSI MAG X570 TOMAHAWK Motherboard comes with standard Graphics such as a 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz 1 2 it Support for HDMI 1.4 version, HDCP 1.4 & 2.3. MAG X570 TOMAHAWK WIFI MSI Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, running at x16, 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode, 2nd Gen AMD Ryzen support PCIe 3.0x16 model, Ryzen 4000 G-Series support PCIe 3.0 x16 mode, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon, 6 x SATA 6 GB/s connectors and 2 x M.2 connector, Support for RAID 0, RAID 1, and RAID 10 also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x front panel audio connector, etc. MSI MAG X570 TOMAHAWK WIFI Motherboard has 2 x USB 3.2 Gen 2 10Gbps, 6x USB 2.0 ports, 1 x HDMI port, 1 x Realtek 8125B 2.5Gbps LAN Controller, and High Definition Audio with Supports Optical S/PDIF output, Wireless facility has Intel Wi-Fi 6 AX200, Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps, Supports Bluetooth 5.1. This MSI MAG X570 TOMAHAWK WiFi AMD ATX Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
