| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MEG Z590 GODLIKE |
| General Information | ||
| Model | MSI MEG Z590 GODLIKE | |
| Brand | MSI | |
| Supported Processor | Supports 10th Gen, 11th Gen Intel Core , Pentium Gold and Celeron processors | |
| Chipset | Intel Z590 Chipset | |
| Socket | LGA1200 | |
| Form Factor | * 12 in. x 10.9 in. (30.5 cm x 27.7 cm) * E-ATX Form Factor |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 4x DDR4 memory slots | |
| Supported Bus Speed | * Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) * Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | * Supports 2-Way NVIDIA SLI Technology * Supports 3-Way AMD CrossFire Technology |
|
| Expansion Slots | ||
| PCI | * 3x PCIe x16 slots * Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, * x8+(x4+x4)/x0/x4 * PCI_E1 & PCI_E2 slots (From CPU) * Support up to PCIe 4.0 for 11th Gen Intel® CPU * Support up to PCIe 3.0 for 10th Gen Intel® CPU * PCI_E3 slot (From Z590 chipset) 1 * Supports up to PCIe 3.0 |
|
| Storage Information | ||
| M.2 | * 4x M.2 slots (Key M)
* M2_1 (from CPU)
* Available only on 11th Gen Intel® CPU
* M2_2, M2_3
* M2_4 slots (from Z590 chipset)
* M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage device
* M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
* M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices |
|
| SATA | 6x SATA 6Gb/s ports (from Z590 chipset) | |
| RAID | * Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices * Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
|
| Connector Information | ||
| Internal Connectors | * 1x 24-pin ATX main power connector * 2x 8-pin ATX 12V power connectors * 1x 6-pin ATX PCIE power connector * 6x SATA 6Gb/s connectors * 4x M.2 slots (M-Key) * 1x USB 3.2 Gen 2 10Gbps Type-C port * 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) * 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) * 1x 4-pin CPU fan connector * 1x 4-pin water-pump fan connector * 8x 4-pin system fan connectors * 1x 3-pin Water Flow connector * 1x Front panel audio connector * 2x System panel connectors * 1x Chassis intrusion connector * 2x 2-pin Thermal sensors connectors * 1x TPM module connector * 1x Tuning controller connector |
|
| Port Information | ||
| USB Port | * 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel and 1 Type-C internal connector) * 2x USB 2.0 ports are available through the internal USB 2.0 connector * 2x USB 2.0 ports are available through the internal USB 2.0 connector * 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the back panel, 4 ports are available |
|
| LAN Port | * 1x Aquantia® AQC107 10Gbps LAN controller * 1x Intel® I225-V 2.5Gbps LAN controller |
|
| Audio Port | * 7.1-Channel High Definition Audio * Supports S/PDIF output |
|
| Special Features | ||
| WIFI | * Intel WiFi-6E AX210: * he Wireless module is pre-installed in the M.2 (Key-E) slot * Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps * Supports 802.11a/ b/ g/ n/ ac/ ax * Supports Bluetooth 5.2 , FIPS, FISMA |
|
| Operating Systems | ||
| Supported OS | Support for Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 3 Years | |

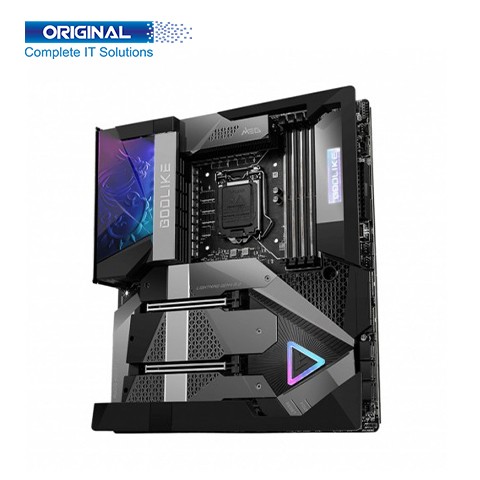

MSI MEG Z590 GODLIKE 11th Gen Intel Gaming Motherboard is loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or enthusiast. MSI extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPUs run at full speed with MSI motherboards.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI MEG Z590 GODLIKE 11th Gen Intel Gaming Motherboard comes with Supports 10th Gen, 11th Gen Intel Core, Pentium Gold and Celeron processors, Intel Z590 Chipset with 30.5 cm x 27.7 cm ATX Form Factor and LGA 1200 socket. This MSI MPG Z590 Gaming Plus Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR), Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR). This MSI MPG Z590 Gaming Plus Motherboard comes with standard Graphics such as Supports 2-Way NVIDIA SLI Technology, Supports 3-Way AMD CrossFire Technology. This MSI MPG Z590 Gaming Plus Motherboard Expansion PCI Slots is 3x PCIe x16 slots, Supports up to PCIe 4.0 for 11th Gen Intel® CPU, 6 x SATA 6 GB/s connectors, 4 x M.2 slots also various Internal Connectors such as 1 x 24-pin ATX main power connector,1 x 4 pin CPU fan header, 1 x front panel audio connector, etc. This MSI MPG Z590 Gaming Plus Motherboard has 2 x USB 3.2 Gen 2 10Gbps, 6x USB 2.0 ports, and 1x DisplayPort, 7.1-Channel High Definition Audio. The MSI MEG Z590 GODLIKE 11th Gen Intel Gaming Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
