| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MPG X570 Gaming Pro Carbon WiFi |
| General Information | ||

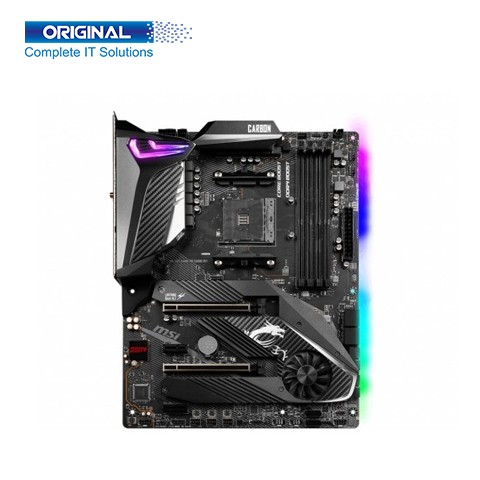

| Model | MSI MPG X570 Gaming Pro Carbon WiFi | |
| Brand | MSI | |
| Supported Processor | Supports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket | |
| Chipset | AMD® X570 Chipset | |
| Socket | AM4 | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.4 cm x 24.3 cm) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual channel memory architecture | |
| Slot | 4x DDR4 memory slots | |
| Supported Bus Speed | 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE |
|
| Maximum Memory | support up to 128GB | |
| Graphics Information | ||
| Graphics | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz Supports 2-Way AMD CrossFire Technology |
|
| Expansion Slots | ||
| PCI | 1x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode Ryzen™ 4000 G-Series support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode 1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode 2x PCIe 3.0 x1 slots |
|
| Storage Information | ||
| M.2 | 2x M.2 slots (Key M)1 | |
| SATA | 4x SATA 6Gb/s ports(SATA1-SATA4) | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 | |
| Connector Information | ||
| Internal Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Clear CMOS jumper 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR connector 1x 2-pin LED Demo Connect 4x EZ Debug LEDs |
|

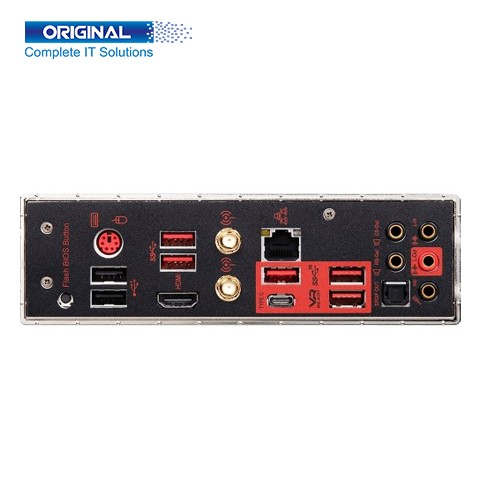

| Port Information | ||
| PS/2 Port | Keyboard / Mouse | |
| USB Port | 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panell
4x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) |
|
| HDMI Port | 1x HDMI | |
| LAN Port | 1x Intel® I211AT Gigabit LAN controller | |
| Audio Port | 7.1-Channel High Definition Audio
Supports Optical S/PDIF output |
|
| BIOS Button | Flash BIOS Button | |
| S/PDIF-Out | Optical S/PDIF out | |
| Special Features | ||
| WIFI | The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth® 5.1 |
|
| Operating Systems | ||
| Supported OS | Support for Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
MSI MPG X570 Gaming Pro Carbon WiFi AMD Motherboard helps users work smarter by delivering an efficient and productive experience. It is MSI MPG X570 Gaming Pro Motherboard that let you manage speeds and temperatures for all your system and CPU fans.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
MSI MPG X570 Gaming Pro Carbon WiFi AMD Motherboard comes with AMD, It Supports AMD Ryzen 5000 Series/ 2nd and 3rd Gen AMD Ryzen / Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processor. MSI MPG X570 Gaming Pro Carbon Motherboard Chipset is AMD X570, AM4 Socket with 30.4 cm x 24.3 cm Micro ATX Form Factor. MPG X570 Gaming Pro Carbon WiFi MSI Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, Moreover, 2667/ 2800 / 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266 /4400 Mhz by A-XMP OC MODE, 1st and 2nd Gen AMD Ryzen™, 2nd Gen AMD Ryzen™ Processors with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800/2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE. MSI MPG X570 Gaming Pro Carbon Motherboard comes with standard Graphics such as 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz, and Supports 2-Way AMD CrossFire Technology. MSI MPG X570 Gaming Pro Carbon WiFi AMD Motherboard Expansion PCI Slots is 1 x PCIe 3.0 x16 slot, 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode, 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode, 2 x M.2 slots, supports RAID 0, 4 x SATA 6 GB/s connectors, RAID 1 and RAID 10 for SATA storage devices also various connectors such as 1 x 24-pin ATX main power connector, 1 x 4 pin CPU fan header, 1 x front panel audio connector, 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector), etc. MPG X570 Gaming Pro Carbon WiFi MSI Motherboard has 6x USB 2.0 ports, 1x Intel® I211AT Gigabit LAN controller, and 7.1-Channel High Definition Audio. The MSI MPG X570 Gaming Pro Carbon WiFi AMD Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
