| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | MSI |
| Product Code | : | MPG Z690 CARBON WIFI |
| General Information | ||
| Model | MPG Z690 CARBON WIFI |
|
| Brand | MSI | |
| Supported Processor | Supports 12th Gen Intel Core, Pentium Gold, and Celeron Processors | |
| Chipset | Intel® Z690 Chipset | |
| Socket | LGA1700 | |
| Form Factor | ATX | |
| Memory Information | ||
| Memory Types | DDR5 |
|
| Channel | Dual-Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5600+ MHz |
|
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
|
| Expansion Slots | ||
| PCI | * 3x PCIe x16 slots * PCI_E1 & PCI_E2 slots (From CPU) Support PCIe 5.0 Support x16/ x0, x8/ x8 * PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4 |
|
| Storage Information | ||
| M.2 | 5x M.2 slots (Key M) |
|
| SATA | 4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset) 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061) |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices |
|
| Connector Information | ||
| Internal Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
|
| Port Information | ||

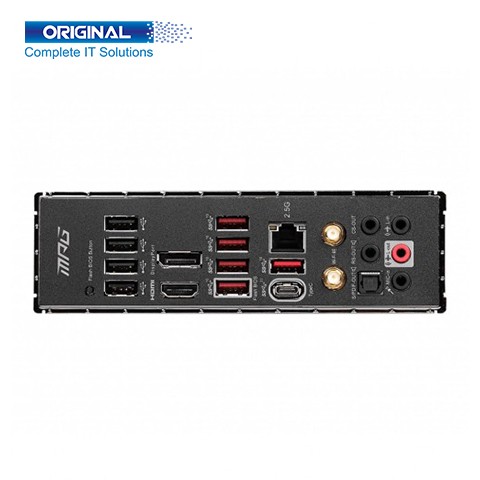

| USB Port | 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4 USB 2.0 ports on the back panel |
|
| HDMI Port | 1x HDMI 2.1 | |
| Display Port | 1x DisplayPort 1.4 | |
| LAN Port | 1x Intel® I225V 2.5Gbps LAN controller | |
| Audio Port | 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Flash BIOS Button | 1x Flash BIOS Button | |
| Other Information | ||
| Wireless & Bluetooth | Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11. Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11. |
|
| Operating System | ||
| Supported OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

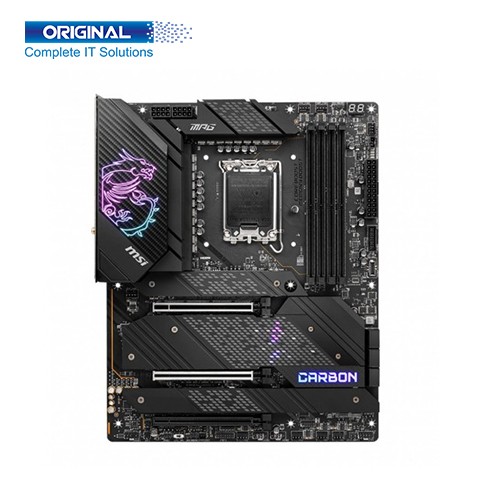

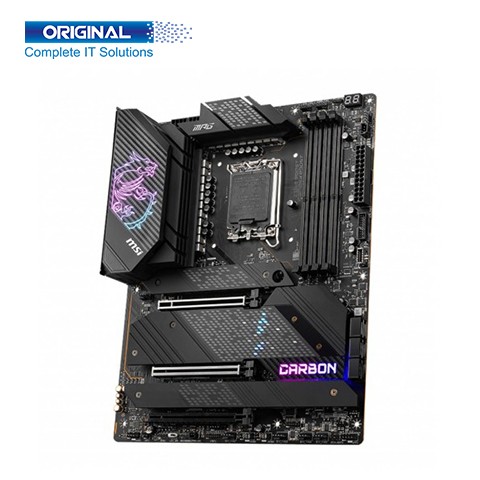

MSI MPG Z690 CARBON WIFI 12th Gen ATX Motherboard is loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast. Buy MSI MPG Z690 CARBON WIFI 12th Gen ATX Motherboard at the Best Price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different types of IT Product information please Click here.
MSI MPG Z690 CARBON WIFI 12th Gen ATX Motherboard. Supports 12th Gen Intel Core i9, Pentium Gold, and Celeron Processors. Intel Z690 Chipset. Socket LGA1700. Form Factor ATX. MSI MPG Z690 CARBON WIFI Motherboard Memory Types DDR5 Dual-Channel. Slot 4 x DIMM. Supported Bus Speed 1DPC 1R Max speed up to 6666+ MHz, 1DPC 2R Max speeds up to 6000+ MHz, 2DPC 1R Max speeds up to 6000+ MHz, 2DPC 2R Max speeds up to 5600+ MHz. Maximum Memory 128 GB. Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz, 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz. PCI 3x PCIe x16 slots. Storage 5x M.2 slots (Key M), 4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset), 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061), Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices. USB Port 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel, 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector), 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector, 4 USB 2.0 ports on the back panel, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x Intel® I225V 2.5Gbps LAN controller, 7.1-Channel High Definition Audio, Supports S/PDIF output. Wireless & Bluetooth Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11. Bluetooth 5.2 will be ready in WIN10 21H1 and Windows 11. Supported Operating System Support for Windows® 11 64-bit, and Windows® 10 64-bit. MSI MPG Z690 CARBON WIFI 12th Gen ATX Motherboard has Three years warranty.
