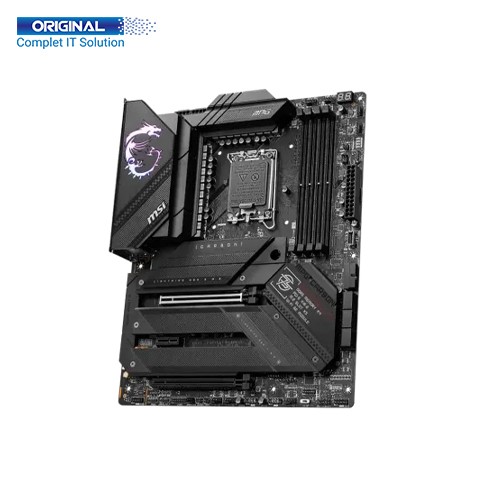

MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard

Description:

MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard

MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard. MSI MPG series Motherboard brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series Motherboard defines the future of gaming fashion.

MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard. It is Model MSI MPG Z790 CARBON, Brand MSI, Supported Processor Supports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors, Chipset INTEL Z790, Socket LGA 1700, Form Factor ATX 243.84mmx304.8mm, Memory Types DDR5, Channel Dual-Channel, Slot 4 x DIMM, Supported Bus Speed Memory Support 7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency:, • 1DPC 1R Max speed up to 7600+ MHz, • 1DPC 2R Max speed up to 6600+ MHz, • 2DPC 1R Max speed up to 6400+ MHz, • 2DPC 2R Max speed up to 5600+ MHz, Maximum Memory 192GB, Graphics 1x HDMI, Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz, PCI 2x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), M.2 5x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices, RAID Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices,Internal Connectors 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen 2x2 Type C ports, USB Port 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front), 6x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Rear), 1x USB 3.2 Gen2x2 Type C (Rear), 1x USB 3.2 Gen2x2 Type C (Front). This MSI Laptop WIRELESS / BLUETOOTH Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3**, FIPS, FISMA, LED FEATURE 1x EZ LED Control switch, 1x 2-Digit Debug Code LED, 4x EZ Debug LED. The MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard has a 3 Years Warranty.
