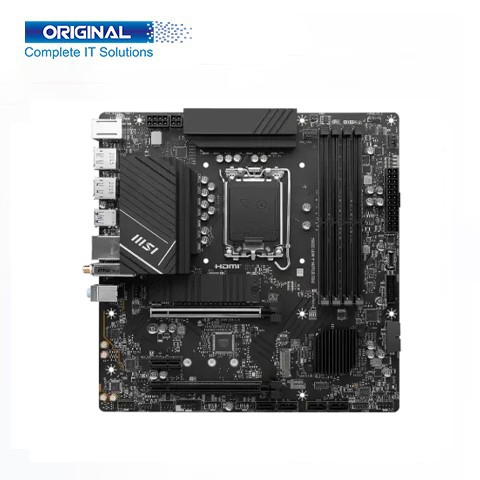

MSI PRO B760M-A WIFI DDR4 12th/13th Gen mATX Motherboard

Description:

MSI PRO B760M-A WIFI DDR4 12th/13th Gen mATX Motherboard

MSI PRO B760M-A WIFI DDR4 12th/13th Gen mATX Motherboard. This PRO Series Motherboard is tailored to professionals from all walks of life. The lineup features impressive performance and high quality while aiming to provide users with an incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series Motherboard to assist you with multitasking and increasing efficiency.

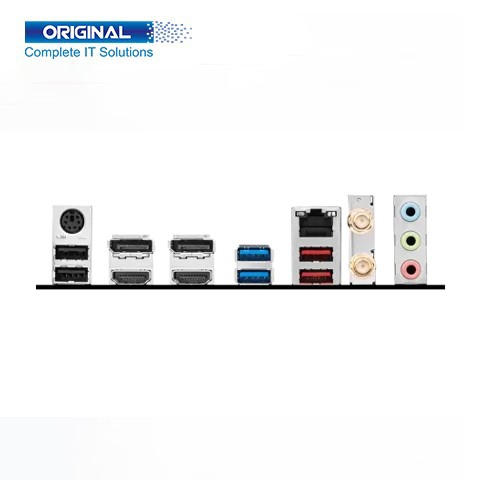

MSI PRO B760M-A WIFI DDR4 12th/13th Gen mATX Motherboard. The Model is MSI PRO B760M-A WIFI DDR4, Brand MSI, Supported ProcessorSupports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors, Chipset INTEL B760, Socket LGA 1700, Form Factor mATX, 243.84mmx243.84mm, Memory Types DDR4, Channel Dual-Channel, Slot 4x DDR4, Supported Bus Speed Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC), Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz, • 1DPC 2R Max speed up to 4800+ MHz, • 2DPC 1R Max speed up to 4400+ MHz, • 2DPC 2R Max speed up to 4000+ MHz, Maximum Memory 128GB. It is Graphics 2x HDMI, Support HDMI™ 2.1, the maximum resolution of 4K 60Hz, 2x DisplayPort, Support DP 1.4, the maximum resolution of 4K 60Hz, PCI 2x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), M.2 2x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, SATA 4x SATA 6G, RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Internal Connectors 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen1 Type C ports. This PS/2 Port 1x Keyboard / Mouse, USB Port 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Rear), 4x USB 3.2 Gen1 Type A (Front), 1x USB 3.2 Gen1 Type C (Front), 2x USB 3.2 Gen2 Type A (Rear), HDMI Port 2x HDMI, Display Port 2x DisplayPort, LAN Port Realtek RTL8125BG 2.5G LAN, Audio Port 1x Audio Connectors, Optical SPDIF Keyboard / Mouse, Wi-Fi / Bluetooth 1x Wi-Fi / Bluetooth, WIRELESS / BLUETOOTH Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA. The MSI PRO B760M-A WIFI DDR4 12th/13th Gen mATX Motherboard has a 03 Years Warranty.
