| Special Price | : | ৳15,500 |
| Regular Price(EMI) | : | ৳17,350 |
| Status | : | In Stock |
| Brand | : | MSI |
| Product Code | : | PRO B760M-P |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | MSI PRO B760M-P | |
| Brand | MSI | |
| Supported Processor | Supports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors | |
| Chipset | INTEL B760 | |
| Socket | LGA 1700 | |
| Form Factor | mATX 243.84mmx243.84mm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual-Channel | |
| Slot | 4x DDR5 | |
| Supported Bus Speed | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz |
|
| Maximum Memory | 192GB | |
| Graphics Information | ||
| Graphics | 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
| Storage Information | ||
| M.2 | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
| SATA | 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| Port Information | ||
| PS/2 Port | 1x Keyboard / Mouse |
|

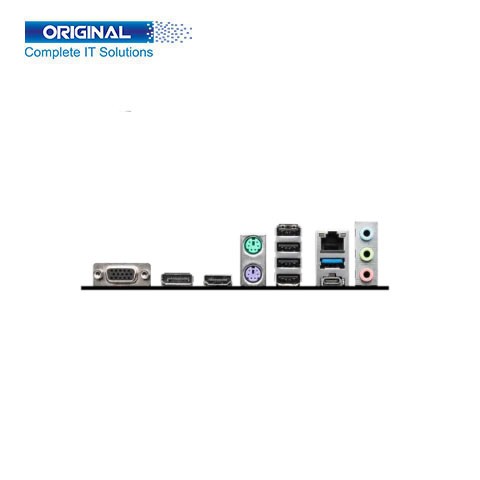

| USB Port | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) |
|
| VGA Port | 1x VGA | |
| HDMI Port | 1x HDMI | |
| Display Port | 1x DisplayPort | |
| LAN Port | Realtek® RTL8111H Gigabit LAN | |
| Audio Port | Realtek® ALC897 Codec
7.1-Channel High-Definition Audio |
|
| Operating System | ||
| Supported OS | Support for Windows® 11 64-bit, |
|
| Warranty | ||
| Warranty | 03 Years Warranty | |
MSI PRO B760M-P DDR5 13th & 12th Gen mATX Motherboard. It comes with four dual-channel RAM slots, and two M.2 slots allowing. The four SATA III ports allow users to create large storage drive arrays for large file libraries.
MSI PRO B760M-P DDR5 13th & 12th Gen mATX Motherboard. It is Motherboard Supported Processor Supports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors, Chipset INTEL B760, Socket LGA 1700, Form Factor mATX, 43.84mmx243.84mm, Memory Types DDR5, Channel Dual-Channel, Slot 4x DDR5, Supported Bus Speed Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz, • 1DPC 2R Max speed up to 6400+ MHz, • 2DPC 1R Max speed up to 6000+ MHz, • 2DPC 2R Max speed up to 5600+ MHz, Maximum Memory 192GB, Graphics 1x HDMI, Support HDMI™ 1.4, maximum resolution of 4K 30Hz*, 1x DisplayPort, Support DP 1.4, maximum resolution of 4K 60Hz*, 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz. This MSI PRO B760M-P Motherboard Expansion Slots PCI 1x PCI-E x16 slot, 2x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset), and M.2 2x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices. The MSI PRO B760M-P DDR5 13th & 12th Gen mATX Motherboard has a 03 Years Warranty.
